Rev
01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
sales@verus-engineering.com

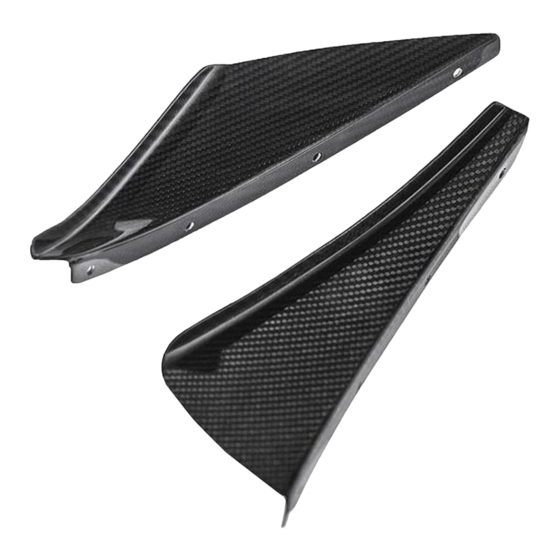

Dive Plane Kit for the ND Miata
Install Manual
Release Date: 2017/11/20
Approvals: E. Hazen, P. Lucas
Document Revisions
Date
Author
2017/11/20
E. Hazen
Author: Eric Hazen
Initial release of install manual
Description
Advertisement
Table of Contents
Related Manuals for Verus Engineering A0105A
Summary of Contents for Verus Engineering A0105A
- Page 1 Install Manual Author: Eric Hazen Release Date: 2017/11/20 Approvals: E. Hazen, P. Lucas Document Revisions Date Author Description 2017/11/20 E. Hazen Initial release of install manual Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list. Verus Engineering sales@verus-engineering.com...
- Page 2 1.2. Difficult ............................<3> 1.3. Time Required ..........................<3> 1.4. Tools Needed ..........................<3> 1.5. Dive Plane Components ......................<3-4> 2. Dive Plane Install ..........................<4-7> Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list. Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 3 (9) M4 x 0.7 Stainless Button Head Cap Screw (BHCS), 12mm Long 1.5.3.2. (9) M4 x 0.7 Nyloc Nut, Stainless 1.5.3.3. (19) M4 Large Diameter Washers, Stainless 1.5.3.4. (2) Paper Install Templates Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list. Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 4 Dive Plane for ND Miata – Install Manual 2. ND Miata Dive Plane Install 2.1. Verus Engineering is not responsible for damage to you or your vehicle by following this manual and/or installing Verus Engineering products. 2.2. We begin by gaining access to rear of the front bumper so that we can place the nuts on the back side of the bumper.
- Page 5 We chose not to use a washer on the outside but there is enough supplied in the kit to do a washer on both sides. Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list. Verus Engineering sales@verus-engineering.com...
- Page 6 2.14. Reinstall everything in reverse order. 2.15. Congratulations on installing the Verus Engineering dive planes for the ND Miata. Enjoy the benefits the dive planes have on front end downforce. 2.16. Please send any questions, comments, concerns, or photos to Verus Engineering via e- mail;...
- Page 7 ENGINEERING | NORTH AMERICA Author: Eric Hazen REVISION: R01 Date: 2017/11/20 Recipients: Public Dive Plane for ND Miata – Install Manual Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list. Verus Engineering sales@verus-engineering.com 3/6/2016...
