Summary of Contents for Lincoln Electric ESSENTIAL 2100

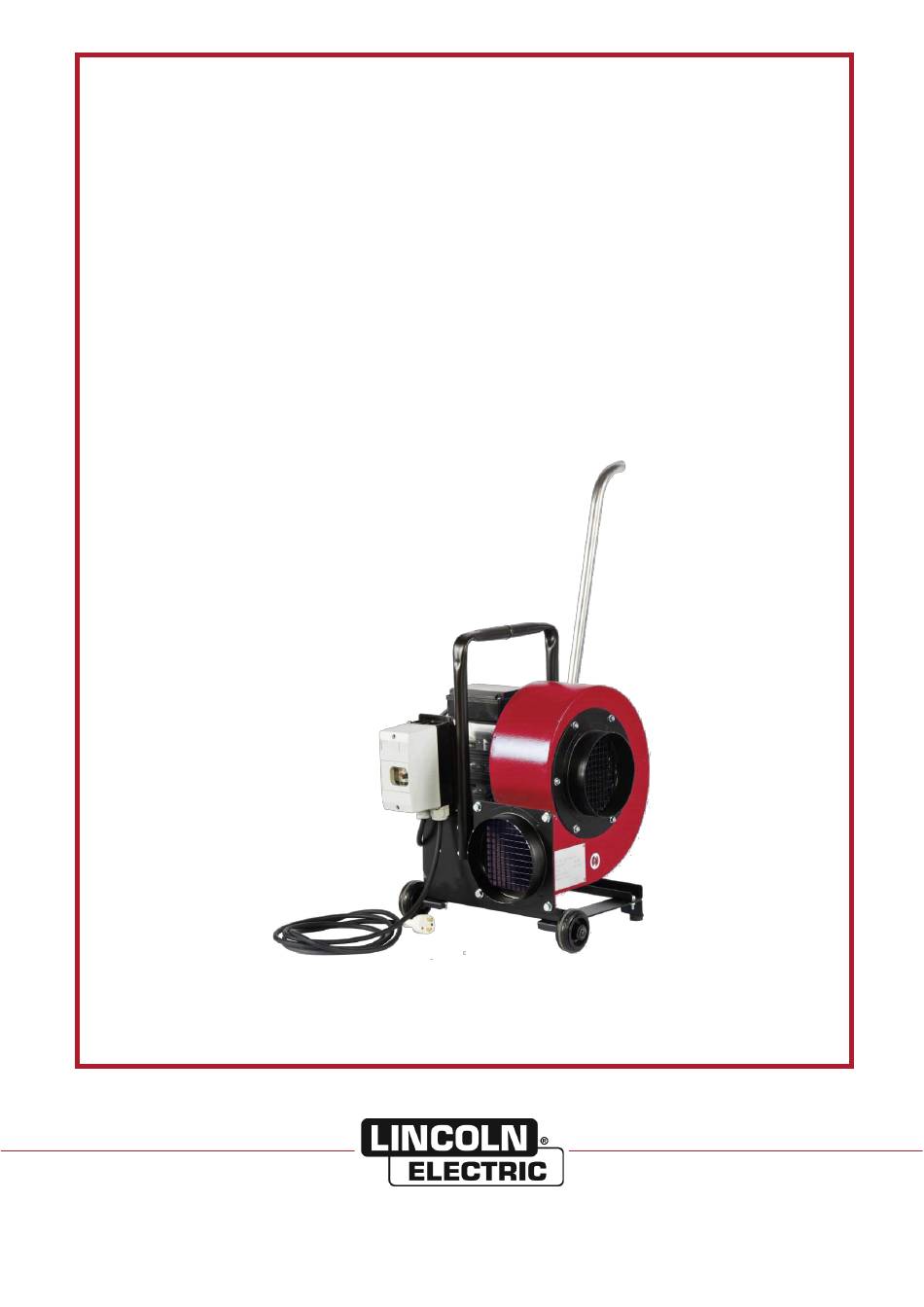

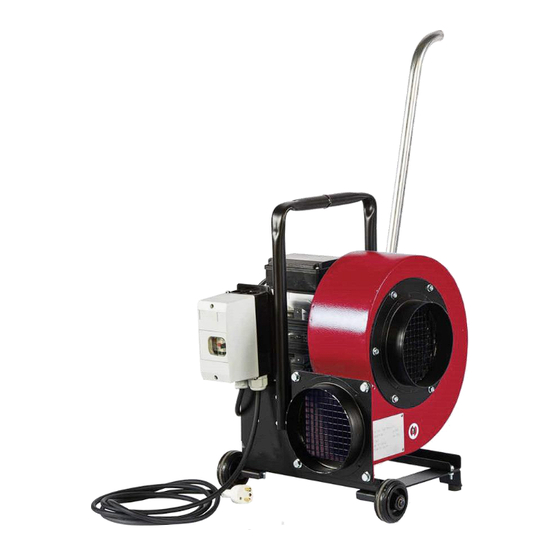

- Page 1 PORTABLE FAN ESSENTIAL 2100 SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE N° W000374014 - W000374015 - W000374016 8695 8592 EDITION : EN Instructions for use REF : REVISION : A DATE : 09-2021 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
8695 8592 CONTENTS A - GENERAL INSTRUCTIONS ......................1 ELECTRICAL SAFETY ......................1 PERSONAL PROTECTION ..................... 2 B - OVERALL DESCRIPTION ......................5 TECHNICAL SPECIFICATIONS ....................5 DELIVERY ..........................5 ELECTRICAL CONNECTIONS ....................6 OPERATING ..........................7 PREREQUISITES ........................7 FAN AIR FLOW CHARACTERISTICS .................. - Page 4 Please hand this document over to your technical department or purchasing department for filing . DESCRIPTION TYPE Essential 2100 fan– 230 V– 1 Phase – 50 Hz W000374016 Essential 2100 fan– 230 V– 3 Phase – 50 Hz W000374015 Essential 2100 fan–...
-
Page 5: A - General Instructions
8695 8592 / A A - GENERAL INSTRUCTIONS ELECTRICAL SAFETY Connection to the mains Before you connect your machine, please make sure that: — The meter, the overintensity protection system and the electrical installation are compatible with its maximum power rating and its supply voltage. —... -
Page 6: Personal Protection
8695 8592 / A PERSONAL PROTECTION Risks of external injury relating to welding operations Whole body — The operator must be clothed and protected to suit the requirements of the job. — Make sure that no part of the bodies of operators and helpers can come in contact with metal pieces or parts that are live or are liable to become live accidentally. - Page 7 8695 8592 / A Specific case of chlorine solvents in welding: (used for cleaning or degreasing). — The fumes from these solvents can be changed into toxic gases when subjected to arc radiation, including from a distance. — Such solvents may therefore not be used in locations where electric arcs occur, if the solvents are not in a sealed enclosure.
- Page 8 IMPORTANT: never remove the protective grilles located at the fan inlet and outlet. Removing them would cancel the CE certification of the fans and LINCOLN ELECTRIC FRANCE would not be liable for any accident. These fans are not intended to be placed in enclosed metal enclosures (see regulations relating to the use of electrical equipment) If such use is necessary, please enquire for a model with an extra low-voltage 48V motor.
-
Page 9: B - Overall Description
B - OVERALL DESCRIPTION For your safety and optimum performance, please read this manual carefully before using the fan. ESSENTIAL 2100 low-pressure centrifugal fans are designed to extract clean air or air with a low dust and fumes content. Field of application... -
Page 10: Electrical Connections
8695 8592 / A ELECTRICAL CONNECTIONS All the operations relating to the installation, such as those for assembly, installation, putting into service and maintenance, are to be carried out by qualified personnel under the control of a responsible technician. Recommendation MAINS VOLTAGE 50HZ Part numbers 230V... -
Page 11: Operating
8695 8592 / A OPERATING The fan is started and stopped manually. That is done via a thermal magnetic circuit breaker fitted on the fan frame. PREREQUISITES Check that the setting of the circuit breaker matches the motor consumption stated on the identification plate. PORTABLE FAN... -
Page 12: Fan Air Flow Characteristics
If that happens, revert two of the three power phases to invert the motor rotation direction. FAN AIR FLOW CHARACTERISTICS ESSENTIAL 2100 – 1,1kW Type : Output : 2100 m³/h at 2500 PA ... -
Page 13: C - Maintenance
C - MAINTENANCE SPARE PARTS Designation Reference Fan ESSENTIAL 2100 - 230 V - 1 Ph - 50 Hz W000374016 Fan ESSENTIAL 2100 - 230 V - 3 Ph - 50 Hz W000374015 Fan ESSENTIAL 2100 - 400 V - 3 Ph - 50 Hz... - Page 14 8695 8592 / A Handle (OPTIONAL in mobile version) Motor Motor support disc Impeller Scroll Circuit breaker support plate Circuit breaker Intake flange with Electrical grille and flat cable connection Discharge flange with grille and flat connection Seat with anti-vibration mounts (not shown) Wheel kit (OPTIONAL in mobile version) PORTABLE FAN...
- Page 15 8695 8592 / A PORTABLE FAN...
-
Page 16: Personal Notes
8695 8592 / A PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com PORTABLE FAN...
