  • Page 1 Operator’s Manual Prism 2400 Stationary Fan ™ For use with machines having Code Numbers: 13120, 13121 Register your machine: www.lincolnelectric.com/register Authorized Service and Distributor Locator: www.lincolnelectric.com/locator Save for future reference Date Purchased Code: (ex: 10859) Serial: (ex: U1060512345) IM10589 | Issue D ate Apr - 22...
  • Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...

  • Page 3: Section A: Warnings

    W117.2. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 2.d. All welders should use the following procedures in order to St. Clair Avenue, Cleveland, Ohio 44117-1199.
  • Page 4 SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”...
  • Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
  • Page 6 PRISM 2400 STATIONARY FAN TABLE OF CONTENTS...

  • Page 7: General Description

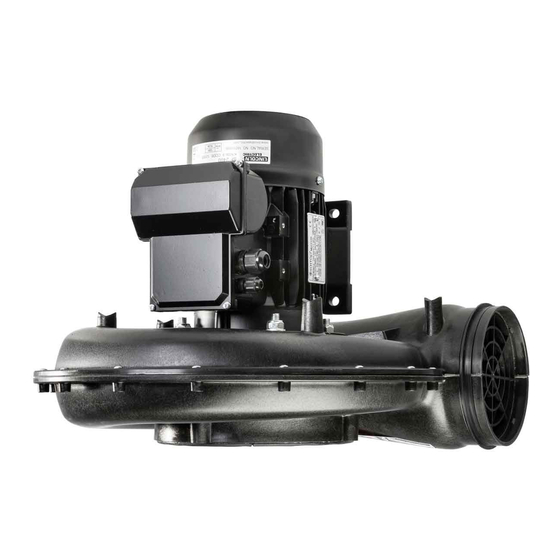

    GENERAL DESCRIPTION TECHNICAL SPECIFICATIONS The Prism 2400 Stationary Fan provides low vacuum, high volume GENERAL most commonly paired with a Lincoln Electric Flexible 10 ft or 13 ft PRODUCT NUMBER K1656-9 K2497-13 spring-balanced, articulated arm. The Telescopic, or Flexible 7 FT arm is a popular choice for small booth or workstation applications.
  • Page 8 PRISM 2400 STATIONARY FAN INSTALLATION FIGURE 2 – PRESSURE DROP FIGURE 3 – PRESSURE DROP PRISM 2400 FAN PRISM 2400 FAN Flexible 10 FT and 13 FT ARMS Telescopic and Flexible 7 FT ARM Vacuum (inches WG) vs. Airflow (CFM) Vacuum (inches WG) vs.
  • Page 9 PRISM 2400 STATIONARY FAN INSTALLATION INSTALLATION OF WALL Standard mounting height is approximately 8 ft., 2 in. from the oor to the top of the wall mounting bracket. See Figure 4 for drilling MOUNTING BRACKETS dimensions. See Figure 5 for recommended mounting methods for installation on various wall types.
  • Page 10 2400 STATIONARY FAN WITH FIGURE 6 FLEXIBLE 10 FT OR 13 FT EXTRACTION ARM K1656-9 Prism 2400 Stationary Fan Includes: • Prism 2400 Stationary Fan • (2) Bolts, M8x1.25, about 0.75” (20mm) long • (2) Bolts, M8x1.25, about 2.5” (65mm) long •...
  • Page 11 PRISM 2400 STATIONARY FAN INSTALLATION Mounting the Prism 2400 Fan Use the (2) 0.75” bolts and the (2) 2.5” bolts with washers supplied with the fan to mount the fan (See Figure 8, Item B) to the rotating hinge (See Figure 8, Item C) as shown. Tighten all mounting bolts rmly to make the seal at the inlet of the fan.
  • Page 12 Fit the small (6” diam.) side of the 6”-8” Reducer (See Figure 10, • Prism 2400 Stationary Fan item B) over the outlet of the Prism 2400 Fan (See Figure 10, item A); • (2) Bolts, M8x1.25, about 0.75” (20mm) long be sure to slide the Reducer all the way over the rubber seal.

  • Page 13: Installing The Starter/Overload Switch

    Route a 120VAC, 1ph, 60hz supply cable into the switch compartment and a power cable between the switch and the Prism 2400 Stationary diagram located in the diagram section of this manual. Set the overload to 10.0A.

  • Page 14: Routine Maintenance

    Use the wall-mounted starter/overload switch or the hood-mounted Every 12 months, have a quali ed technician check the blower fan remote switch (if a lamp kit is installed) to turn on the Prism 2400 and housing for encrusted particles and clean if necessary. Check the Stationary Fan.

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING TROUBLESHOOTING GUIDE Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid ELECTRICAL SHOCK, please observe all safety notes and precautions detailed throughout this manual.
  • Page 16 PRISM 2400 STATIONARY FAN DIAGRAMS WIRING DIAGRAM FOR PRISM 2400 FAN WITH K1494-2 STARTER/OVERLOAD SWITCH INPUT POWER 115V/1 PH/60HZ G N D G N D 230V/1PH/50HZ 1 / L 1 3 / L 2 5 / L 3 STARTER/OVERLOAD SWITCH...
  • Page 17 PRISM 2400 STATIONARY FAN DIAGRAMS WIRING DIAGRAM FOR PRISM 2400 FAN WITH K1669-4 LAMP KIT...
  • Page 18 PRISM 2400 STATIONARY FAN DIAGRAMS WIRING DIAGRAM FOR PRISM 2400 FAN WITH K1750-1 CONVERSION KIT...
  • Page 19 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 20 WARNING Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. electrode with skin or wet clothing. Insulate yourself from work and AVISO DE ground. Spanish PRECAUCION No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el bajo carga con la piel o ropa moja-...
  • Page 21 WARNING Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or Use ventilation or exhaust to guards off. remove fumes from breathing zone. AVISO DE Spanish PRECAUCION Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o piración.
  • Page 22 We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.

This manual is also suitable for:

K1656-9K2497-13
