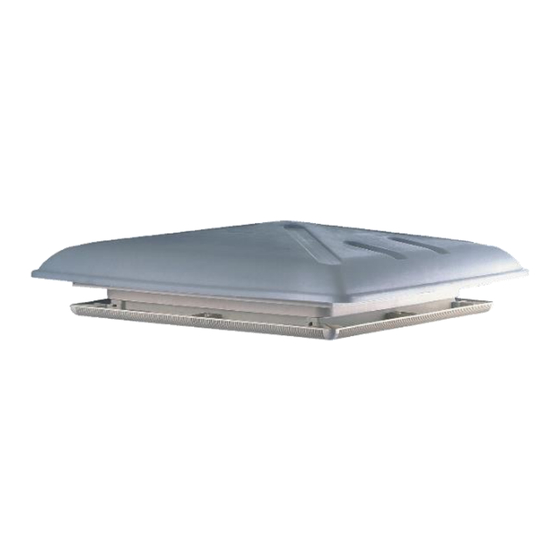

MPK 46P Installation And Operating Instructions

Rooflight with pleated blind and net
for installation in caravans and mobile homes
Model 46P / 4600P
EN Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.

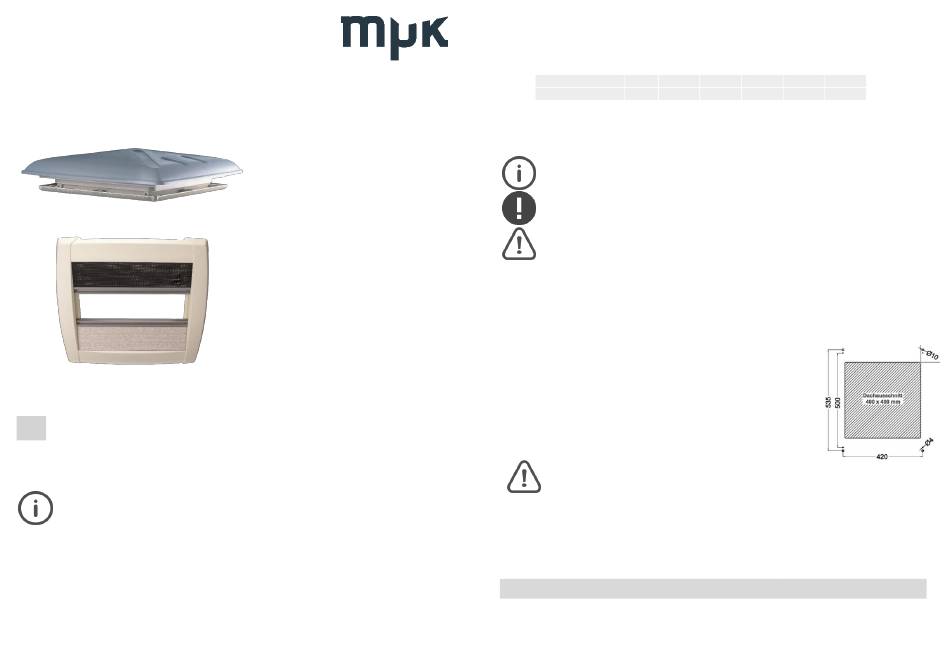

Included with delivery
1x Rooflight with outer frame
1x Inner frame with double pleats
1x Fixing parts (8x fixing brackets and 4x large plastic screw)
1
Technical data:
Aperture 400 x 400 mm
Roof thickness 24-56 mm
Corner radius
Site dome 560 x 560 mm
Height over roof
Ventilation 150 cm²
Weight
Size inner frame 565 x 530 x 35 mm
Outer frame material Polypropylene
Dome material Polypropylene
Speed limit 130 km/h
Authorization ECE R43 -019649
Additionally required for installation (not included in delivery)
1x Elastic sealant adhesive, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710
8x Fixing screws for the upper frame
Pan 3,5 mm / head according to DIN ISO 7049 / Length acc. to table
Roof thickness
Screw length
With timber support under the roof lining: 4x Fixing screws for the inner frame:
Pan 3,5 mm / head according to DIN ISO 7049 (DIN 7981) / length max. 10 mm
Explanation of symbols
NOTE
Particulary important information.
ATTENTION!
Failure to observe can lead to material damage.
23 mm
WARNING!
Safety note: Serious risk of injury.
92 mm
3,0 kg
Safety and installation instructions

Check the roof thickness of your vehicle before mounting.

The rooflight should only be fitted to a flat roof surface, both internally and
externally.

Choose a fitting position that will not interfere with other
roof mounted components (e.g. roof-racks/antenna's etc.)
and avoid internally installed electrical cables and
furniture, which could impede the correct operation of the
rooflight.

Always fit the rooflight with the handles facing in the
direction of travel (i.e. handles at the front and rear)

Never stand on the dome of the rooflight!
Do not open the rooflight while driving.
The rooflight must be locked down before traveling.

Do not open the rooflight in strong wind or rain .

Close the rooflight during rain and snowfall.
Extras (optional)
Designation
Adapter frame for Fiat Ducato
mm 24-34 31-41 37-47 44-54
mm 25 32 38 45
Article No.
4040ARW
51-56
50
Inner frame
