ISO 9001:2008
ISO 14001:2004
Cert.-No. 01 100 89747
Cert.-No. 01 104 069609
Metall- und Plastikverarbeitungs- GmbH & Co. KG Kierspe
Internet: www.mpk-kierspe.de
Fitting and Operating Instructions
GB

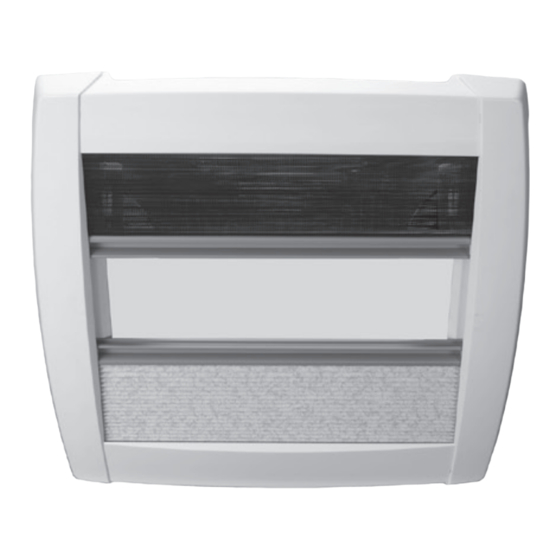

Rooflight VisionVent M
- Model 4751P (4701P)
pro
Special Models 44P/ 4400P, 46P/ 4600P/ 42P
Issue May 2011
We reserve the richt to change technical
1
specifications without notice. E&OE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MPK VisionVent M pro 4751P
Summary of Contents for MPK VisionVent M pro 4751P
- Page 1 ISO 9001:2008 ISO 14001:2004 Cert.-No. 01 100 89747 Cert.-No. 01 104 069609 Metall- und Plastikverarbeitungs- GmbH & Co. KG Kierspe Internet: www.mpk-kierspe.de Fitting and Operating Instructions Rooflight VisionVent M - Model 4751P (4701P) Special Models 44P/ 4400P, 46P/ 4600P/ 42P...
- Page 2 Illustration wrong wrong standard screw hole plastic wrong screw hole wrong wrong We only recommend installation by authorised dealers. Please read these instructions carefully before fitting and operating the roof- lights. Important: We cannot be held responsible for incorrect fitting, handling or operation. Any product faults relating to the production and materials used should be noticed to us via an authorised dealer immediately.
-
Page 3: Fitting Instructions
Fitting Instructions Warning! Never stand on the dome of the rooflight! (See picture 1) Fitting position Choose a fitting position that will not interfere with other roof mounted components (e.g. roof-racks/antenna’s etc.) and avoid internally installed electrical cables and furniture, which could impede the correct operation of the rooflight. - Page 4 Fitting Instructions Fitting The four large holes are used to fit the frame to the inner lining panel only, where there is no supporting timber frame, using the large plastic screws supplied. Offer up the inner frame into the outer frame and mark the central position of the large holes. Drill holes for the screws and secure the frame to the roof with the plastic screws.
-
Page 5: Care Instructions
Care Instructions Cleaning The rooflight should only be washed by hand, using a sponge with plenty of clean water to avoid scratching. Caustic detergents and solvents may attack the plastic and make it brittle or disinte- grate. For easier cleaning of the dome it can be removed from the frame by releasing the four screws holding the handle arms (models from May 2010, Torx TK10 screws). - Page 6 Technical Information Model options: Model 44 (opaque dome) white grey beige blind roof thickness air-flow weight 440VPW-D 440VPG-D -------- 24 - 56 mm 95 cm² 3090 g 441VPW-D 441VPG-D -------- 42 - 70 mm 95 cm² 3190 g Model 4400 (clear dome) white grey beige...
-
Page 7: Spare Parts
Spare parts Colour frame: Spare parts beige white grey Replacement dome, locks Replacement dome model 4751P (4701P) clear - 150 cm² air-flow --------------- 4751.52VW 4751.52VG Replacement dome model 46P / 4600P opaque - 150 cm² air-flow --------------- 460.52VW 460.52VG opaque - 30 cm² air-flow --------------- 460.52VW-3 460.52VG-3... - Page 8 Spare parts Colour frame: Spare parts beige white grey Replacement dome, locks Replacement dome model 44P / 4400P opaque - 95 cm² air-flow --------------- 440.52VW 440.52VG clear - 95 cm² air-flow --------------- 4400.52VW 4400.52VG Replacement dome model 42P opaque - 150 cm² air-flow --------------- 420.52VW 420.52VG...
