2. Ensure XBee Studio is open and that your XBee Cellular has been discovered.

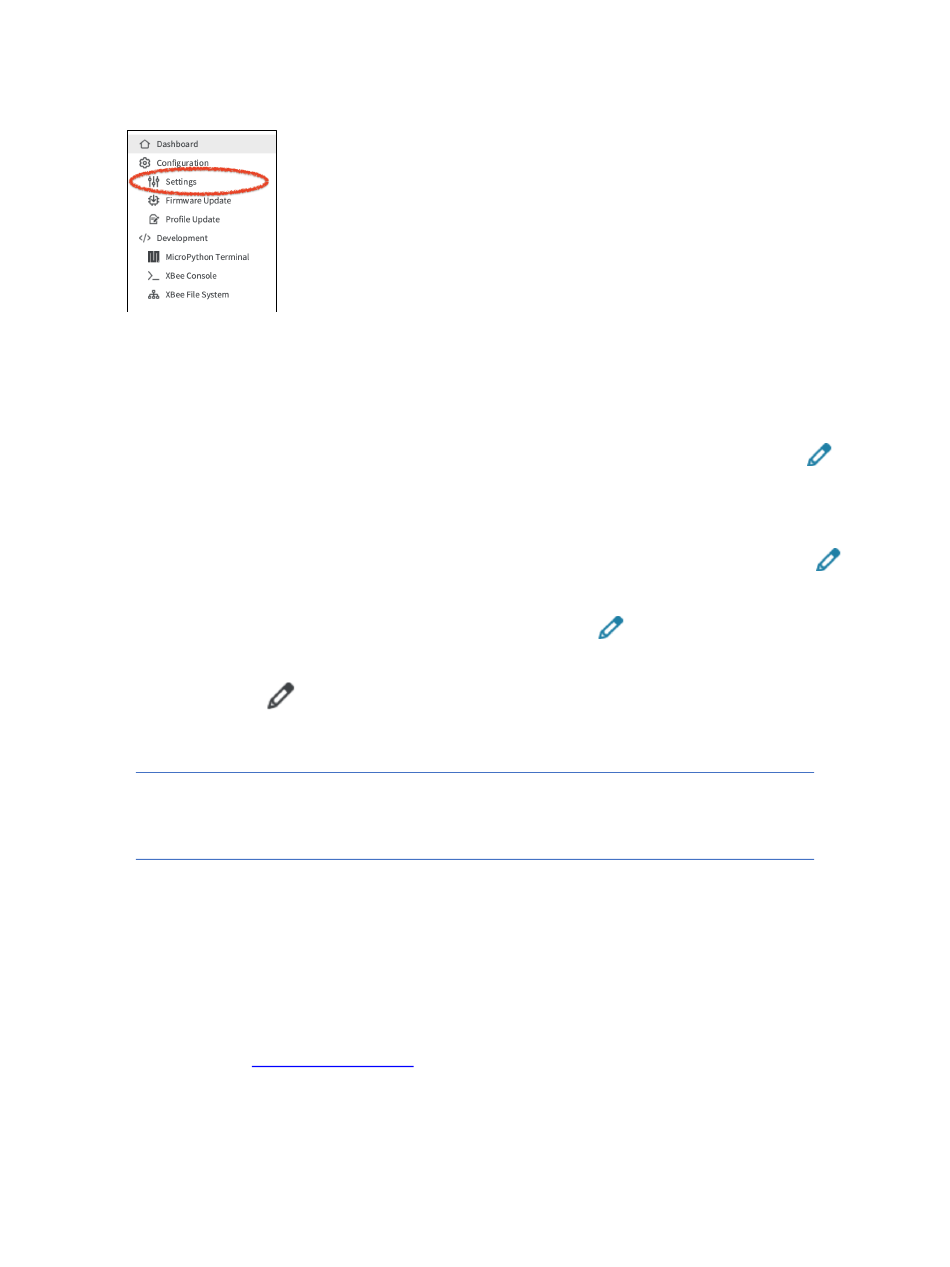

3. From the Device menu select Settings.
4. Click in the AT command to search... field at the top and type IP to highlight the IP
Protocol setting. (Remember that you may need to scroll to see it.) Confirm that TCP [1]
is selected.
6. To enable the XBee to recognize carriage return as a message delimiter, search for TD
to highlight the Text Delimiter field, type D into it and click the Write button
7. Search for AP to highlight API Enable and confirm it is set to Transparent Mode [0].
8. To enter the destination address of the echo server, search for DL and in the
Destination Address field, type 52.43.121.77 here and click the Write button
9. To set the correct TCP/IP port number, search for DE to see the Destination
Port field, type 2329 here and click the Write button
10. With the settings entered, it's a good idea to click the Write button at the top of the
Settings screen
changes to be written it will let you know.
NOTE: XBee Studio uses only raw hexadecimal numbers. The leading 0x is
not used in XBee Studio.
Option 2: Configure with Profile
Using stored profiles is a great way to completely configure an XBee with a single step. If you
are configuring 100 or more of them, profiles will be absolutely indispensable. An XBee profile
stores everything needed to configure a device including settings, files, and firmware
requirements. They are fast to make and even faster to use.
1. Download the
GSG v.1.1.2
one last time to ensure everything got saved. If there are no more
Echo Server profile to your computer.
.
.
.
