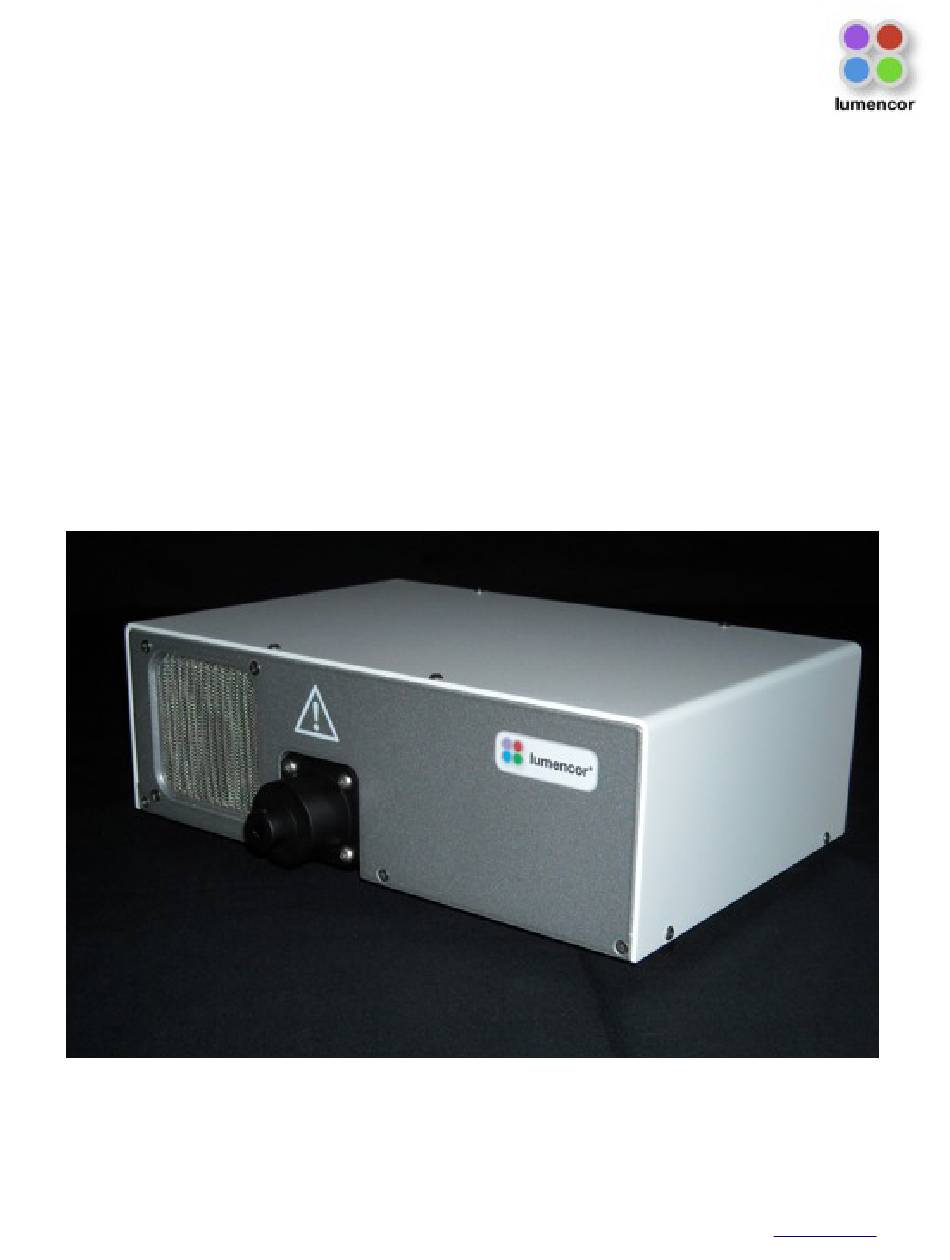

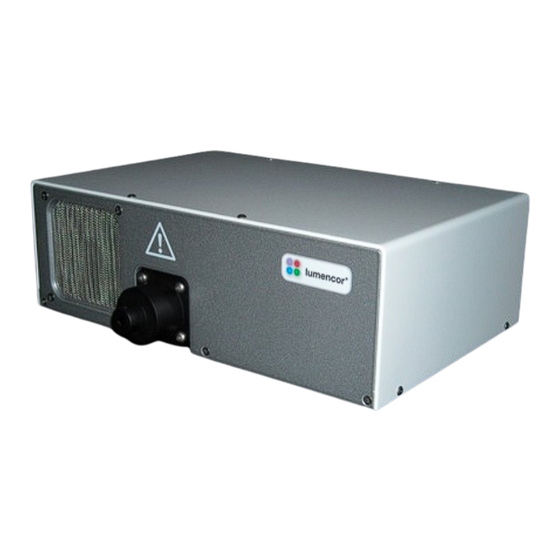

- Page 1 Lumencor SOLA Light Engine ® Instruction Manual Lumencor, Inc. 14964 NW Greenbrier Parkway, Beaverton, OR 97006 T 503.213.4269 F 503.536.6741 www.lumencor.com...
- Page 2 Emissions Certifications This equipment has been tested and found to comply with the limits of EMC directive 2004/108/EC. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents 1 Introduction 2 Precautions and Warnings 3 Installation and Operating Instructions 4 Spectral Output 5 Routine Maintenance and Trouble Shooting 6 Customer Support 7 Product Specifications 8 Connectors 9 Declaration of Conformance 10 Warranty SOLA Instruction Manual... -
Page 4: Introduction
The light sources within the SOLA are controlled by software; either via a serial interface (RS-232 or USB) to a computer running a Lumencor supplied GUI or a third party microscopy software application. The user can enable or disable each source independently and change the intensity of each source independently. -
Page 5: Installation And Operating Instructions
DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the SOLA being used in a way for which it was not intended and in complete disregard for all posted safety pre- cautions and warnings. - Page 6 Both methods are covered below. GUI Installation and Operating Instructions (using RS-232 straight-thru cable) Download the zip file for the SOLA GUI from http://www.lumencor.com/software_control.html. Unzip the file and run setup.exe to install the SOLA GUI. Connect the RS-232 cable between the PC and the SOLA.
- Page 7 SOLA. You will have the ability to turn all colors ON or OFF and adjust the intensity of all sources in unison. Next, hit the INIT button. THIS STEP IS REQUIRED TO RE-ESTABLISH THE COMMUNICATION LINK WHENEVER THE SOLA LIGHT ENGINE IS POWER CYCLED OR WHENEVER THE GUI IS STARTED. GUI Installation and Operating Instructions (using USB-to-RS232 cable) Download the zip file for the SOLA GUI from http://www.lumencor.com/software_control.html.
-
Page 8: Spectral Output
6 months and more often in dusty or smoke-filled environments. There are no user-replaceable components or sub-assemblies in SOLA. 6. Customer Support T: 503.505.6985 les.decker@lumencor.com http://www.lumencor.com/support/software_control M: Lumencor, Inc., 14964 NW Greenbrier Parkway, Beaverton, OR 97006 U.S.A. SOLA Instruction Manual... -
Page 9: Product Specifications
7. Product Specifications The SOLA must be operated and stored within the environmental conditions specified. Specification Detail Temperature Operating 32 to 95° F (0 to 35° C) Non-operating -4 to 158° F (-20 to 70° C) Humidity Operating and non-operating 0 to 80% relative humidity, non-condensing Altitude Operating... -
Page 10: Connectors
DB9 Connector Pin Definitions 9. Declaration of Conformance Manufacturer: Lumencor, Inc. 14964 NW Greenbrier Parkway, Beaverton, OR 97006 USA We declare under our sole responsibility that the SOLA Light Engine conforms to the following directives and norms: EMC directive 2004/108/EC 2006/95/EC CB Scheme...
