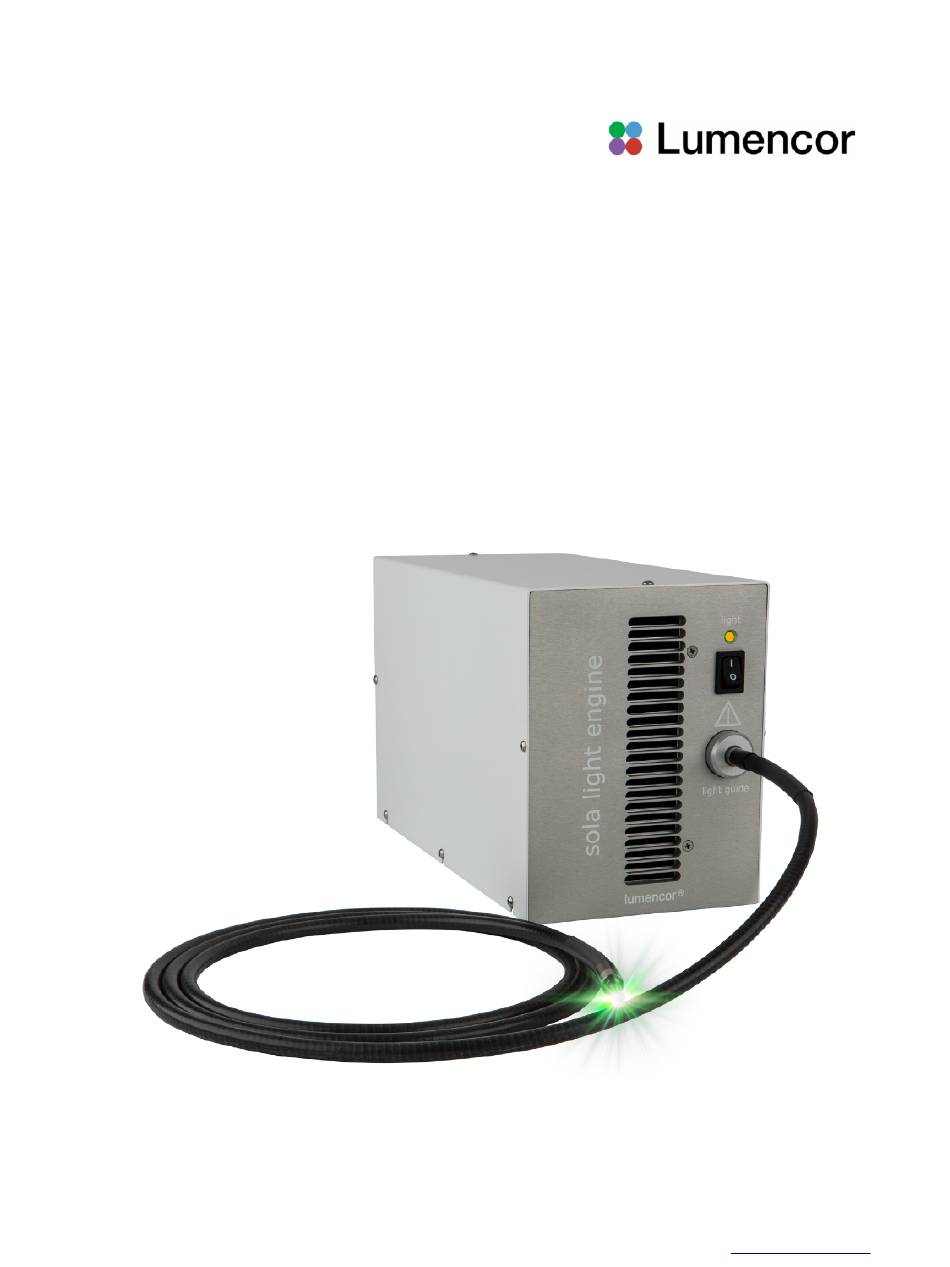

- Page 1 SOLA SM and SOLA SM 365 Light Engine ® Instruction Manual Lumencor, Inc. Document Number 57-10003 www.lumencor.com...
- Page 2 Regulatory Models Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Sola” is used as a representative model for all certified and CE marked Sola Products.
-
Page 3: Table Of Contents
Table of Contents Introduction Precautions and Warnings Installation and Operating Instructions Spectral Output Product Specifications Routine Maintenance and Trouble Shooting Customer Support Warranty SOLA SM Light Engine Instruction Manual... -
Page 4: Introduction
(part number 29-10045) that plugs into the 3.5 mm connector on the rear panel. This manual covers both SOLA SM and SOLA SM 365 light engine models, which are defined by their different ultraviolet/violet spectral outputs as described in Section 4. -
Page 5: Precautions And Warnings
5.0 A max. Also, it is imperative that the alternative power supply has output over-current protection, as the power input of the SOLA SM is not fused. The equipment is required to be supplied by a properly approved/certified DC power source meeting the minimum electrical ratings of the product. - Page 6 Attention: NE PAS ouvrir l’appareil. Il ne contient aucune pièce réparable et l’ouverture de son boîtier a pour effet d’annuler la garantie. Caution: DO NOT set liquids on the light engine. Spilled liquids may damage your light engine. SOLA SM Light Engine Instruction Manual...
- Page 7 DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the SOLA SM light engine being used in a way for which it was not intended and in complete disregard for any posted safety precautions and warnings.
- Page 8 The model name and unique 4- or 5- digit serial number of the light engine are marked on a label affixed to the back panel (Figure 1). SOLA SM 365 light engines are identified by a model name containing “V” (e.g. SOLA SM 5-LCR-VA, Figure 1) and a marking on the rear panel (Figure 1).
- Page 9 3.3 Operation The SOLA SM light output can be turned on or off using the manual light output switch on the front panel or using the foot pedal toggle switch accessory. Do not combine the operation of these switches. If the front panel rocker switch is used to turn the light on, that same switch should be used to turn it off.
-
Page 10: Spectral Output
4. Spectral Output Typical spectral output distributions of SOLA SM and SOLA SM 365 light engines are shown below (Figure 3). Figure 3. SOLA SM and SOLA SM 365 light engine spectral output distributions. 5. Product Specifications SOLA SM light engines must be operated and stored within the specified environmental conditions. Performance specifications for individual light engines are listed on the certificate of conformance included with the shipping... -
Page 11: Routine Maintenance And Trouble Shooting
8. Warranty SOLA SM and SOLA SM 365 light engines come with a 18 month warranty, starting on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
