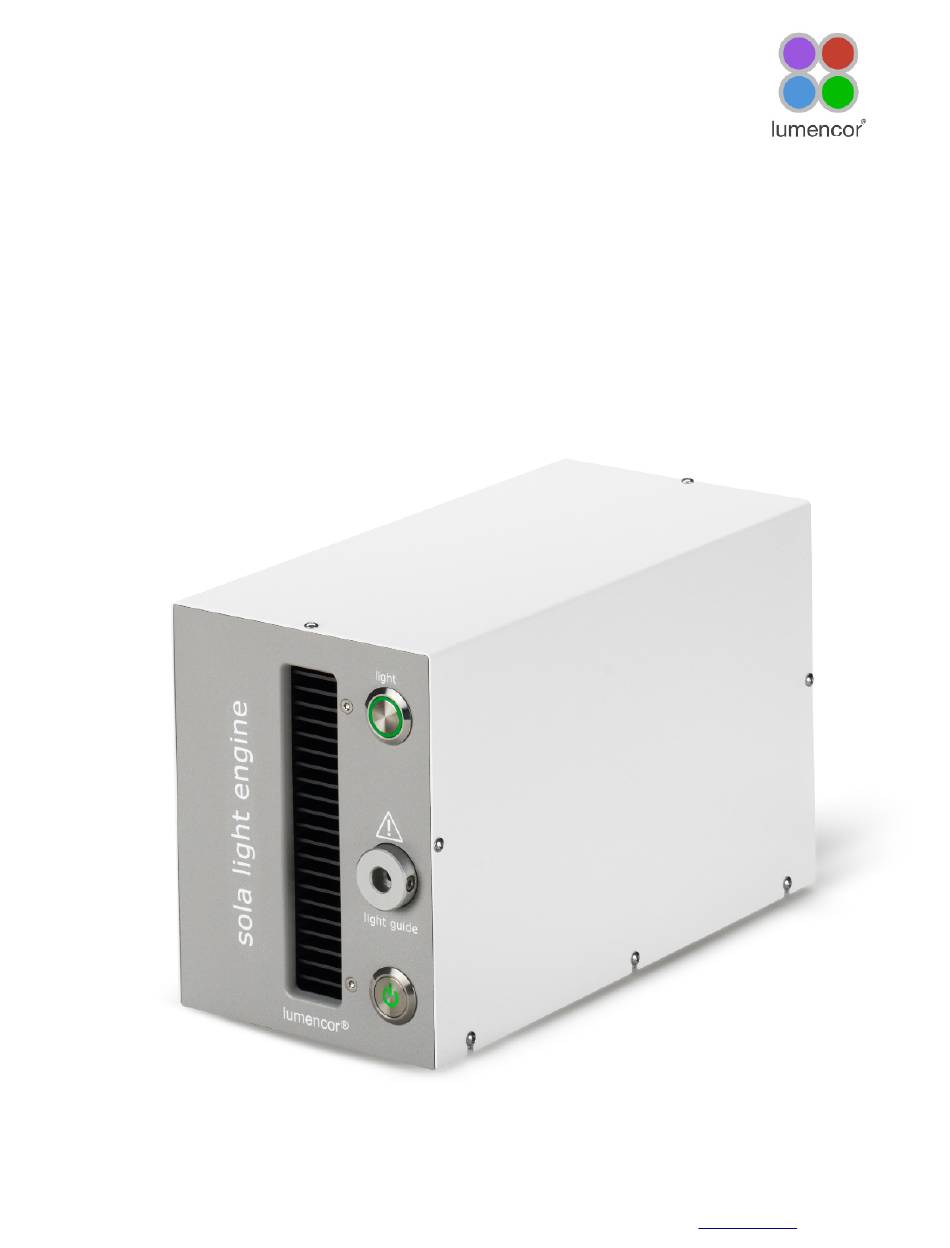

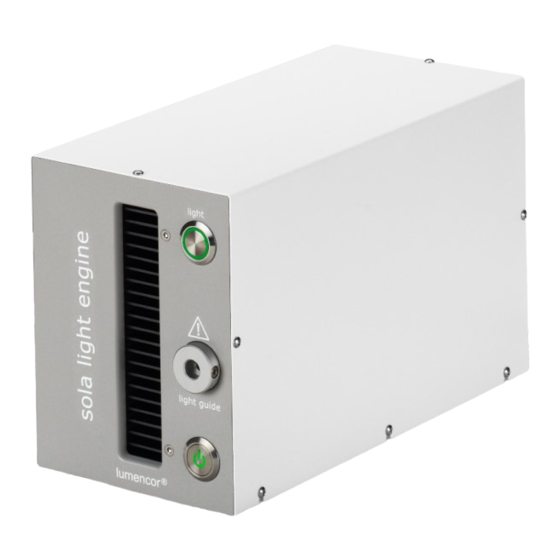

- Page 1 SOLA and SOLA FISH Light Engine ® Instruction Manual Lumencor, Inc. Document Number 57-10027 www.lumencor.com...
- Page 2 “Regulatory Model: Sola” is used as a representative model for all certified and CE marked Sola Products. “Regulatory Models: Sola FISH” is used as a representative model for all certified and CE marked Sola FISH Products.
-
Page 3: Table Of Contents
Table of Contents Introduction Precautions and Warnings Installation and Operating Instructions Spectral Output Product Specifications Routine Maintenance and Troubleshooting Customer Support Warranty SOLA and SOLA FISH Light Engine Instruction Manual... -
Page 4: Introduction
Instructions de sécurité: Veiller à lire et à respecter toutes les instructions de sécurité fournies AVANT d’utiliser le nouveau SOLA ou SOLA FISH. Afin d’écarter les risques d’incendie, de décharge électrique, de blessure corporelle et de possibles dom- mages ou défaillance de la protection offerte par l’appareil. Conserver toutes les instructions de sécurité. - Page 5 Warning: DO NOT use an unapproved power supply. The Lumencor-supplied external power supply is recommended for use with the SOLA and SOLA FISH light engine. Alternative 24 V DC power supplies may be used provided that the current is limited to 5.0 A max. Also, it is imperative that the alternative power supply has output over-current protection, as the power input of the SOLA and SOLA FISH is not fused.
- Page 6 DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the SOLA or SOLA FISH light engine being used in a way for which it was not intended and in complete disregard for all posted safety precautions and warnings.
- Page 7 AVIS DE NON-RESPONSABILITÉ: Lumencor décline toute responsabilité pour les blessures corporelles ou les dommages au produit résultant d’une utilisation du SOLA ou SOLA FISH autre que celle prévue et du mépris total de toutes les mesures de sécurité et mises en garde affichées.
- Page 8 ON to begin operation. The SOLA and SOLA FISH light engines have a safety interlock for the light guide that prevents light output unless a liquid light guide is fully inserted into the light guide port.
- Page 9 Notes [1] This connection supplies electrical power to the pod from the SOLA or SOLA FISH. The pod will turn on when the connection is made. [2] There is no warm-up time; the light engine output stabilizes less than 1 second after the light output is switched on.
- Page 10 3.6 Manual/Foot Pedal Operation SOLA or SOLA FISH light engine output can be turned on or off using the manual light output switch on the front panel or using the foot pedal toggle switch accessory (part number 29-10045). Do not intermix the operation of these switches or light output on/off commands from serial control devices (control pod or computer workstation).
-
Page 11: Spectral Output
4. Spectral Output Typical output spectral distributions of SOLA, SOLA FISH, SOLA V-nIR, and SOLA U-nIR light engines are shown below (Figure 4). Figure 4. SOLA, SOLA FISH, SOLA V-nIR, and SOLA U-nIR light engine spectral output distributions. 5. Product Specifications SOLA and SOLA FISH light engines must be operated and stored within the environmental conditions specified in... -
Page 12: Routine Maintenance And Troubleshooting
No routine maintenance is required. There are no user-replaceable components or sub-assemblies in SOLA or SOLA FISH light engines. Opening the light engine enclosure will void the manufacturer’s warranty. In the event that the light engine fails to perform in accordance with the specifications listed on the certificate of conformance, review the troubleshooting procedures on page 12. -
Page 13: Customer Support
RMA number. 8. Warranty SOLA and SOLA FISH light engines come with a 24 month warranty, starting on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
