Summary of Contents for Lumencor SPECTRA III (L) Light Engine

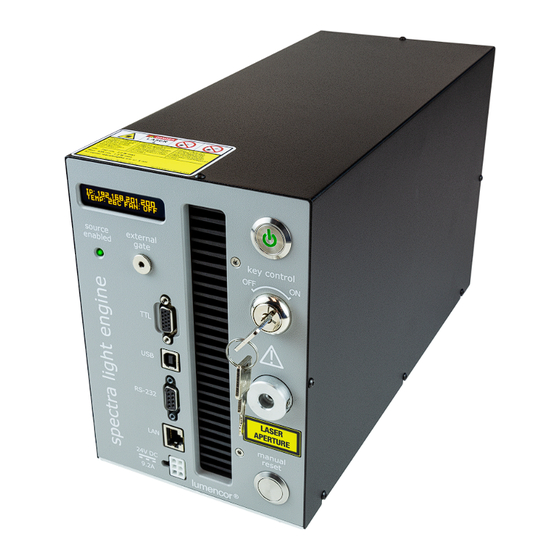

- Page 1 SPECTRA III (L) Light Engine Instruction Manual ® Lumencor, Inc. Document Number 57-10017 www.lumencor.com ...
- Page 2 Regulatory Models Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Spectra III L” is used as a representative model for all certified and CE marked Spectra III Laser Products.
-
Page 3: Table Of Contents
Table of Contents Introduction Precautions and Warnings Installation and Operating Instructions Light Output Characteristics Operational Specifications Routine Maintenance and Trouble Shooting Customer Support Warranty SPECTRA III (L) Light Engine® Instruction Manual... -
Page 4: Introduction
1. Introduction The SPECTRA III (L) light engine consists of up to 8 individually addressable solid-state light sources with integrated electronic control systems. The constituent light sources may be LEDs, luminescent light pipes or lasers. The outputs of the constituent light sources are refined by bandpass filters and merged into a common optical train directed to the light output port on the front panel. -
Page 5: Precautions And Warnings
Warning: ONLY use the power supply provided by Lumencor. The Lumencor-supplied 24 VDC, 9.2 A external power supply is required for use with the SPECTRA III (L) light engine. The equipment is required to be supplied by a properly approved/certified DC power source meeting the minimum electrical ratings of the product. - Page 6 Avertissement: Rayonnement optique Peut-être dangereux émis par ce produit . Ne regardez pas la lampe d'exploitation. Une blessure oculaire peut entraîner. Avertissement: UV émis par ce produit . Évitez les yeux et la peau exposition au produit non blindé. SPECTRA III (L) Light Engine® Instruction Manual...
- Page 7 2 m or more from a radiation warning device shall itself be provided with a radiation warning device. Do not exceed 2 m without providing a radiation warning device in accordance with EN 60825-1:2007 & 2014. SPECTRA III (L) Light Engine® Instruction Manual...
- Page 8 Attention: NE PAS laisser tomber la source lumineuse. Elle contient des composants optiques en verre susceptibles d’être endommagés ou désalignés par le choc résultant d’une chute sur une surface dure. DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the SPECTRA III (L) light engine being used in a way for which it was not intended ®...
- Page 9 3. Operating Instructions 3.1 Contents The SPECTRA III (L) light engine ships with the following list of standard components: 1. The SPECTRA III (L) light engine engine, configured with 8 ® AC Power Cords output channels (colors) and an output adapter for connection...
- Page 10 3.2 Installation When setting the SPECTRA III (L) light engine up for use, place the unit on a hard surface and avoid blocking or restricting airflow at the air inlets (front panel; Figure 3) or exhaust ports (rear panel) on the enclosure.
- Page 11 8. When the initiation sequence completes, “LUMENCOR” will flash on front display panel and then be replaced by a display showing the current light engine IP address, the internal temperature and the fan status. ...
- Page 12 Figure 5. SPECTRA III (L) GUI, Settings Tab. The GUI is accessed by typing the light engine IP address accessed by typing the light engine IP address (198.168.201.200 in this example) into a web browser. (198.168.201.200 in this example) into a web browser. SPECTRA III (L) Light Engine® Instruction Manual...
- Page 13 SPECTRA III (L) control mode and return to the main control screen. 5. Follow the instructions on Lumencor’s Light Engine Control Pod Operation sheet (p/n 54-10036). In brief, press the COLOR button to select output light output channel, press the MODE button to toggle light output on and off and turn the control knob to adjust intensity for the current light output channel selection.
-
Page 14: Light Output Characteristics
(nm). Bandpass filters are not user- exchangeable and changes require return of the light engine to Lumencor’s factory for service (see Section 7). Since changing bandpass filters will result in source output power changes, a new certificate of conformance will be provided as part of this service. -
Page 15: Operational Specifications
Warranty 18 months parts and labor # The SPECTRA III (L) light engine must be operated in a non-condensing environment (dew point <10ºC with controlled ambient temperature <30º C). ¶The corresponding number of days/months/years may vary considerably depending on the duty cycle implemented by the user and the prevailing environmental conditions during operation. -
Page 16: Customer Support
Please be prepared to provide the 5-digit serial number of the light engine. Any light engine returned to Lumencor for repairs or upgrades requires a pre-issued return material authorization (RMA) number. To obtain a RMA number, submit the online request form at http://lumencor.com/support/lumencor-rma-request-form. -
Page 17: Warranty
18 month warranty to end users. Warranty ® coverage starts on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
