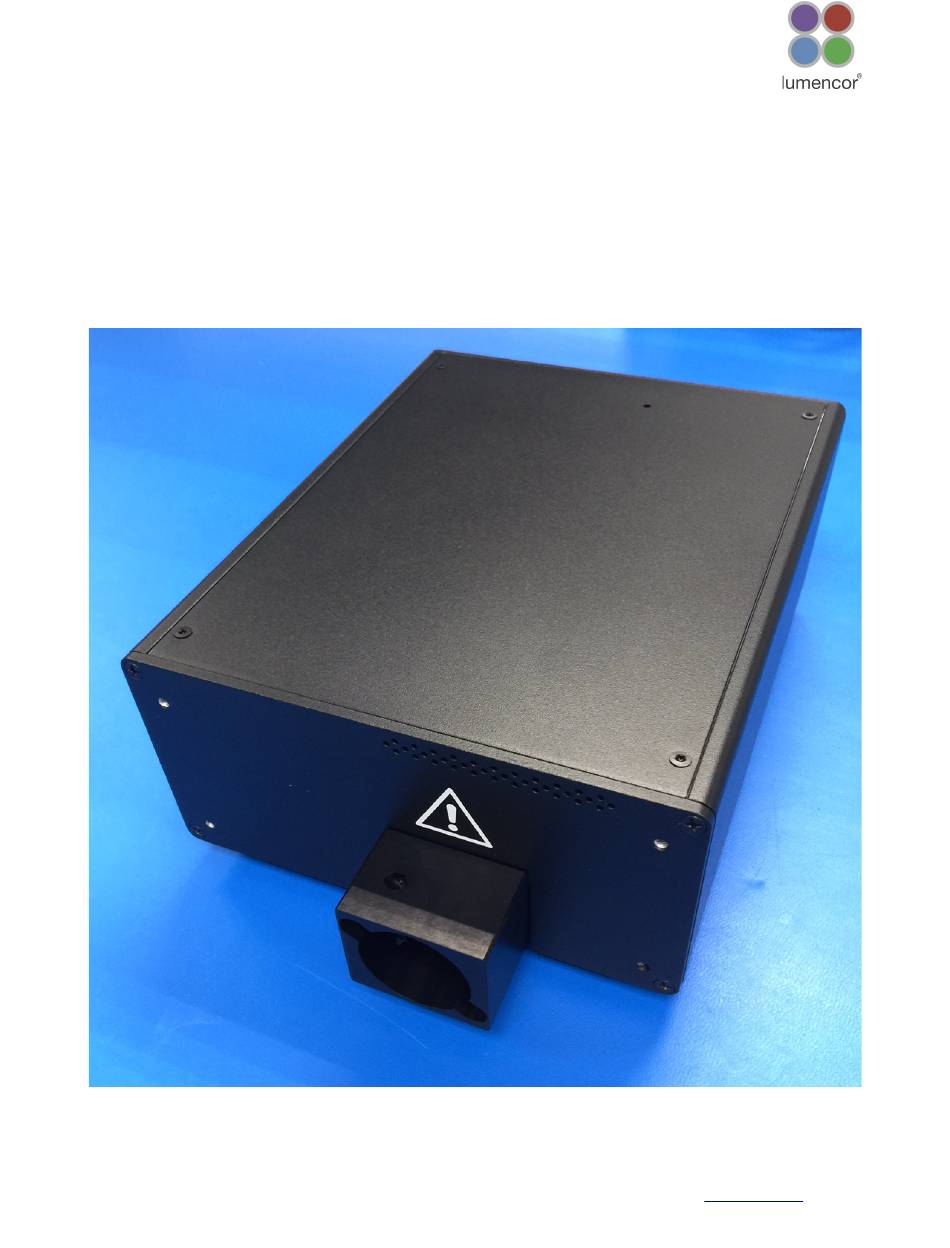

- Page 1 AURA FDM Light Engine Instruction Manual Lumencor, Inc. Document Number 57-10016, Rev. A www.lumencor.com...
- Page 2 Regulatory Models Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Aura” is used as a representative model for all certified and CE marked Aura Products.
-
Page 3: Table Of Contents
Table of Contents Introduction Precautions and Warnings Installation and Operating Instructions Spectral Output Product Specifications Routine Maintenance and Trouble Shooting Customer Support Warranty AURA FDM Light Engine Manual... -
Page 4: Introduction
The light sources within the AURA are controlled by a serial command interface connecting to a computer running a Lumencor supplied GUI or a third party data acquisition software. Alternatively, the light sources may be enabled by TTL inputs from a trigger device such as a camera. The user can enable or disable each source independently (serial or TTL) and change the intensity of each source independently (serial only). - Page 5 Attention: NE PAS ouvrir l’appareil. Il ne contient aucune pièce réparable et l’ouverture de son boîtier a pour effet d’annuler la garantie. Caution: DO NOT connect a video cable to the TTL input enable port. Although the connector might look compatible, this input is not intended to be driven by a video signal. AURA FDM Light Engine Manual...
-
Page 6: Precautions And Warnings
DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the AURA being used in a way for which it was not intended and in complete disregard for all posted safety precautions and warnings. - Page 7 3.2 Installation AURA FDM light engines incorporate fan-assisted air cooling. When positioning the AURA for use, place the unit on a hard surface and avoid blocking or restricting airflow at the air intake (side panel) and exhaust ports (underside). Restricting the airflow will cause the unit to operate at elevated temperatures and will result in decreased operating lifespan and/or premature failure.
-
Page 8: Spectral Output
4. Spectral Output The spectral output of AURA FDM light engines depends on the configuration of color channels installed and the bandpass filters associated with each channel, as shown on the certificate of conformance (Figure 1). AURA FDM Light Engine Manual... -
Page 9: Product Specifications
In the event that the light engine is sold, the certificate of conformance should be transferred to the new owner. Certificates of conformance are also recorded in Lumencor’s database and copies can be requested by e-mail to techsupport@lumencor.com. -
Page 10: Customer Support
RMA number. 8. Warranty The AURA FDM light engine is backed by an 18 month warranty. Warranty coverage starts on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
