PONY VCF
U S E R
M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the PONY VCF and is the answer not in the manual?

Questions and answers

Related Manuals for Befaco PONY VCF

Summary of Contents for Befaco PONY VCF

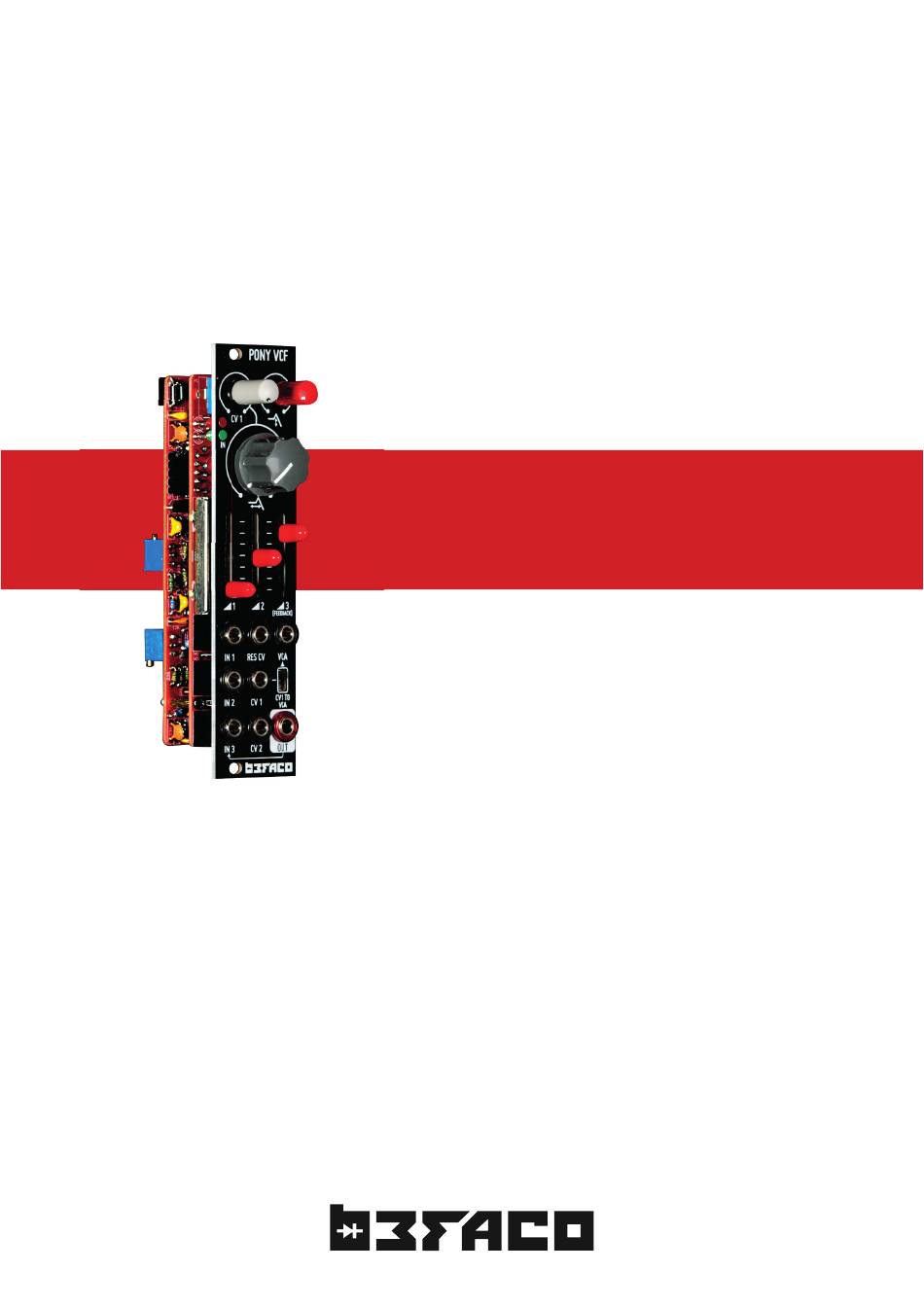

  • Page 1 PONY VCF U S E R M A N U A L...
  • Page 2 PONY VCF U S E R M A N U A L POWER & INTRO POWERING THE T H A N K S F O R P U R C H A S I N G A M O D U L E F R O M B E FA C O ! MODULE B E F O RE Y O U P LU G T H I S M O D U L E I N .
  • Page 3 PONY VCF U S E R M A N U A L CONTROLS MANUAL CUT-OFF CONTROL MANUAL RESONANCE CONTROL CV IN 1 ATTENUATOR Control the amount of CV that goes from CV1 IN to the Cut-Off . PEAK METER Green Led indicates the presence of a signal. Red LED indicates saturation at the fi lter’s IN (after the Mixer). AUDIO MIXER VOLUME CONTROLS Controls the volume of the three audion INs. OUT signal is normalized to IN3 for easy feedback. AUDIO INs CV1. Controls Cut-Off / VCA Volume.
  • Page 4 U S E R M A N U A L MISCELLANEA MISCELL ANEA S P E C S A N D C R E D I T S Size: 6HP Depth: 30 mm Designed with care and love by the Befaco Team in Barcelona 2023. +12v: 50 mA -12v: 45 mA...
