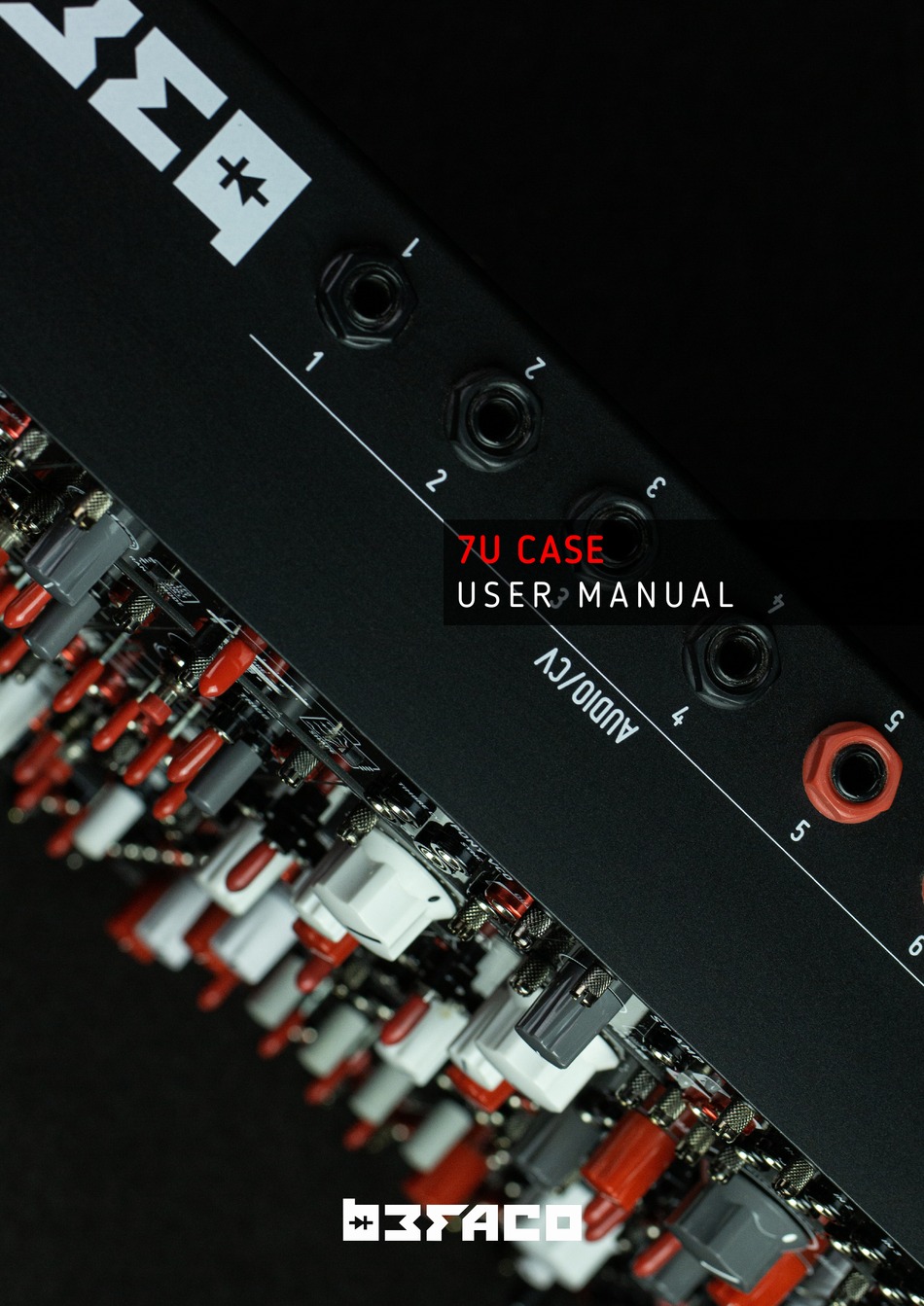

- Page 1 7U CASE U S E R M A N U A L...
- Page 2 7 U C A S E The Befaco 7U Case is a 104HP 7U Eurorack case equipped with our latest and more powerful power supply: Trolley Bus, providing up to 5000mA of power on the +12V rail, 2500mA on -12V and 4000mA on the 5V rail.
- Page 3 7 U C A S E U S E R M A N U A L R E F E R E N C E R E F E R E N C E R E A R P A N E L O V E R V I E W Anti-Vandalic Power Button 2.5mm Power Barrel Connector USB-A charging and Host Ports.
- Page 4 7 U C A S E U S E R M A N U A L R E F E R E N C E 2x3 balanced shrouded connector for Jacks 1, 2. 2x3 balanced shrouded connector for Jacks 3, 4. 2x3 balanced shrouded connector for Jacks 5, 6.
- Page 5 7 U C A S E U S E R M A N U A L R E F E R E N C E P O W E R T R O L L E Y B U S S Y S T E M The case counts with our latest and most sophisticated power solution: Trolley Bus.
-
Page 6: Usb Device
7 U C A S E U S E R M A N U A L R E F E R E N C E MIDI DIN PORTS The rear panel MIDI Din ports can be accessed from two connectors on the I/O Board. - Page 7 7 U C A S E U S E R M A N U A L R E F E R E N C E 1 U R O W S W A P P I N G T H E 1 U R O W T O T H E C E N T E R The case allows you to customize the 1U row and place it in the center.
- Page 8 D I S P O S A L I N S T R U C T I O N S This symbol means that the product or its packaging should not be disposed of with your other household waste. It is your responsibility to dispose of your waste separately from the municipal waste stream. More information and support. befaco.org/befaco_7u_case...
