Befaco TRS 1U Assembly Manual

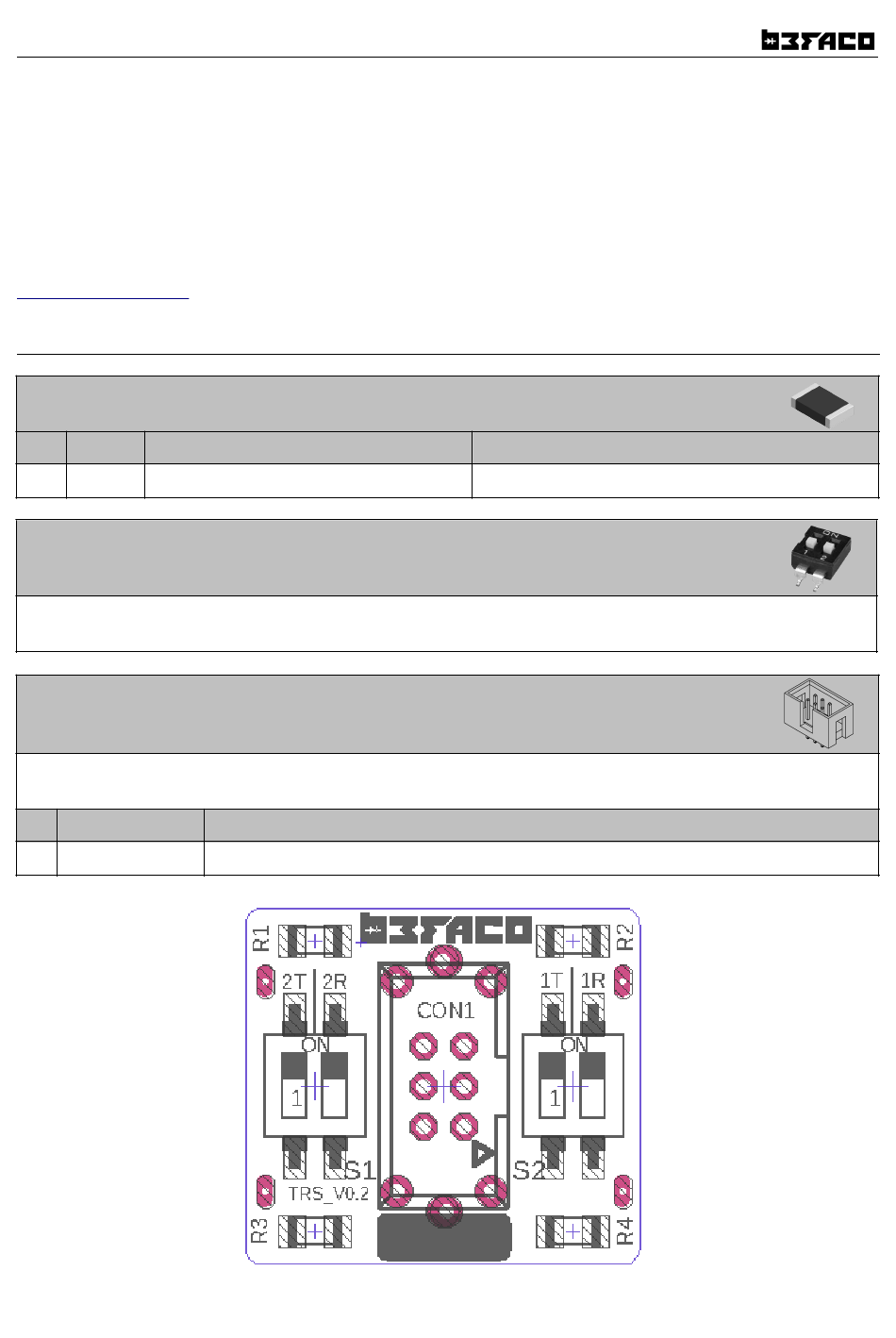

TRS 1U - ASSEMBLY GUIDE – Rev. Jul 2023

THANKS FOR CHOOSING ONE OF OUR KITS!

This assembly guide has been designed taking into account the common issues that we often ﬁnd people experience in

our workshops. The order in which the components are placed on the board is meant to make assembly as easy as

possible.

Some steps are not obvious, so even if you're an experienced DIYer, please take the time to read the steps thoroughly

before starting.

If this is your ﬁrst project, please read this article before you start assembling the kit:

www.befaco.org/howto/

GOOD LUCK!

RESISTORS

Qty

Value

Code

330 Ohm 3300

Place and solder the mini slide switches at the positions on the PCB marked as S1 and S2. Mind the orientation of the

switch, check the image below.

Solder the IDC connector. Orientation is marked by the notch on silskreen, also the small arrow on the connector must be

on the side with the thick white line or a arrow.

Qty PINs

2x3

Name on PCB

CON1

Name on PCB

R1, R2, R3, R4

Table of Contents

Do you have a question about the TRS 1U and is the answer not in the manual?

Page 1 TRS 1U - ASSEMBLY GUIDE – Rev. Jul 2023 THANKS FOR CHOOSING ONE OF OUR KITS! This assembly guide has been designed taking into account the common issues that we often ﬁnd people experience in our workshops. The order in which the components are placed on the board is meant to make assembly as easy as possible.
Page 2 FRONT PANEL Please check the orientation of the panel, You should read befaco on the upper part pcb when you turn the module. Attach the front panel adjusting the parts one by one if necessary until they ﬁt. At this point a pair of ﬁne tweezers can be helpful.
