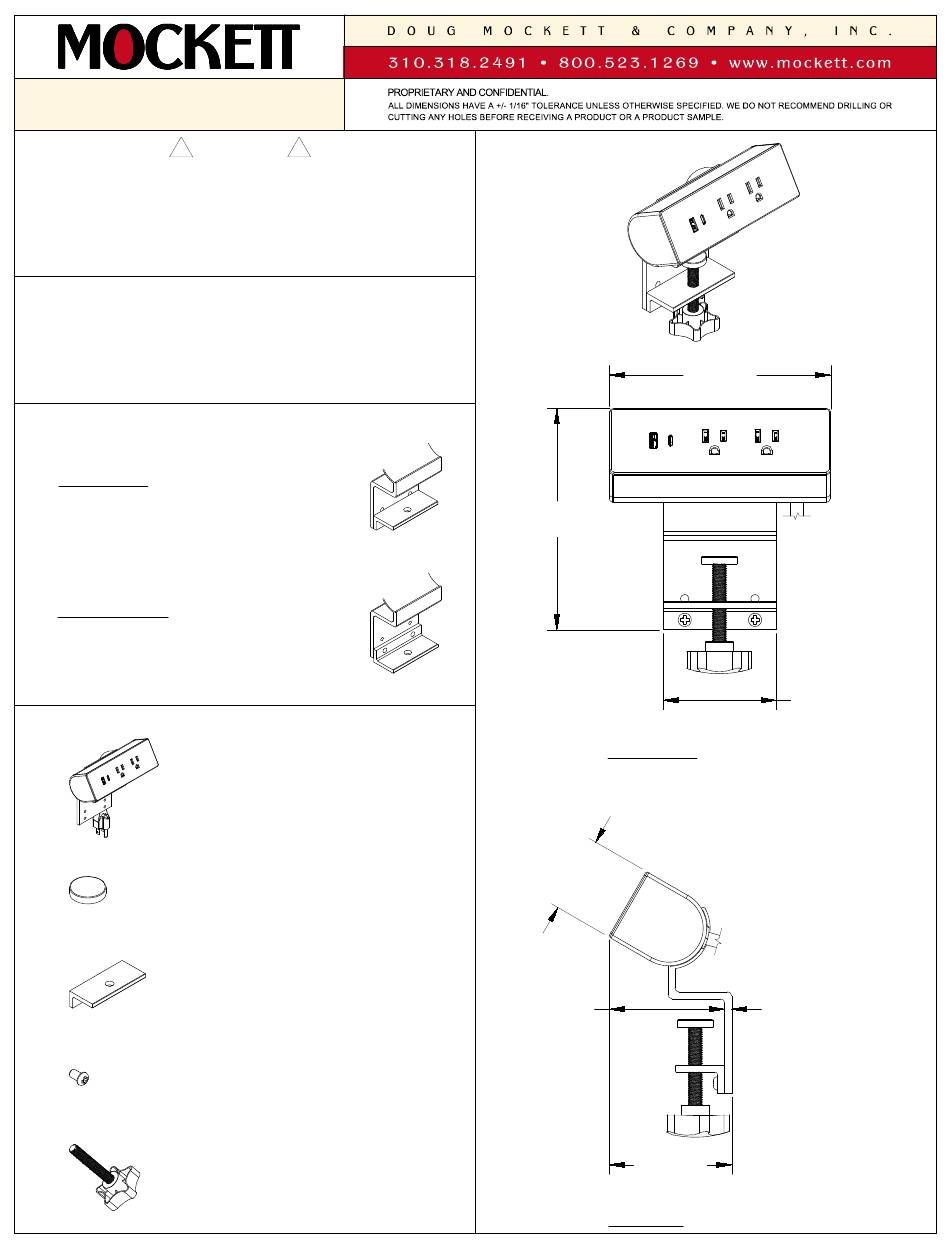

PCS119/UC
!
·
For indoor use only.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
·
Avoid placing the charger in a high temperature environment
or near fire.
SPECIFICATIONS
·
6 ft. cord length.
·
USB-A and USB-C ports are for charging use only.
MOUNTING BRACKET ORIENTATION OPTIONS
Top Orientation
10.00mm [13/32"] MIN.
38.00mm [1-1/2"] MAX. table thickness.
Bottom Orientation
13.00mm [1/2"] MIN.
59.00mm [2-5/16"] MAX. table thickness.
TABLE OF CONTENTS
2023.10.06
WARNING
!
. . . . . . . . 1X PCS119/UC
. . . . . . . . . 1X Metal Insert
. . . . . . 1X Mounting Bracket
. . . . . . . . . . . . . . . 2X
M6 X 1.0 X 10.00mm
Pan Head Screw
. . . . . . . . 1X Thumb Screw
157.00mm
[6-3/16"]
FRONT VIEW
54.00mm
[2-1/8"]
82.00mm
[3-7/32"]
87.00mm
[3-7/16"]
SIDE VIEW
1
157.00mm
[6-3/16"]
80.00mm
[3-5/32"]
5.00mm
[3/16"]
Advertisement
Related Manuals for Mockett PCS119/UC
Summary of Contents for Mockett PCS119/UC
- Page 1 80.00mm [3-5/32"] TABLE OF CONTENTS FRONT VIEW ..1X PCS119/UC 54.00mm ..1X Metal Insert [2-1/8"] ..1X Mounting Bracket 82.00mm...
- Page 2 Loosen the thumb screw on the mounting bracket and slide mounting bracket. Use (2) M6 X 1.0 X 10.00mm Pan head PCS119/UC on the edge of the work surface. Tighten thumb screws to secure onto the back plate. Assemble the thumb screw to secure part.
