Mockett PCS98D Quick Start Manual

NOTE:
Cord length is 6 ft.
USB-A & USB-C ports are for charging use only.
Table thickness is 3/4" MIN. to 2-1/2" MAX.
for accessible edge of work surface.
(See STEP 1A)
Table thickness is 3/4" MIN. to 1-1/2" MAX.
for restricted edge of work surface.
(See STEP 1B)
USB-A port 2.1A/10.5W charging capacity.
USB-C PD port 3A/60W charging capacity.

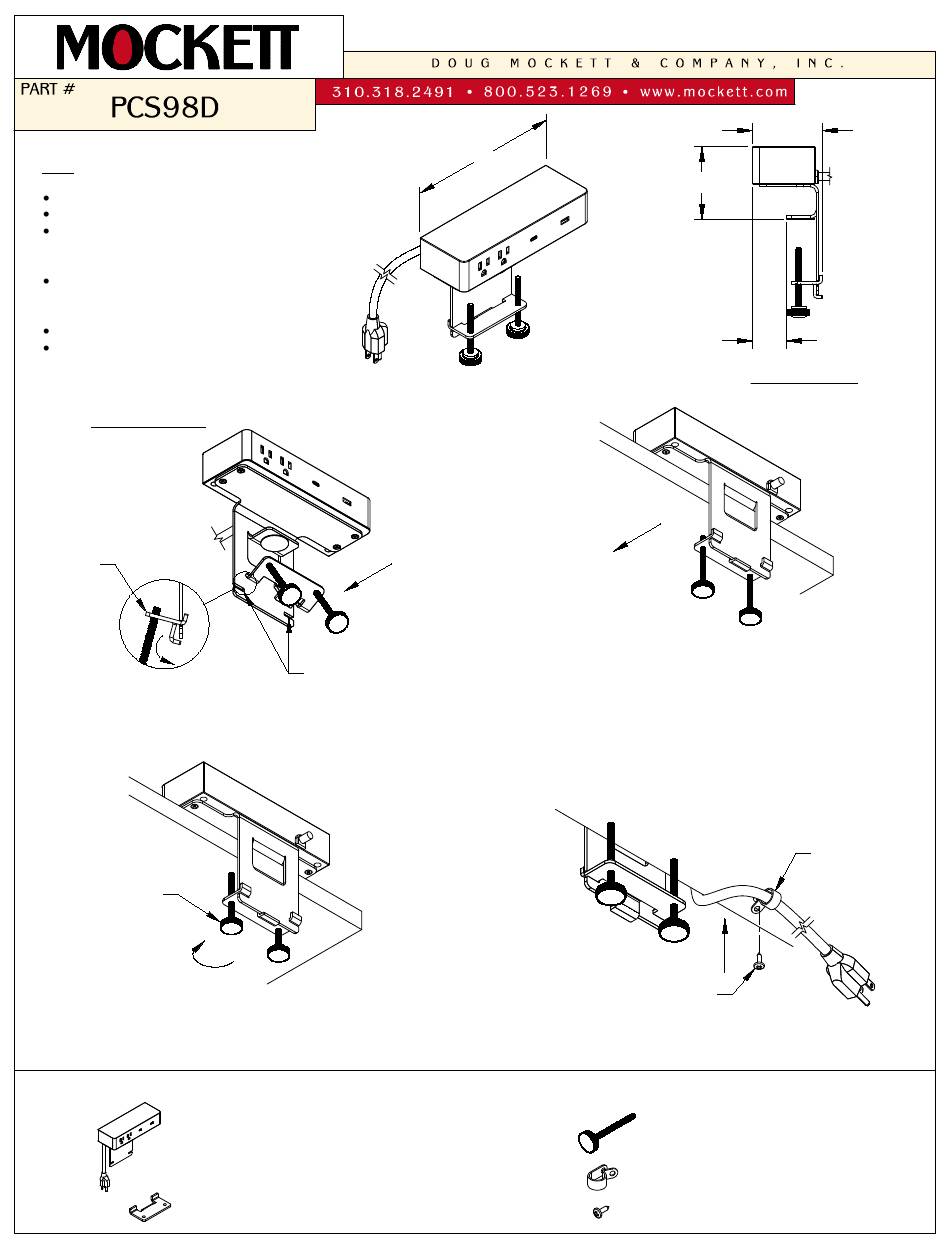

1a
Accessible Edge
Mounting
plate
Loosen the thumb screw to install the mounting
plate in the notch at the lower part of the unit.
3a
Thumb
screw
Secure the unit by tightening thumb screws. Plug
the unit into nearby outlet and unit is ready for
use.
TABLE OF CONTENTS:
2020.01.21
Notch
..................................1X PCS98D
........................1X Mounting plate
8"
2a
Install the unit at the desired edge of the work
surface. Make sure the unit is fully leveled the on
the work surface. Place and allow enough
clearance for unit operation. DO NOT place unit
where the cable is strained or trapped.
4a
(OPTIONAL)
Use the optional wire guide to secure the power
cord under the work surface.
1
3-1/8"
3-1/4"
1-17/32"
RIGHT VIEW
Wire
guide
Screw
..........................2X Thumb screw
..............................2X Wire guide
......................................2X 1/2"
No. 10 Pan-head screw
