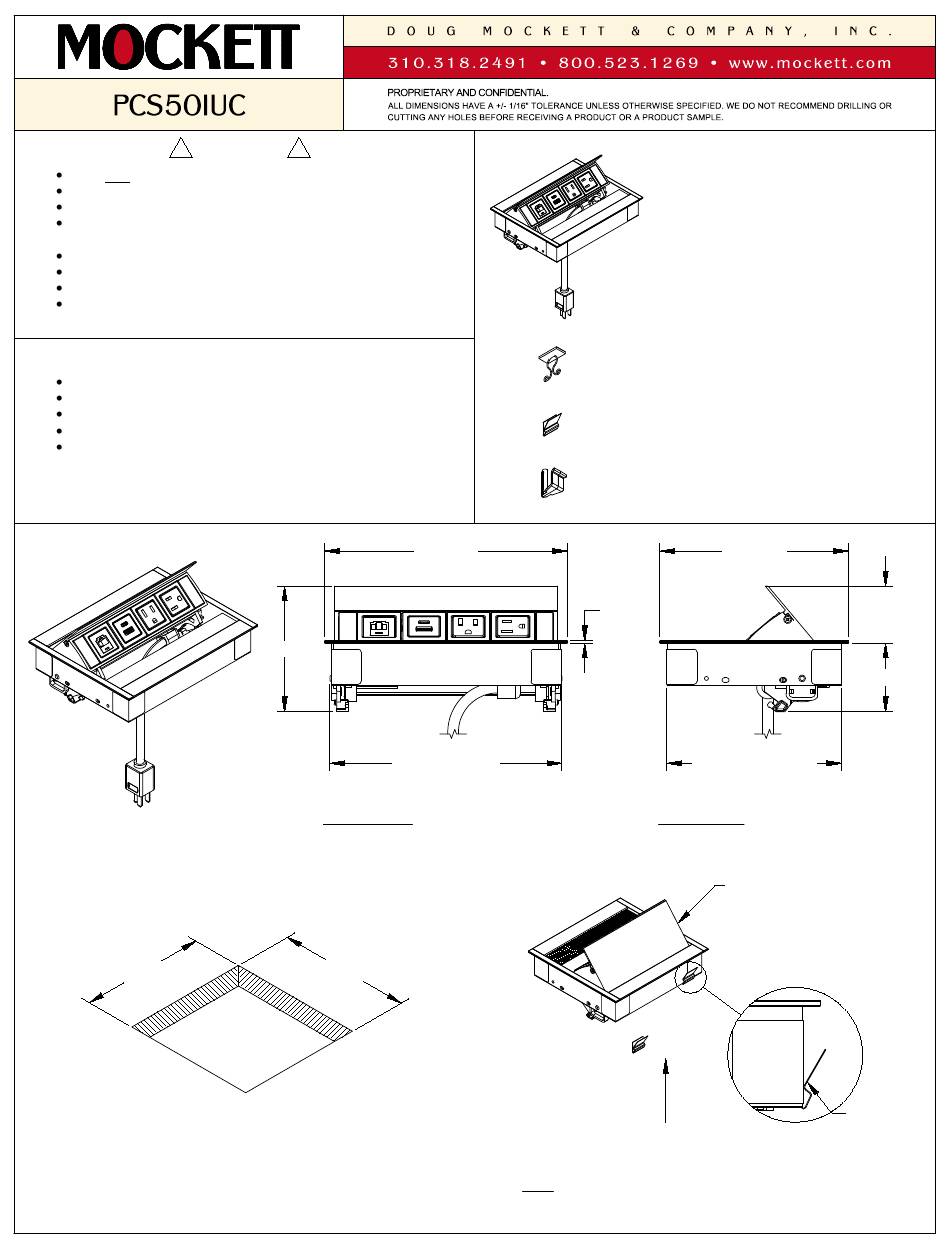

Mockett PCS50IUC Manual

!
Do NOT remove tape!
For indoor use only.
For use on a normally dry work surface.
If any malfunction occurs, do not attempt to disassemble or
repair.
Allow enough clearance for part operation.
Avoid liquid spills into outlet.
Do not insert foreign objects into the socket.
Avoid placing the unit in a high temperature environment or
near fire.
SPECIFICATIONS
6 ft. cord length.
Plug dimension is 1-11/32" X 1-1/32" X 7/8".
USB-A & USB-C ports are for charging use only.
Table thickness is 3/4" MIN. to 1-11/16" MAX.
Please use applicable adapter from data tree.
(SEE PCS DATA TREE PAGE FOR MORE INFORMATION.)
1
5-31/32"
Make a cutout in the desired location on your work surface.
Allow enough clearance for unit operation. DO NOT place unit
where cable is strained or trapped. Cut a hole at 7-7/8" X
5-31/32".
2023.12.20
WARNING
!
4-7/32"
(7-7/8" CUTOUT)
FRONT VIEW
7-7/8"
8-5/32"
7-13/16"
2
Place metal clips near the ends of the back of the unit.
(NOTE: Metal clips are for use in hard surface material only as
an optional mounting means.)
1
TABLE OF CONTENTS
. . . . . . . . . . . . 1X PCS50IUC
. . . . . . . . . . . . .1X Wire Manager
. . . . . . . . . . . . . .2X Metal Clips
. . . . . . . . . . . . .2X Wing Clamps
6-11/32"
3/32"
5-27/32"
(5-31/32" CUTOUT)
RIGHT VIEW
PCS50IUC
1-29/32"
2-5/16"
Metal clip
