Mockett PCS124A/SURF Manual

PCS124A/SURF
!
·
For indoor use only.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
· Avoid placing the charger in a high temperature environment
or near fire.
SPECIFICATIONS
· 9 ft. cord length.
· USB-A ports are for charging use only.
·
Table thickness is 3/4"MIN. to 1-1/4" MAX.
1
1-5/8"
OVAL
CUT OUT

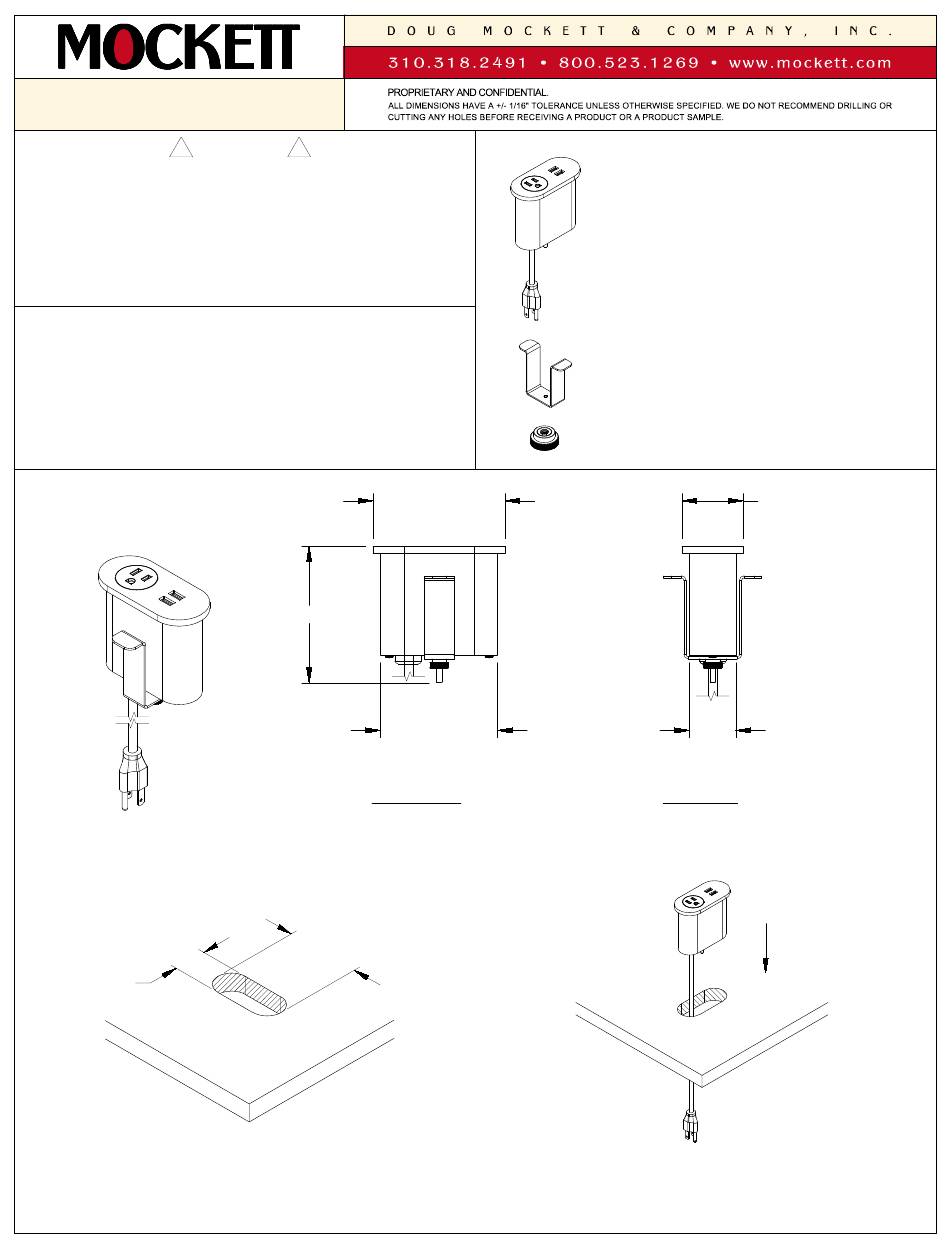

Make a cut out in the desired location on your work surface.
Cut the oval hole at 4" X 1-5/8". Allow enough clearance
for unit operation. DO NOT place unit where cable is strained
or trapped.
2022.09.12
WARNING
!
4-19/32"
FRONT VIEW
4" OVAL
CUT OUT
4-7/16"
3-15/16"
(4" OVAL
CUT OUT)
2
Guide the power cord through the cut out. Install the unit
into the cut out and make sure it is fully leveled onto the
surface.
1
TABLE OF CONTENTS
. . . . . . . . . . 1X PCS124A/SURF
. . . . . . . . . . . . . . . 1X Bracket
. . . . . . . . . . . . 1X Thumb Screw
2-1/16"
1-9/16"
(1-5/8" OVAL
CUT OUT)
SIDE VIEW
