Worksaver DBH-6000 Owner's Manual

3 pt. hitch bale spears
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

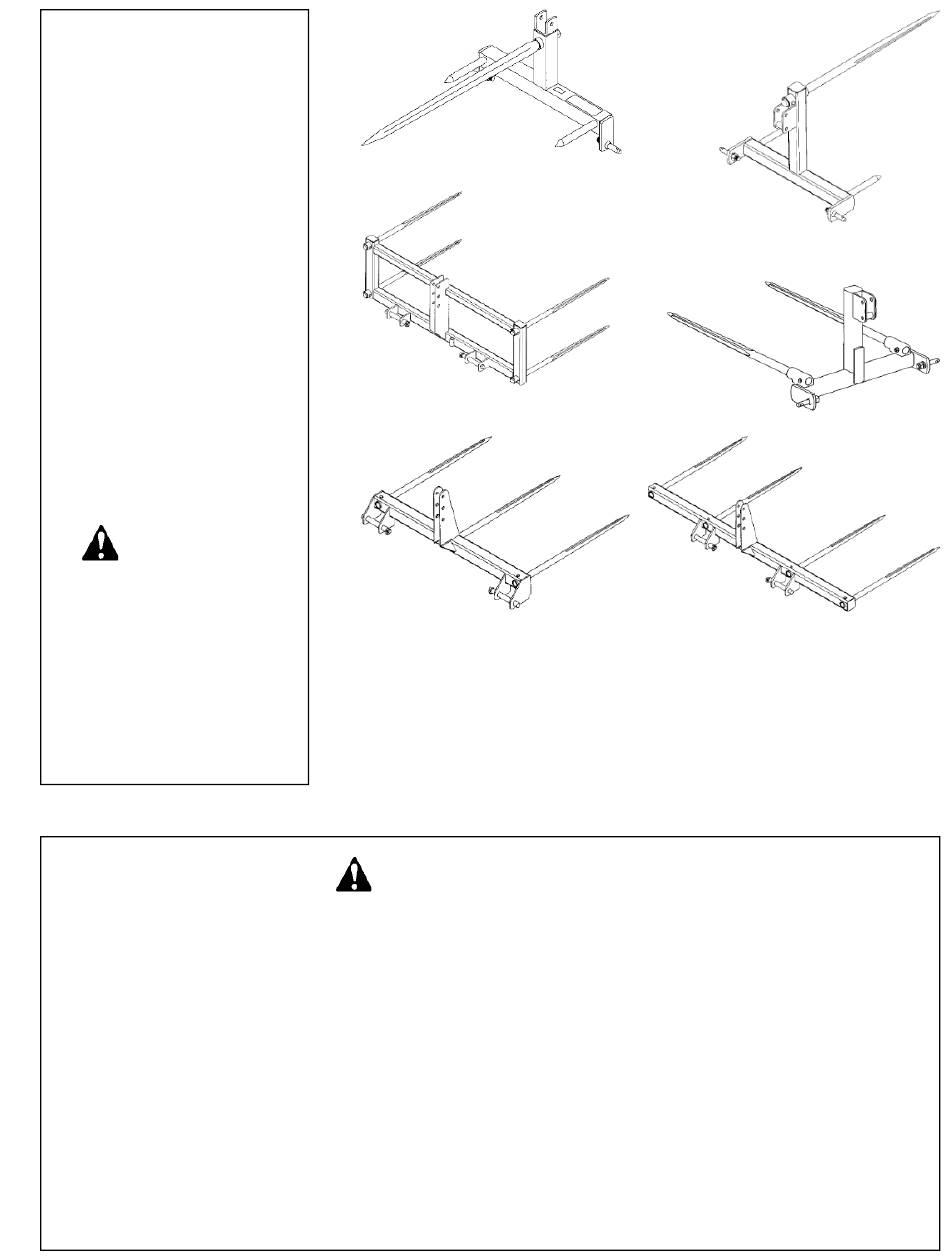

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
BSF-1523
HS-2200
HS-3000
HS-330
DBH-449
DBH-6000
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
BSF-1523
HS-330
3 PT. HITCH BALE SPEARS
Safety Instructions
Assembly & Mounting
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
DBH-6000
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
HS-2200
HS-3000
DBH-449
Maintenance
Repair Parts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBH-6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worksaver DBH-6000

Summary of Contents for Worksaver DBH-6000

  • Page 1 BSF-1523 HS-2200 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s BSF-1523 DBH-6000 HS-3000 HS-2200 HS-3000 HS-330 DBH-449 HS-330 DBH-6000 DBH-449 CAUTION For Safe Operation Read Rules And 3 PT. HITCH BALE SPEARS Instructions Carefully SI NO LEEINGLES, PIDA AYUDA Safety Instructions Maintenance A AIGUIEN QUE SI LO LEA Assembly &...
  • Page 2 Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Attachment here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...

  • Page 3: Limited Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.

  • Page 4: Understand Signal Words

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 6: Operational Safety

    SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Start power unit only when properly seated in the operator’s seat. Starting a power unit in gear can result in injury or death. Do not mount or dismount while the power unit is moving. Mount or dismount the power unit only when all moving parts are completely stopped.
  • Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Operate hydraulic controls from operator’s seat only. Remain at controls until operating cycle is complete. Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders at a safe distance. REMEMBER FALLING BALES CAN ROLL OR TUMBLE. Always insert spears into the bale securely.
  • Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Stop loader gradually when lowering or lifting loads. Operate the hydraulic controls smoothly, avoiding jerky operation. Allow for additional length of implement and bale on tractor while turning. Never allow anyone to walk or work under a raised implement. Be sure that people, livestock, or pets are not standing near the machine while operating.

  • Page 9: Transport Safety

    SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.

  • Page 10: Maintenance Safety

    SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement (or if working underneath, raise and block securely), shut off the engine, set the brakes, and remove the ignition keys. Be certain all moving parts on attachments have come to a complete stop before attempting to perform maintenance.
  • Page 11 SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation or when unhooking, stop the tractor, set the brakes, disengage the PTO, lower the attach- ment, shut off the engine and remove the ignition keys. Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit. Do not park equipment where it will be exposed to livestock for long periods of time.

  • Page 12: Safety Signs

    SAFETY SIGNS AMBER (DBH-449 only - front) #101261 RED REFLECTOR (DBH-449 & DBH-6000 only - rear) #101260 REPLACING SAFETY SIGNS —————————————————––––––– 1. Clean the area of application with nonflammable solvent. 2. Wash the same area with soap and water. 3. Allow the surface to fully dry.
  • Page 13 Cat. II / III* 3,000 lbs. Weigh the tractor and equipment. DO NOT GUESS DBH-449 Cat. II / III* 4,000 lbs. OR ESTIMATE! DBH-6000 Cat. II / III* 6,000 lbs. *Will also fit ASAE Quick Hitch. TRACTOR REQUIREMENTS AND PREPARATION ——————————————————...

  • Page 14: Operation

    Periodically check all bolts and nuts to make sure they the same position each time. are tight. The DBH-6000 has a stronger frame to handle two Replace safety signs and instruction decals if damaged bales that can weigh up to 6,000 lbs. total.
  • Page 15 BSF-1523 PARTS LIST...
  • Page 16 HS-2200 PARTS LIST Ref. Part No. Description Req’d. 832561 Main Frame Weldment (HS-2200) 830928 Spear, Bolt-In 2503012 Bolt 1/2"-13NC x 3" Hex Head Gr. 2 2502002 Washer 1/2" Springlock 2500003 Nut 1/2"-13NC Full Hex 590108 Draw Pin, Forged (Cat. I) 2504308 Cap, Plastic (80mm) 101277...
  • Page 17 HS-3000 PARTS LIST...
  • Page 18 HS-330 PARTS LIST Ref. Part No. Description Req’d. 832581 Main Frame Weldment (HS-330) 830928 Spear, Bolt-In 2503112 Bolt 1/2"-13NC x 5" Hex Head Gr. 2 2502002 Washer 1/2" Springlock 2500003 Nut 1/2"-13NC Full Hex 830290 Pin, Hitch 590126 Lift Arm Bushing 590006 Linch Pin 7/16"...
  • Page 19 DBH-449 PARTS LIST Ref. Part No. Description Req’d. 832591 Main Frame Weldment (DBH-449) 830928 Spear, Bolt-In 2503112 Bolt 1/2"-13NC x 5" Hex Head Gr. 2 2502002 Washer 1/2" Springlock 2500003 Nut 1/2"-13NC Full Hex 830290 Pin, Hitch 590126 Lift Arm Bushing 590006 Linch Pin 7/16"...
  • Page 20 DBH-6000 PARTS LIST...
  • Page 21 NOTES...

  • Page 22: Safety Requirements

    A HOLIDAY FROM ACCIDENTS! SI NO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. JUNE 2015 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-HH022-OG...
