OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
BSF-1523
BSFA-20
HS-2200
HS-3000
HS-330
DBH-449
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
BSF-1523
BSFA-20
HS-330
3 PT. HITCH BALE SPEARS
Safety Instructions
Assembly & Mounting
Operating Instructions
CAUTION
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
HS-2200
HS-3000
DBH-449
Maintenance
Repair Parts
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Worksaver BSF-1523
Summary of Contents for Worksaver BSF-1523

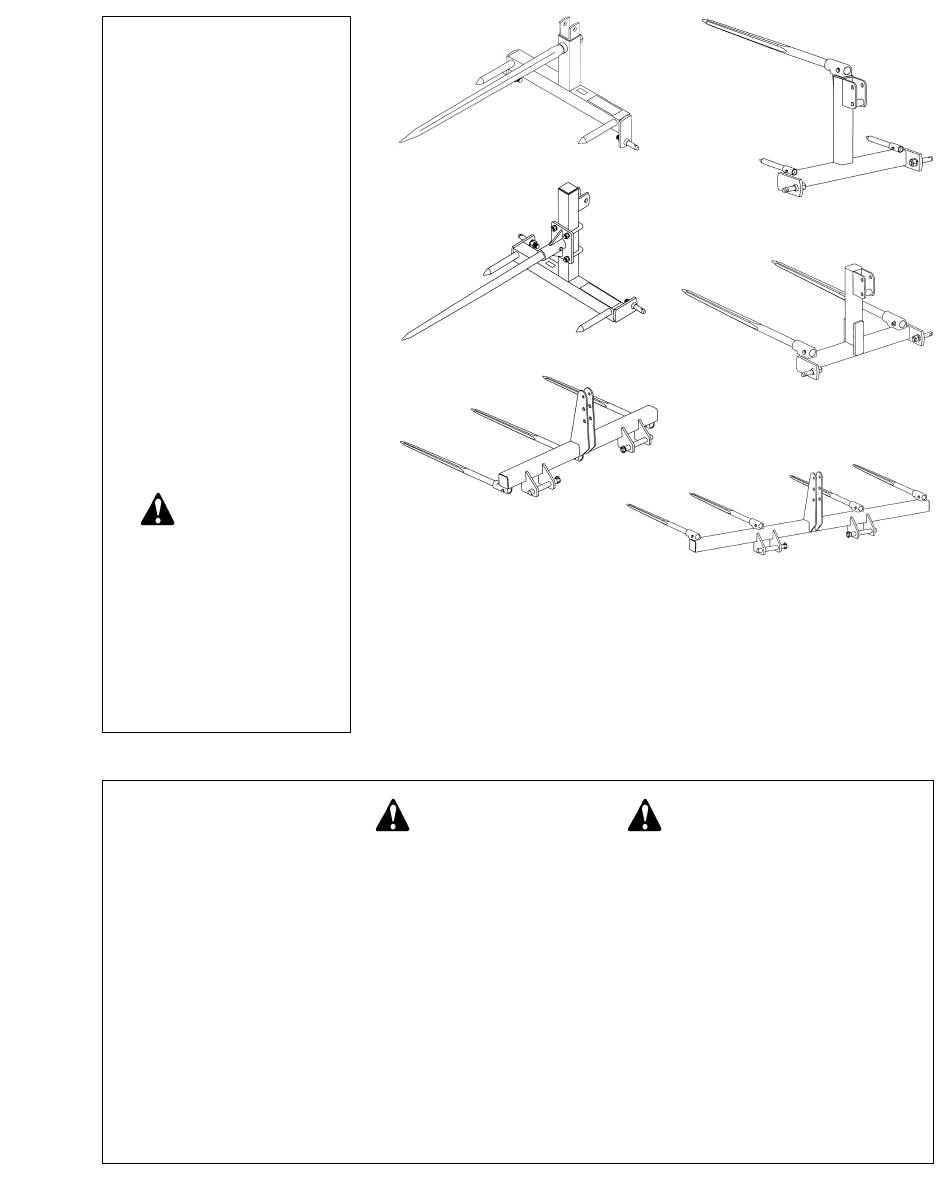

- Page 1 BSF-1523 HS-2200 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s BSFA-20 BSF-1523 HS-3000 BSFA-20 HS-2200 HS-3000 HS-330 HS-330 DBH-449 DBH-449 CAUTION For Safe Operation Read Rules And Instructions Carefully 3 PT. HITCH BALE SPEARS SINO LEEINGLES, PIDA AYUDA Safety Instructions Maintenance A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS Assembly &...
-
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Attachment here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY... -
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability. -
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. - Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
- Page 6 SAFETY INSTRUCTIONS (continued) SAFETY TRAINING Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY A heavy load can cause instability in driving a tractor. Make sure the front or rear of the tractor is properly counter-balanced with weights. Always drive slowly – especially around turns. An unstable tractor could steer badly and possibly tip over, causing injury or death.
- Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Operate hydraulic controls from operator’s seat only. Remain at controls until operating cycle is complete. Stop loader gradually when lowering or lifting loads. Operate the hydraulic controls smoothly, avoiding jerky operation. Allow for additional length of implement and bale on tractor while turning. Never allow anyone to walk or work under a raised implement.
- Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
- Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. - Keep service area clean and dry. - Be sure electrical outlets and tools are properly grounded. - Use adequate light for the job at hand. Make sure there is plenty of ventilation.
- Page 11 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY (continued) After servicing, be sure all tools, parts and service equipment are removed. Check to ensure all safety signs are installed and in good condition. (See exploded view parts section for location.) Never replace hex bolts with less than grade five bolts unless otherwise specified, i.e. shear bolts. Refer to bolt torque chart for head identification marking.
-
Page 12: Safety Signs
SAFETY SIGNS BE CAREFUL! Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure washer; high-pressure water can enter through very small scratches or under edges of decals causing them to peel or come off. -
Page 13: Instructions
“locked up” position at all times. penetration into and withdrawal from bales. The models BSF-1523, BSFA-20, HS-2200, and HS-3000 will handle one round bale. The model HS-330 WARNING! handles mid-size square bales and the model DBH-449 When using the unit, a minimum 20% of tractor and handles two round bales at the same time. - Page 14 Read the safety rules and safety signs on pages 3-11. between the parts. CAUTION! MODEL: BSF-1523 Be sure your tractor is in good condition. Read Install the long forged main spear into the socket in the all the safety precautions and make sure all tractor main frame.
-
Page 15: Parts Lists
BSF-1523 PARTS LIST... - Page 16 BSFA-20 PARTS LIST...
- Page 17 HS-2200 PARTS LIST...
- Page 18 HS-3000 PARTS LIST...
- Page 19 HS-330 PARTS LIST...
- Page 20 DBH-449 PARTS LIST...
- Page 21 A HOLIDAY FROM ACCIDENTS! SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. JULY 2009 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-HH022-OG...
