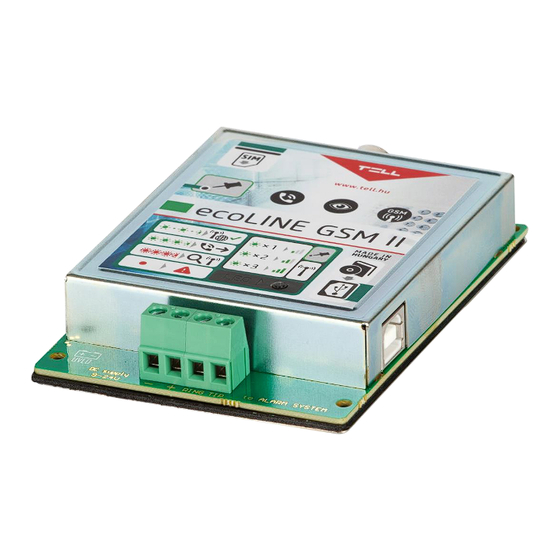

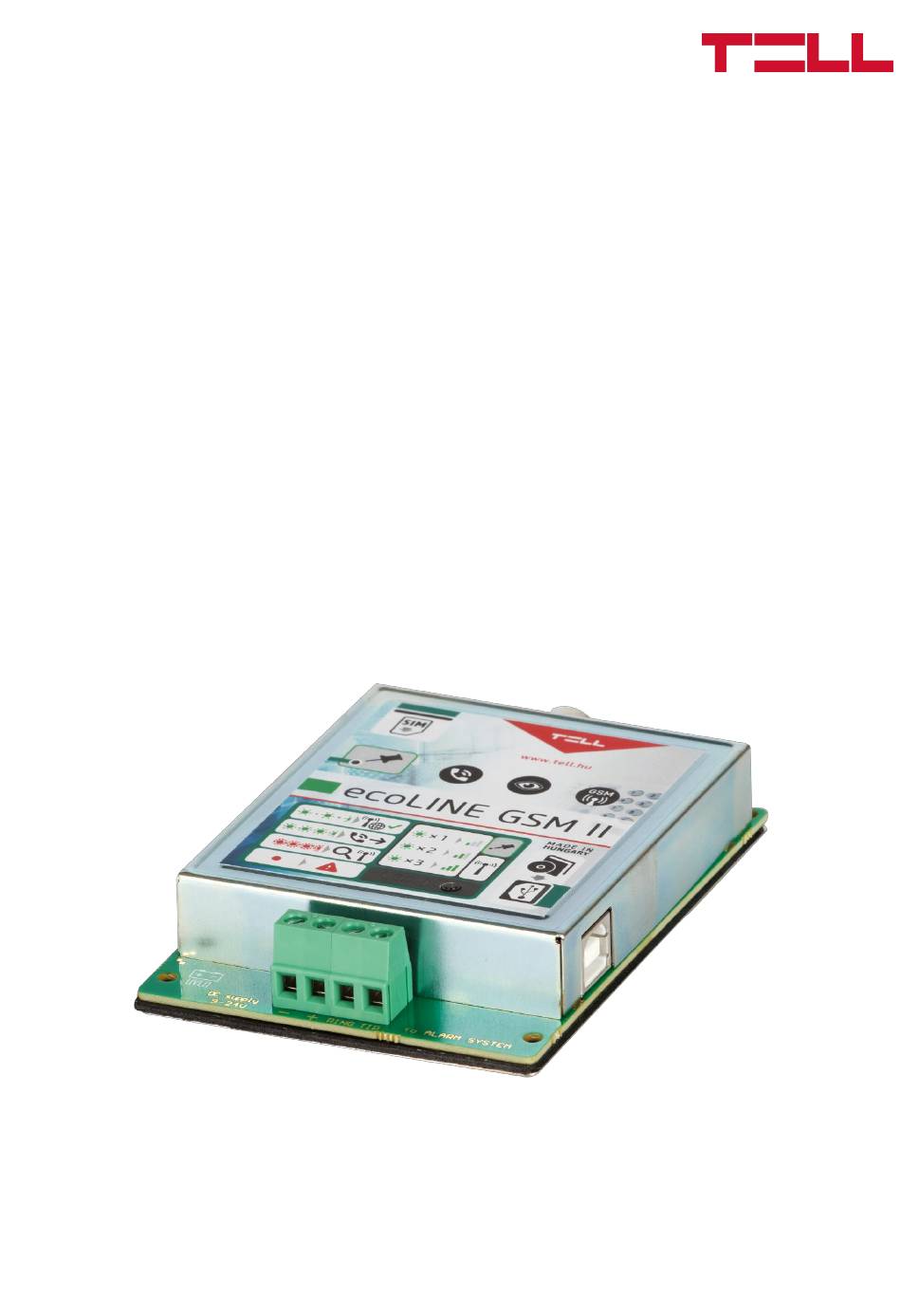

- Page 1 GSM II INSTALLATION AND APPLICATION MANUAL for module version V5.01 Document version: 1.62 01.08.2022...
-
Page 2: Table Of Contents
Table of contents 1 Application area ......................... 3 2 Functions ........................... 3 3 Wiring diagram ........................3 4 Installation guide ........................ 4 4.1 Mounting ........................4 4.2 Putting into operation ....................4 4.3 Status LED signals ..................... 5 4.4 Under Voltage Lock Out (UVLO) function ..............5 5 Technical details ........................ -
Page 3: Application Area
1 Application area Adaptation to GSM network of alarm control panels which are equipped with PSTN line communicator to send reports to monitoring station using DTMF based protocols (Contact ID, Ademco Express); the module makes possible the installation of such alarm systems in places where PSTN line is not available but reporting to monitoring station is required. -
Page 4: Installation Guide
TELL, which we expressly recommend using for our communicators. • Recommended TELL power supply for use with an alarm control panel: TT40VA-16VAC/24VDC, which provides power feed (16V AC) also for the alarm control panel at the same time. -
Page 5: Status Led Signals
4.3 Status LED signals Green flashes by 1 second, Red is not lit GSM connection is OK, idle state Green flashes quickly GSM call is in progress Red flashes quickly Connecting to the network is in progress Red is continuously lit Error 4.4 Under Voltage Lock Out (UVLO) function The product is provided with built-in automatic power disconnection (Under... -
Page 6: Settings
6 Settings • Setting the phone number for SMS forwarding function The module can forward the SMS messages received on the inserted SIM card to one configurable mobile phone number. To configure the phone number, connect a phone handset to the module’s “TIP-RING” terminals, then pick up the receiver and dial the following: •... - Page 7 • Configuring by SMS commands It is possible to configure the module by sending the appropriate command in SMS to the module’s phone number from the SUPERUSER phone number. After receiving a command, the module sends a response SMS, except for the SUPERUSER registration.
-
Page 8: Volume Adjusting Application
7 Volume adjusting application The module’s USB storage contains a volume adjusting application (Volsetter.exe), which can be used to adjust the in-call volume levels, if necessary and justified. Adjusting may be necessary if voice quality or volume problem is experienced while using the module with the given GSM service provider’s SIM card. -
Page 9: Updating The Firmware
Updating the firmware TELL always releases its products with the latest firmware version. However, as our products are being continuously improved, new firmware updates may occasionally be released for the products, which may include new features along with bug fixes.
