GB
A. Programme selector
B. Time display
C. "Start delay" button
D. "Variable spin" button
E. "Start/Pause" button
F. Programme sequence indicator
G. "Reset" button
H. "Door open" indication
Care
Programme
Labels
Cotton
Cotone
40 - 60 - 95 °C
40 - 60 - 95°C
Synthetics
Sintetici
30 - 40 - 60 °C
30 - 40 - 60°C
Delicates
Delicati
30 - 40 °C
30 - 40°C
Daily load
Misti
40 °C
40°C
Quick wash
Rapido
30 °C
30 °C
Wool
Lana
20 - 40 °C
20 - 40°C
Handwash
Lavaggio a mano
30 - 40 °C
30 - 40°C
Risciacquo &
Rinse & Spin
Centrifuga
Spin
Centrifuga
Gentle Spin
Centrifuga breve
Drain
Scarico
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

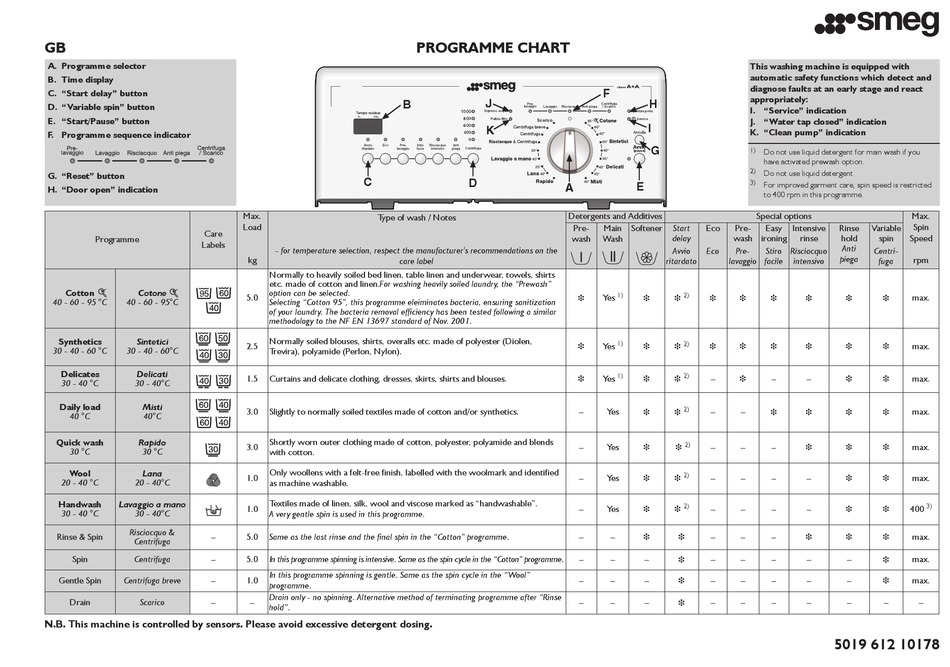

PROGRAMME CHART
B
C
Max.
Type of wash / Notes
Load
- for temperature selection, respect the manufacturer's recommendations on the
kg
care label
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts
etc. made of cotton and linen.For washing heavily soiled laundry, the "Prewash"
option can be selected.
5.0
Selecting "Cotton 95", this programme eleiminates bacteria, ensuring sanitization
of your laundry. The bacteria removal efficiency has been tested following a similar
methodology to the NF EN 13697 standard of Nov. 2001.
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen,
2.5
Trevira), polyamide (Perlon, Nylon).
1.5
Curtains and delicate clothing, dresses, skirts, shirts and blouses.
3.0
Slightly to normally soiled textiles made of cotton and/or synthetics.
Shortly worn outer clothing made of cotton, polyester, polyamide and blends
3.0
with cotton.
Only woollens with a felt-free finish, labelled with the woolmark and identified
1.0
as machine washable.
Textiles made of linen, silk, wool and viscose marked as "handwashable".
1.0
A very gentle spin is used in this programme.
5.0
Same as the last rinse and the final spin in the "Cotton" programme.
5.0
In this programme spinning is intensive. Same as the spin cycle in the "Cotton" programme.
In this programme spinning is gentle. Same as the spin cycle in the "Wool"
1.0
programme.
Drain only - no spinning. Alternative method of terminating programme after "Rinse
hold".
F
J
K
D
E
A
Detergents and Additives
Pre-
Main
Softener
wash
Wash
1)
Yes
1)
Yes
1)
Yes
Yes
Yes
Yes
Yes
This washing machine is equipped with
automatic safety functions which detect and
diagnose faults at an early stage and react
appropriately:
H
I. "Service" indication
J. "Water tap closed" indication
I
K. "Clean pump" indication
G
1)
Do not use liquid detergent for main wash if you
have activated prewash option.
2)
Do not use liquid detergent.
3)
For improved garment care, spin speed is restricted
to 400 rpm in this programme.
Special options
Start
Eco
Pre-
Easy
Intensive
delay
wash
ironing
rinse
Avvio
Eco
Pre-
Stiro
Risciacquo
ritardato
lavaggio
facile
intensivo
2)
2)
2)
2)
2)
2)
2)
Max.
Spin
Rinse
Variable
hold
spin
Speed
Anti
Centri-
piega
rpm
fuga
max.
max.
max.
max.
max.
max.
3)
400
max.
max.
max.
5019 612 10178
