P56500S
GB | Smoke Detector
Contents
Technical information ........................................................................................................2
Detector Description ........................................................................................................3
Installation ........................................................................................................................4
Mobile App ........................................................................................................................6
Putting the Device into Operation .....................................................................................8
Upkeep and Maintenance ................................................................................................10
GB | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P56500S and is the answer not in the manual?

Questions and answers

Related Manuals for Emos P56500S

Summary of Contents for Emos P56500S

  • Page 1: Table Of Contents

    P56500S GB | Smoke Detector Contents Technical information ......................2 Detector Description ......................3 Installation ........................4 Mobile App ........................6 Putting the Device into Operation ..................8 Upkeep and Maintenance ....................10 GB | 1...

  • Page 2: Technical Information

    This manual contains important safety information regarding the installation and operation of the detector. Read this manual carefully and store it safely for future use. Familiarise other residents of the building with the operation of the detector. Create an evacuation plan for the event of a fire and do a drill every month. All residents of the building should be familiar with the detector’s signals in order to be able to immediately react to them.

  • Page 3: Detector Description

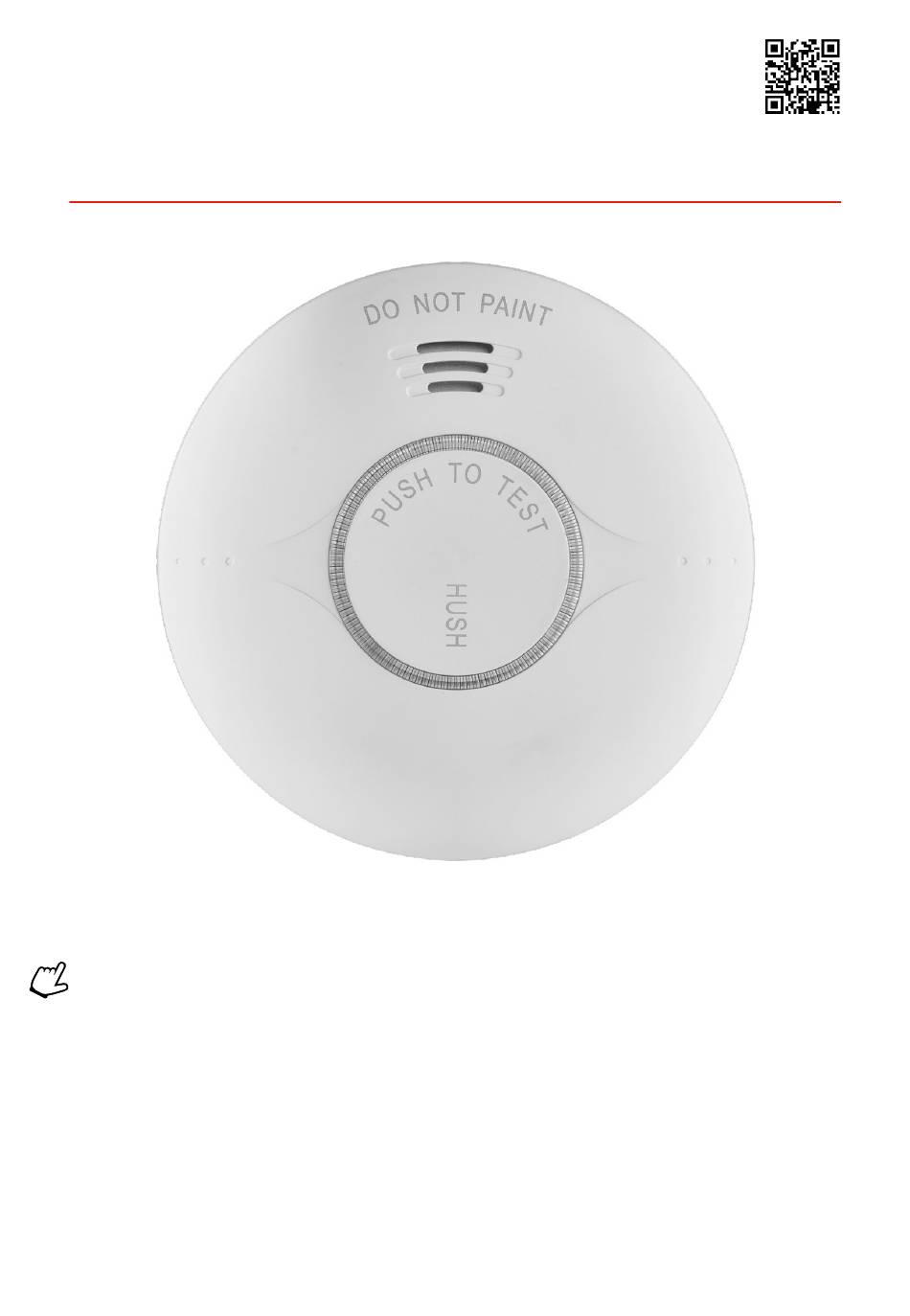

    Detector Description 1 – LED 2 – main button 3 – loud siren GB | 3...

  • Page 4: Installation

    Do not spray aerosol agents in the vicinity of or onto the warning device. Do not paint the warning device. 1 – holes in the ceiling 82.5 ±0.15 cm 2 – wall plugs 3 – mounting cover 4 – screws 5 – tightening direction 6 – loosening direction 2104103000_102-P56500S GB | 4...
  • Page 5 Mounting the Device on a Wall Drill two holes (ø 5 mm) into the wall (1); the distance between the holes should be 82 mm. Insert the attached wall plugs (2) into the holes, place the mounting cover (3) and attach it to the wall using screws (4).

  • Page 6: Mobile App

    Mobile App The device can be controlled using a mobile application for iOS or Android. Download the EMOS GoSmart app for your device. Tap the Log In button if you’ve used the app before. Otherwise, tap the Sign Up button and register.
  • Page 7 Activate Bluetooth and GPS on your mobile device. Tap Add Device in the app. Tap the GoSmart list on the left and tap the P56500S icon. Follow the instructions in the app and enter the name and password for your 2.4 GHz Wi-Fi network.

  • Page 8: Putting The Device Into Operation

    Putting the Device into Operation Insert batteries (2× 1.5 V AA) into the battery compartment on the back. Use 1.5 V alkaline batteries only. Never use 1.2 V rechargeable batteries; the device will not function due to the lower voltage. Make sure to insert the batteries properly and with the correct polarity! If the batteries are not inserted or are inserted incorrectly, the mounting cover will not fit onto the detector! Once the batteries are inserted, the red LED on the front of the detector will start flashing within 10 seconds,...
  • Page 9 ALARM WARNING If smoke is detected, the detector will start emitting an acoustic + optical signal. The detector will begin continuously and simultaneously beeping (3× beeps – pause) and flashing its red LED. The alarm will be active until the air clears. If an alarm triggers, immediately evacuate the building and make sure all other people have left as well.

  • Page 10: Upkeep And Maintenance

    You can find the manual at: http://www.emos.eu/download. Hereby, EMOS spol. s r. o. declares that the radio equipment type TSS380C-HW is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.emos.eu/download.

This manual is also suitable for:

Gosmart ts380c-hw
