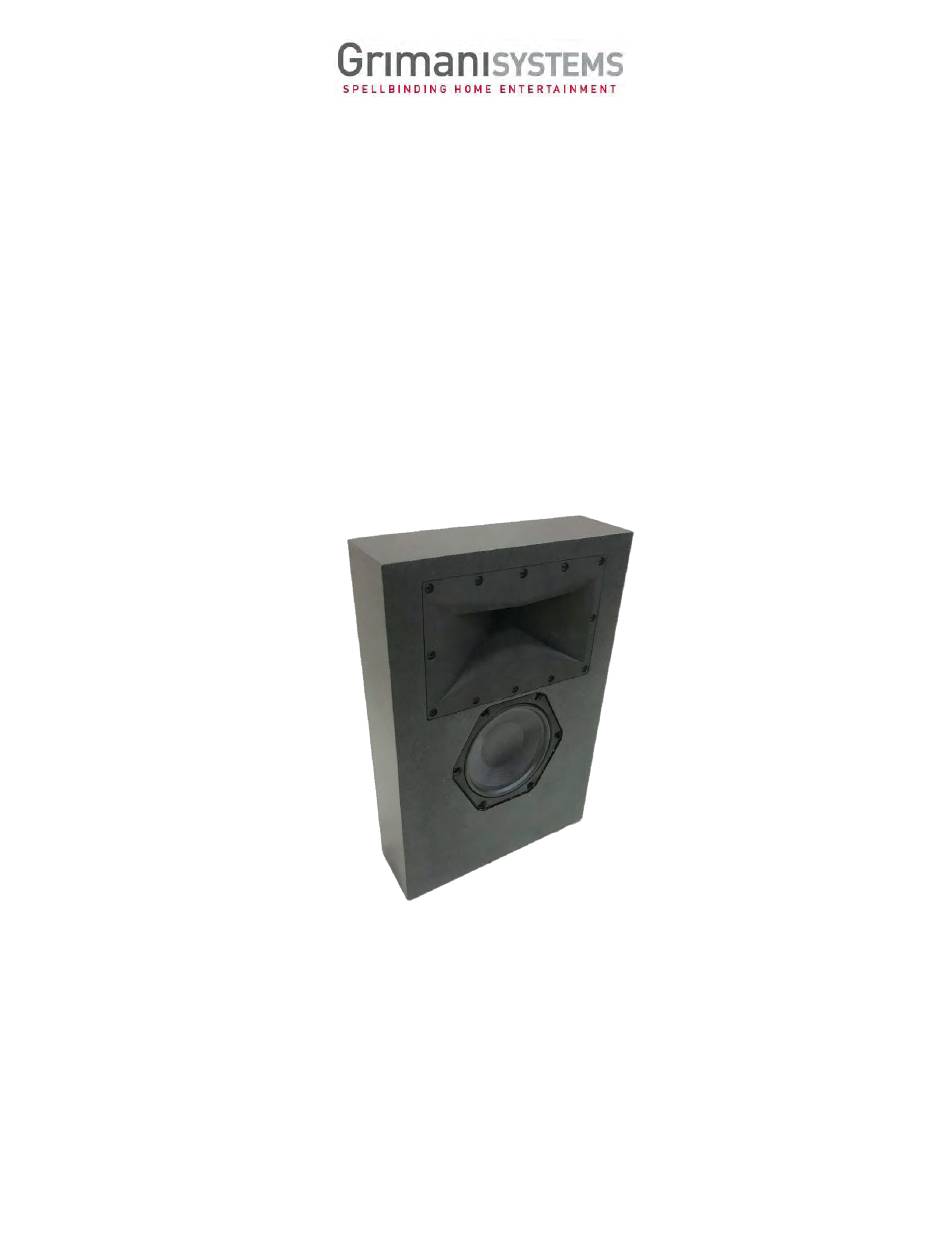

Rixos-S Speaker
Installation and Operation Manual
V4
August 17, 2021
61 Galli Drive, Suite B
|
Novato, CA 94949, USA
|
+1.415.883.1476
|
info@grimanisystems.com
|
www.grimanisystems.com
Rixos- S Installation and Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rixos-S and is the answer not in the manual?

Questions and answers

Related Manuals for Grimani Systems Rixos-S

Summary of Contents for Grimani Systems Rixos-S

  • Page 1 Rixos-S Speaker Installation and Operation Manual August 17, 2021 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual...
  • Page 2 100 Watts of available AC power in the range from 100V to 250V. We recommend prewiring one 120V-20A circuit, or a 220 / 240V – 15A for each group of ten Rixos-S speakers, with a quad outlet box near the rack-mount DSP amplifiers.
  • Page 3 (see Appendix 2). Contact Grimani Systems Technical Support for further details. See more information below for input connection diagrams. c. Speaker Wire Interface: The Rixos-S is fed with bi-amplification from a pair of DSP amplifier channels. The wiring is typically a “14-4” cable with external jacketing that meets all appropriate low-voltage electrical installation codes.
  • Page 4 On-Wall, visible. For this installation format, the Rixos-S is installed on a wall using the two supplied cleat bars as shown in Appendix 3 below. Each cleat bar has three fasteners holes, and you will need to select the right type for your wall structure.
  • Page 5 30 degrees below the waveguide aperture. Instructions on optimal placement and acoustical interface are all beyond the scope of this document, and are part of an engineering service from Grimani Systems. Grimani Systems Technical Support can assist with determining the best position upon request.
  • Page 6 Analog Audio In IP Network a. Power: The Rixos-S DSP Rack Amplifier ships with a detachable power cable. The receptacle is on the back panel. Plug the cable there, then to the mains outlet. The amplifier will auto-detect the input voltage. After powering up the amplifier, it will go through a few seconds of start-up sequence.
  • Page 7 Grimani Systems factory technician. 8. Limited Warranty The Rixos-S is warrantied to be free of manufacturing defects for a period of two years from the date of purchase. This limited warranty does not apply to failures due to misuse, excessive sound pressure, damage from handling and carriage, or any other defects that are outside the control of Grimani Systems, LLC.
  • Page 8 Appendix Balanced Wire connection 2 channel input connectors are placed on the back of the amplifier. Use inputs 1and 3. Do NOT connect inputs 2 and 4 Use Inputs 1 and 3 + G - + G - Amplifier Input Amplifier Input Unbalanced to Balanced Analog Wire connection 61 Galli Drive, Suite B...
  • Page 9 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 9...
  • Page 10 Appendix MuxLab 500028 Wiring Diagram For use in driving unbalanced signals to Phoenix inputs of DSP amplifiers One Balun can be used to drive two channels From White From Red RCA Input RCA Input Cat5 Cable - Pin - Pin + Pin + Pin Phoenix...
  • Page 11 Appendix 3 Rixos-S Installation Dimension Details On-Wall-Concealed Installation Concealed by stretched fabric or acoustically transparent video display screen 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 11...
  • Page 12 On-Wall-Concealed Installation Part 2 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 12...
  • Page 13 On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 13...
  • Page 14 On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 14...
  • Page 15 In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 15...
  • Page 16 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 16...
  • Page 17 Appendix 4 Rixos-SR Installation Dimension Details In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 17...
  • Page 18 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 18...
  • Page 19 In-Wall Installation Front View 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 19...
  • Page 20 Appendix 5 Rixos-SD Installation Dimension Details On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 20...
  • Page 21 On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 21...
  • Page 22 In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 22...
  • Page 23 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 23...
  • Page 24 Appendix 6 Rixos-SN Installation Dimension Details On-Wall-Concealed Installation Concealed by stretched fabric or acoustically transparent video display screen 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 24...
  • Page 25 On-Wall-Concealed Installation Part 2 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 25...
  • Page 26 In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 26...
  • Page 27 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 27...
  • Page 28 Appendix 7 Rixos-SNR Installation Dimension Details In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 28...
  • Page 29 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 29...
  • Page 30 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 30...
  • Page 31 In-Wall Installation Front View 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 31...
  • Page 32 Appendix 8 Rixos-SND Installation Dimension Details On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 32...
  • Page 33 On-Wall-Visible Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 33...
  • Page 34 In-Wall Installation 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 34...
  • Page 35 In-Wall Installation In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 35...
  • Page 36 Appendix 9 – Sample System Wiring Diagram 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos- S Installation and Operation Manual p. 36...

  • Page 37: Mounting Kit Options

    Analog Balanced & EQ Over LF EQ & Amp Lo Out EQ/Amp/Spkr Block Diagram Multiple Cabinet Configurations Rixos-S Rixos-SD 2~4 Channel DSP Power Amp 2 channels per speaker Mounting Kit Options: On-wall – Concealed by screen or stretched 4.9” 13”...
