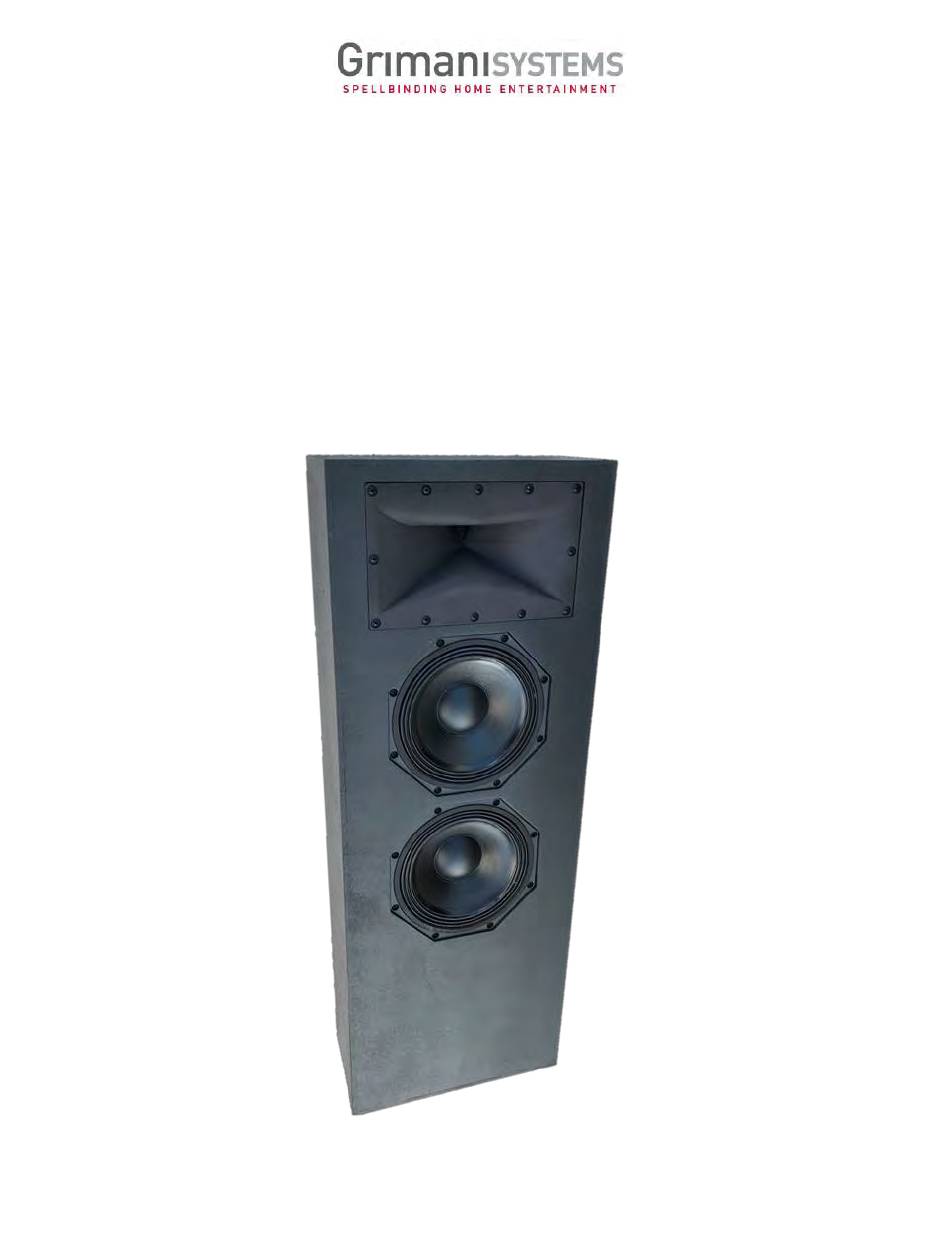

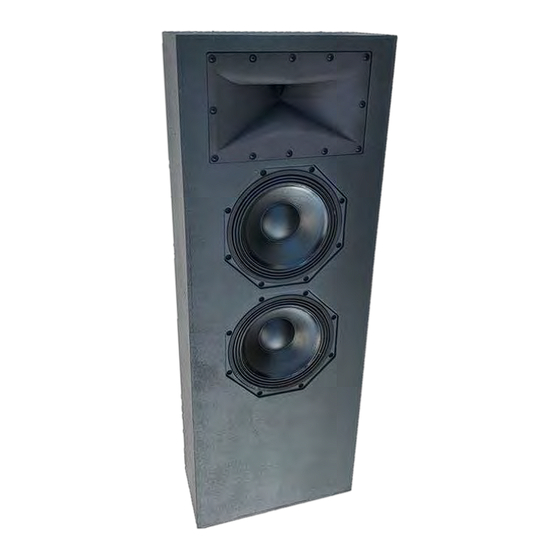

- Page 1 Rixos-L Speaker Installation and Operation Manual July 22, 2020 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual...
- Page 2 600 Watts of available AC power in the range from 100V to 250V. We recommend prewiring one 120V-20A circuit, or a 220 / 240V – 15A for each group of eight Rixos-L speakers, with a quad box near the rack-mount DSP amplifiers.
- Page 3 It is also possible to use Cat5 or Cat 6 cabling to feed a balanced signal to the Rixos-L amplifier, terminating the signal pairs at the Phoenix input connector. A few manufacturers, including MuxLab (model 500028) and Audio Control (BLD-10) make unbalanced to Cat5 converters which can be used for unbalanced feeds (see Appendix 2).
- Page 4 On-Wall, visible. For this installation format, the Rixos-L is installed on a wall using the two supplied cleat bars as shown in Appendix 3 below. Each cleat bar has three fasteners holes, and you will need to select the right type for your wall structure.
- Page 5 In-Wall, with finishing grille. For this installation format, the Rixos-L is installed in a wall cutout using the supplied installation brackets as shown in Appendix 3 below. For fastening the installation brackets to sheetrock use the supplied 1/4" x 1 1/2" backer plates that are adhered with thin double-side tape to the back side of the drywall.
- Page 6 Analog Audio In IP Network a. Power: The Rixos-L DSP Rack Amplifier ships with a detachable power cable. The receptacle is on the back panel. Plug the cable there, then to the mains outlet. The amplifier will auto-detect the input voltage. After powering up the amplifier, it will go through a few seconds of start-up sequence.
- Page 7 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 7...
- Page 8 Grimani Systems factory technician. 8. Limited Warranty The Rixos-L is warrantied to be free of manufacturing defects for a period of two years from the date of purchase. This limited warranty does not apply to failures due to misuse, excessive sound pressure, damage from handling and carriage, or any other defects that are outside the control of Grimani Systems, LLC.
- Page 9 Appendix Balanced Wire connection 2 channel input connectors are placed on the back of the amplifier. Use input 1. Do NOT connect inputs 2, 3 and 4 Use Input 1 + G - + G - Amplifier Input Amplifier Input Unbalanced to Balanced Analog Wire connection 61 Galli Drive, Suite B Novato, CA 94949, USA...
- Page 10 Appendix MuxLab 500028 Wiring Diagram For use in driving unbalanced signals to Phoenix inputs of DSP amplifiers One Balun can be used to drive two channels From White From Red RCA Input RCA Input Cat5 Cable - Pin - Pin + Pin + Pin Phoenix...
- Page 11 Appendix 3 Rixos-L Installation Dimension Details On-Wall / Concealed 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 11...
- Page 12 On-Wall / Concealed 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 12...
- Page 13 On-Wall / Visible 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 13...
- Page 14 On-Wall / Visible 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 14...
- Page 15 In-Wall 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 15...
- Page 16 In-Wall In-Wall – Fastening and grille detail 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 16...
- Page 17 Appendix 4 – Sample CinemaTwo System Wiring Diagram 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com Rixos-M Installation and Operation Manual p. 17...
-
Page 18: Mounting Kit Options
Lo-Mid Out LF EQ & Amp Lo Out EQ/Amp/Spkr Block Diagram 4 Channel DSP Power Amp Rixos-L 3 channels per speaker Mounting Kit Options: On-wall – Concealed by screen or stretched fabric: Three shock-mount L Brackets On-wall – Visible: Fabric shroud with painted end caps &...
