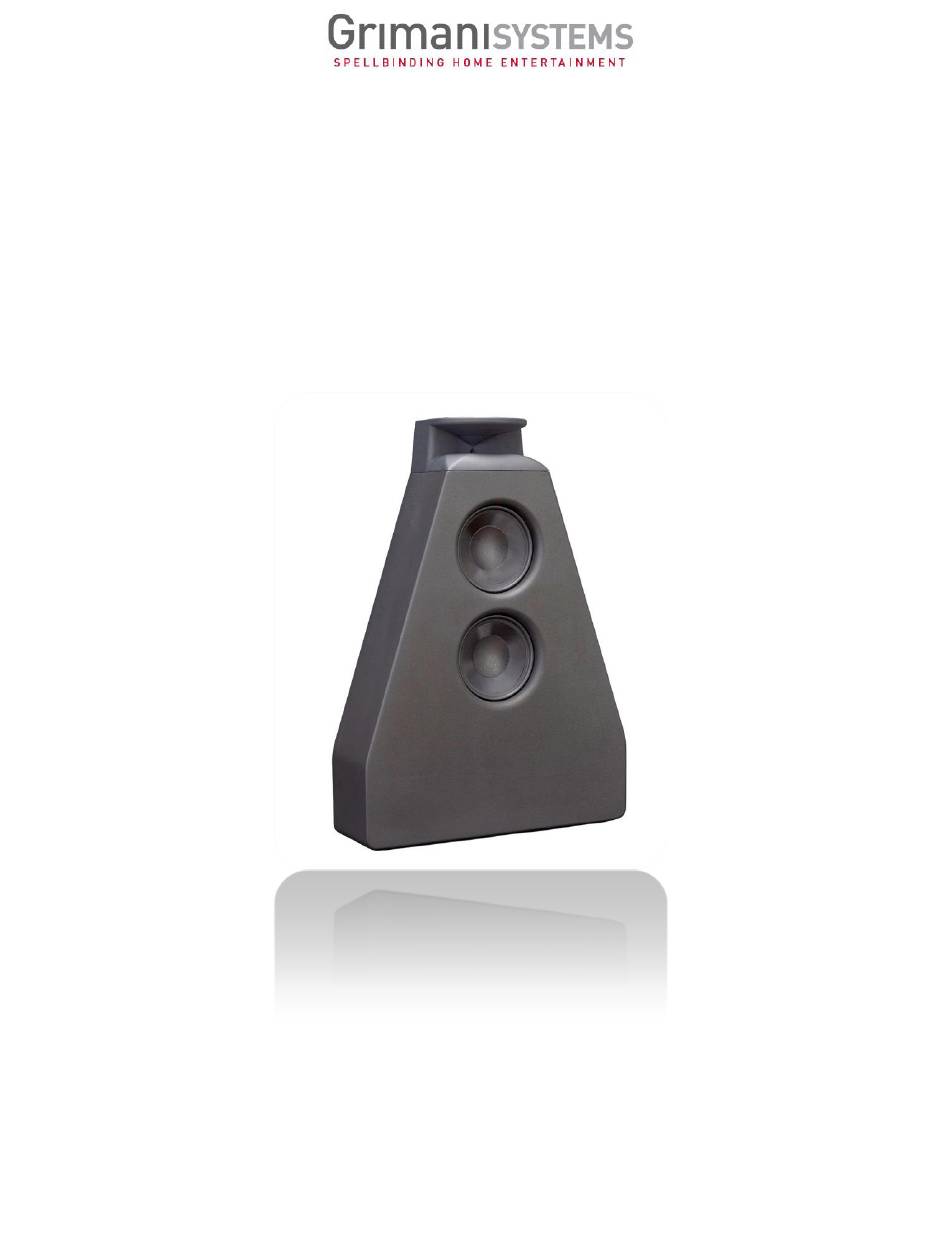

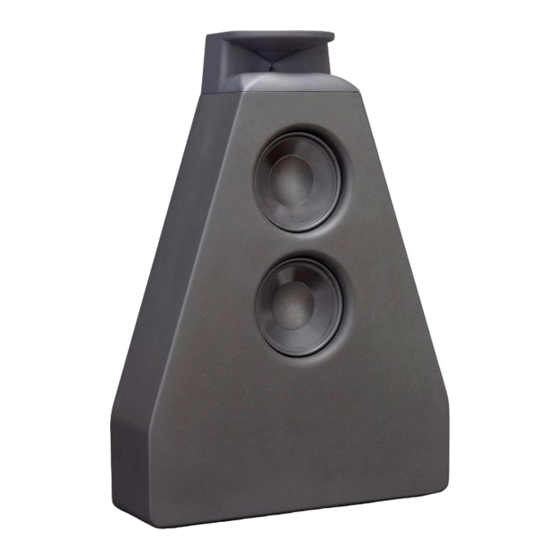

- Page 1 Delta Speaker Installation and Operation Manual April 25, 2017 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com...
- Page 2 Keep the box and packing material in case you need to ship it back for returns, maintenance or upgrades. 2. Prewire. Power, Signal, and Control network should be prewired to each Delta speaker a. Power: The Delta is an active speaker with built-in signal processing and amplification. It requires about 600 Watts of available AC power in the range from 100V to 250V.
- Page 3 Set the height such that the middle of the waveguide is 6 inches above seated ear height, or at the middle of the screen. Grimani Systems Technical Support can assist with determining the best position upon request.
- Page 4 4. Connections a. Power: The Delta ships with a 9 foot (2.75m) long locking detachable IEC power cable. The receptacle is on the connector plate at the bottom of the speaker. Plug the cable there, then to the mains outlet. To remove the ICE cable from the speaker, pull back the red locking pin before easing out the plug.
- Page 5 You can also use Cat5 cable with a balancing converter unit such as the MuxLabs 500028, as shown in Appendix 2, or the Audio Control BLD-10. c. Control signal: - The Delta is controlled and monitored through a USB interface (see 2.c above.). Assuming that you prewired to a wall-mounted or rack-mounted keystone punch-down RJ45 receptacle, connect a premade factory-terminated and certified patch cable, to the Cat5 to USB adapter, and plug this to the speaker.
- Page 6 6. Remote Monitoring The Delta speaker can be tested and verified from a remote location. You will need to dedicate a small Windows computer to be left enabled on an internet connection. It will need to run the Grimani Systems Armonia control application as well as a remote desktop application.
- Page 7 Appendix Balanced Analog Wire connection Unbalanced to Balanced Analog Wire connection...
- Page 8 Appendix MuxLab 500028 Wiring Diagram For use in driving unbalanced signals to XLR inputs of speakers One Balun can be used to drive two speakers From White From Red RCA Input RCA Input Cat5 Cable Pin 3 Pin 3 Pin 1 Pin 2 Pin 1 Pin 2...
