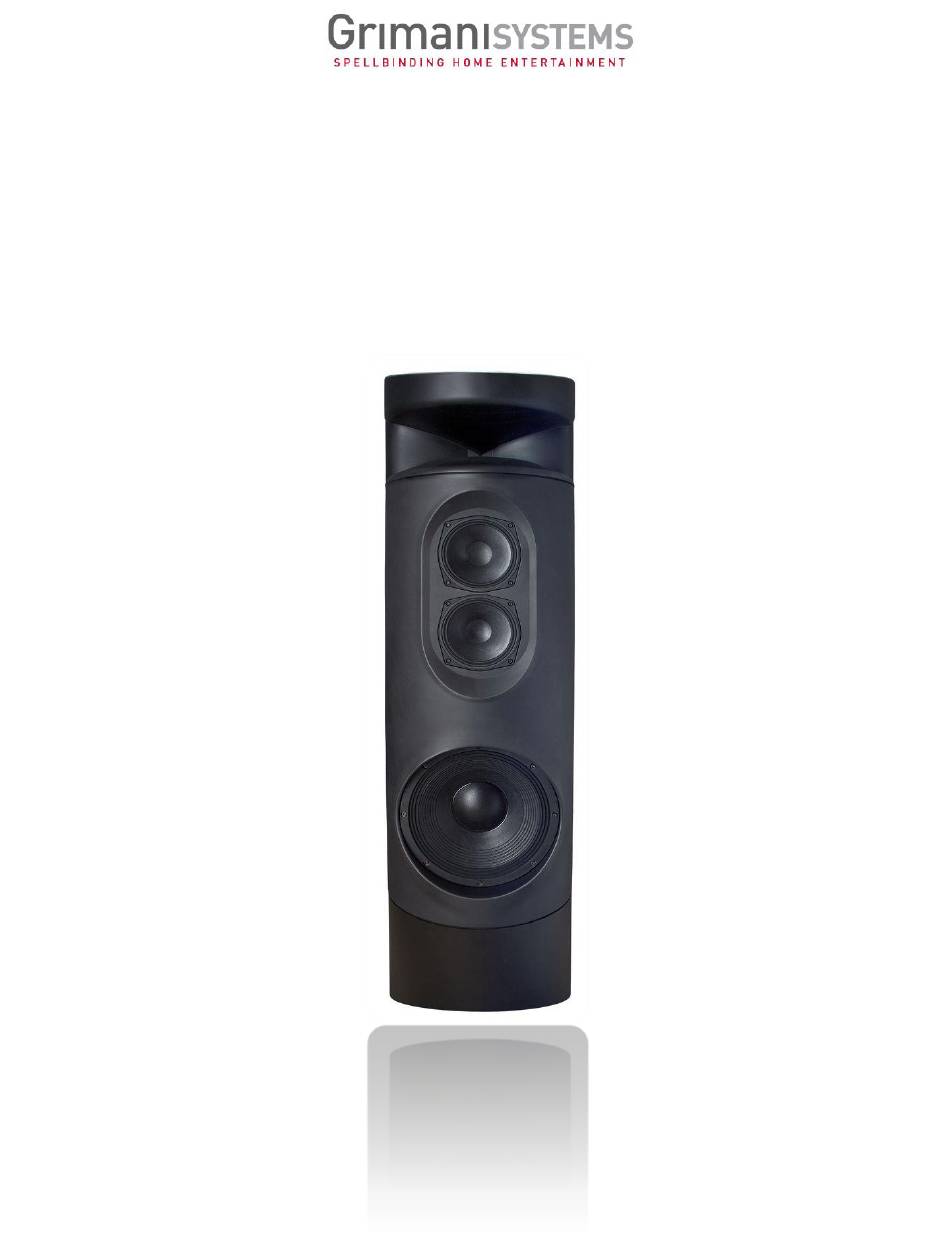

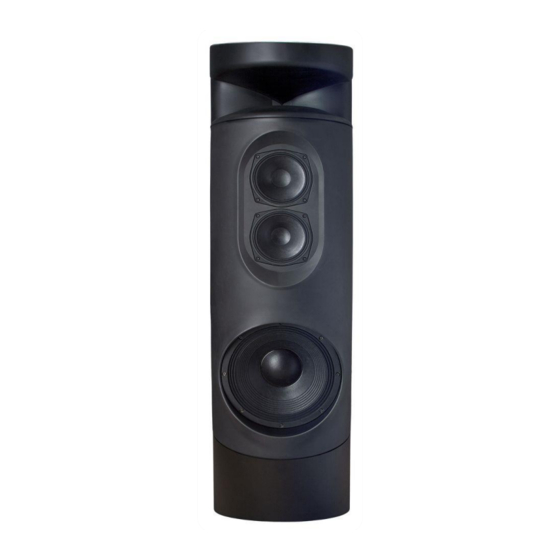

- Page 1 Alpha Speaker Installation and Operation Manual April 26, 2017 61 Galli Drive, Suite B Novato, CA 94949, USA +1.415.883.1476 info@grimanisystems.com www.grimanisystems.com...
- Page 2 1500 Watts of available AC power in the range from 100V to 250V. We recommend prewiring one 120V-20A circuit, or a 220 / 240V – 15A for each group of three Alpha speakers, with either a quad box near the three speakers, or a duplex near each speaker.
- Page 3 Choose appropriate fasteners. The Alpha weighs 65 lbs (32kg), and each fastener will need to be rated for 30 pounds (15kg) each, to account for vibration. For sheetrock walls, we suggest using EZAnchors and their associated screws.
- Page 4 Analog Audio through Out a. Power: The Alpha ships with a 9 foot (2.7m) long locking detachable IEC power cable. The receptacle is on the connector plate at the bottom of the speaker. Plug the cable there, then to the mains outlet.
- Page 5 The other network port can be used as network switch output to another networked product. The Alpha has an analog audio output over Cat5 that is fed out of the #4 signal processing chain of the DSP unit. It can be full-bandwidth to feed another speaker, low-pass-filtered to feed a subwoofer, or whatever other processing is required and programmed into the DSP unit.
- Page 6 AC Voltage is automatically set for a range from 100V AC to 250V AC. There is nothing to set. b. Audio Input Mode Select. The Alpha is shipped in the following default mode: XLR/IP over Cat5 with Analog backup. There is no need to change the input setting if you are going to use either of these two inputs.
- Page 7 Grimani Systems factory technician. 7. Limited Warranty The Alpha is warrantied to be free of manufacturing defects for a period of two years from the date of purchase. This limited warranty does not apply to failures due to misuse, excessive sound pressure, damage from handling and carriage, or any other defects that are outside the control of Grimani Systems, LLC.
- Page 8 Appendix Balanced XLR Wire connection Unbalanced to Balanced Analog Wire connection...
- Page 9 Appendix MuxLab 500028 Wiring Diagram For use in driving unbalanced signals to XLR inputs of speakers One Balun can be used to drive two speakers From White From Red RCA Input RCA Input Cat5 Cable Pin 3 Pin 3 Pin 1 Pin 2 Pin 1 Pin 2...
