Summary of Contents for Char-Griller Akorn E86714

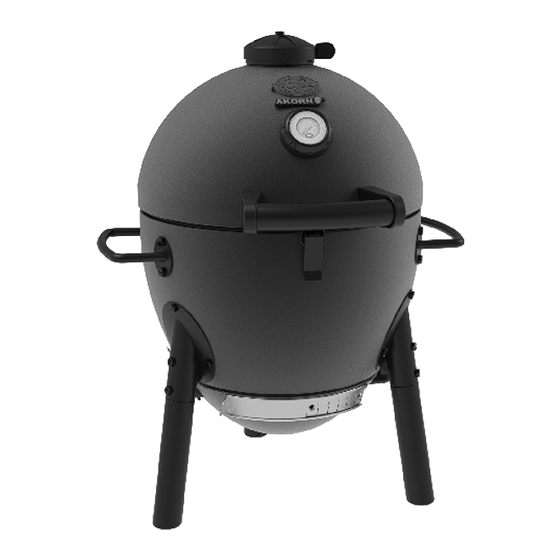

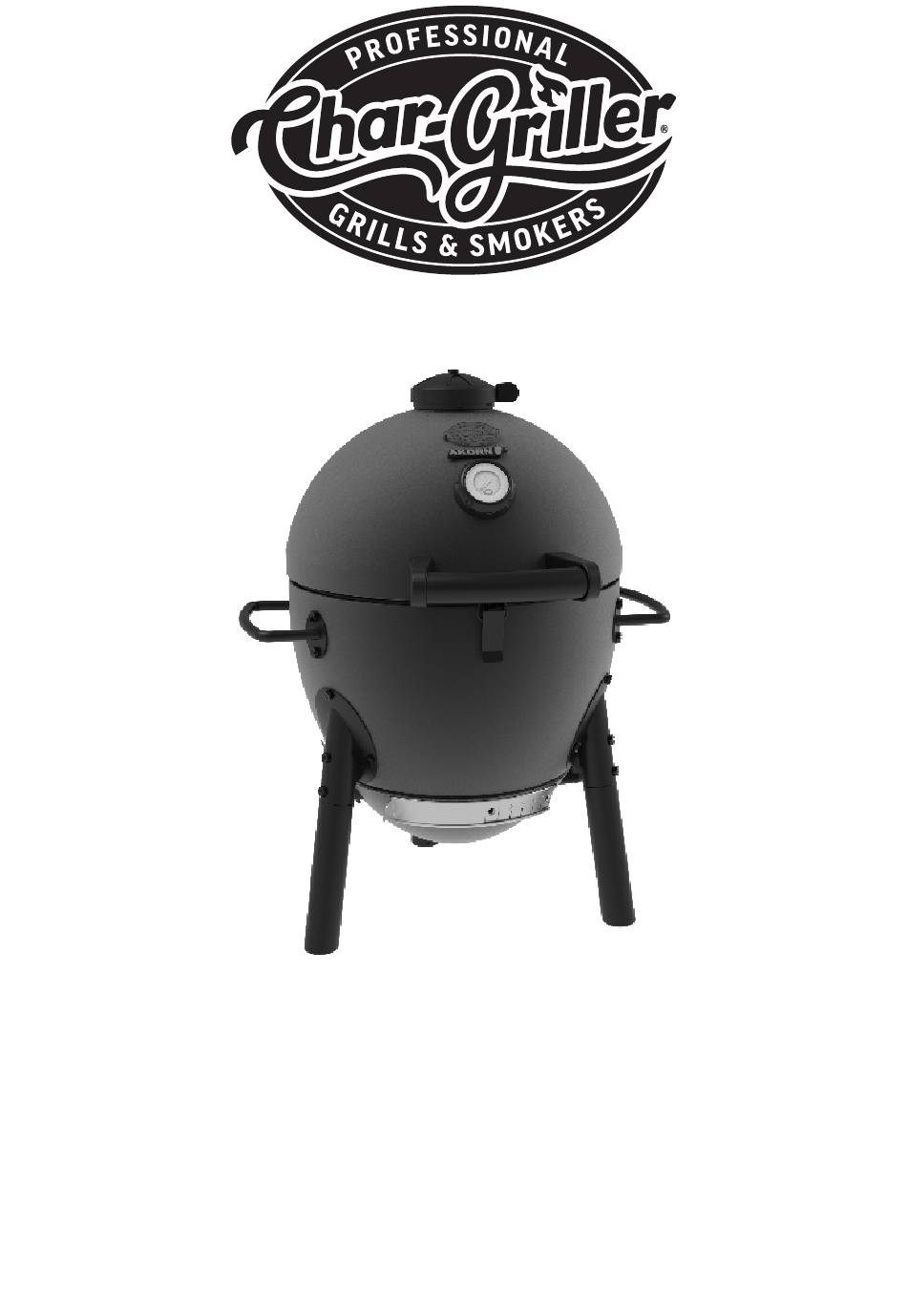

- Page 1 E86714, E6714 Akorn® Jr. Kamado Charcoal Grill Manual Code: 601850_240106_CM...
- Page 2 Welcome | Bienvenue | Bienvenido | Welkom! Willkommen | Benvenuti | Välkommen Assembly Images are shown first. Please read and follow all warnings and instructions before assembling and using the appliance. Les images de montage sont montrées en premier. Veuillez lire et suivre tous les avertissements et toutes les instructions avant de monter et d’utiliser l’appareil.
-
Page 3: Hardware Pack
Parts Diagram | Schéma des pièces | Diagrama de partes | Afbeelding van onderdelen Ersatzteildiagramm | Diagramma delle parti | Förteckning över delar Hardware pack Qty:4 Qty:25 Qty:4... - Page 4 Parts List Item DESCRIPTION Item DESCRIPTION Charcoal Grate Top Damper Fire Bowl Temperature Gauge Bezel Hinge Temperature Gauge Grill Body Left Handle Bracket Side Handle Handle Ash Pan Right Handle Bracket Temperature Gauge Gasket Leg Bracket Lid Seal Ash Pan Seal Foot Ash Pan Handle Inner Cooking Grate...
-
Page 10: Carbon Monoxide Hazard
Warning Code: SCG-230615-MSH FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE. WARNING • This manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembling and using the appliance. •... -
Page 11: Warnings And Important Safeguards
• Never use glass, plastic, or ceramic cookware in grill. Never place empty cookware in grill while in use. • Accessory attachments not supplied by Char-Griller® are not recommended and may cause injury. • Do not store grill with hot ashes or charcoal inside grill. Store only when fire is completely out and all surfaces are cold. - Page 12 Warning Code: SCG-230615-MSH STRUCTURAL PROXIMITY REQUIREMENTS Maintain a minimum distance of 10 ft (3 m) from 10 ft 10 ft rear, sides and top of grill to all overhead (3 m) (3 m) construction, walls, rails or other combustible construction materials. Maintain a minimum distance of 10 ft (3 m) from all 10 ft 10 ft...
-
Page 13: Lighting Instructions
Operating Instructions SETTING UP Set grill up on solid, flat surface with adequate wind shelter. Do not move grill while hot, and do not leave unattended during operation. This appliance is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions and that there is a minimum distance of 10 feet (3 m) from the side or rear of the appliance. - Page 14 This cooking method is ideal for roasting larger cuts of meat. It will allow you to achieve a low and slow cook while trapping moisture in the grill. This method is ideal for longer cooks. 1. To achieve an indirect heat, it is recommended to deflect the coals with the Char-Griller Smokin’ Stone or heat deflector. Smokin’ Stone sold separately.
-
Page 15: Cleaning And Care
Operating Instructions RELOAD If additional charcoal should be needed, use extreme caution. Cooking grate will be VERY hot. Remove the center of your cooking grate to add charcoal at anytime during the cook. Use the grate lifter or a tool to remove the center of the cooking grate. -
Page 16: Warranty Information
SURFACE RUST IS NOT CONSIDERED A MANUFACTURING OR MATERIALS DEFECT Char-Griller® grills are made of steel and if exposed to the elements rust will occur naturally. Please refer to the manual to review how to care for your grill properly.
