Sixteen (3-ton)
BEFORE INSTALLING OR
MAINTAINING
•
Read all instructions carefully. Failure
to do so could damage the equipment
or cause harm to yourself or others.
•
Acknowledge all warnings.
•
Only qualified technicians should
perform the installation.
•
Install in accordance with national and
local wiring regulations and
mechanical codes.

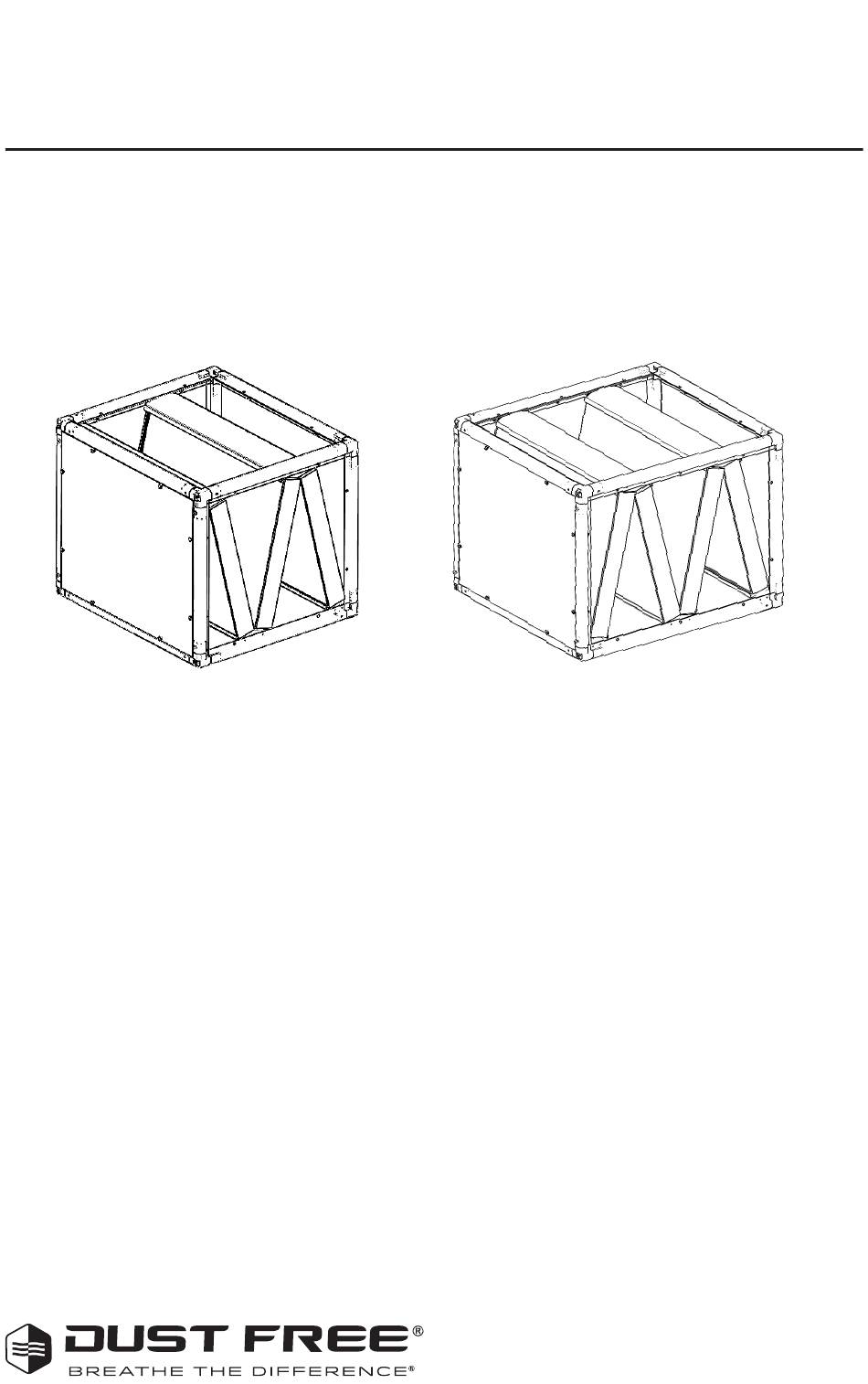

DUST FREE® SIXTEEN
Installation & Operation Manual
#08611
Media Air Cleaner
Sixteen (5-ton)
#08610
GENERAL
This product is designed to be installed
into an existing HVAC system for improved
indoor air quality.
INCLUDED INSIDE BOX
•
Air Cleaner
•
Installation & operation manual
•
Installation hardware
219345-00 Rev. 1A 05/24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dust Free SIXTEEN
Summary of Contents for Dust Free SIXTEEN
- Page 1 DUST FREE® SIXTEEN Media Air Cleaner Installation & Operation Manual Sixteen (3-ton) Sixteen (5-ton) #08611 #08610 BEFORE INSTALLING OR GENERAL MAINTAINING This product is designed to be installed into an existing HVAC system for improved • Read all instructions carefully. Failure indoor air quality.
-
Page 2: Specifications
(D x H x W) Filters Included EPA Establishment No. 73316-TX-1 Dust Free® uses independent labs and universities for product testing. Visit http://www.dustfree.com/testing. The product and technologies described are not medical devices, and are not intended to diagnose, treat, cure, or prevent any disease or illness. - Page 3 DP "H Size Range Flow Rate Initial Fractional Positive Negative (cfm) ( µ m) Efficiency(%) Pressure Pressure DUST FREE 0.018 SIXTEEN INSTALLATION & OPERATION MANUAL 0.017 0.3-0.4 96.5 ® 0.046 0.044 0.4-0.55 97.5 0.084 0.080 0.55-0.7 98.0 PERFORMANCE DATA - SIXTEEN 3-TON 1200 0.135...
-
Page 4: Parts Overview
SIXTEEN INSTALLATION & OPERATION MANUAL ® PARTS OVERVIEW Side Panels Filter Access Panels Flanges Filter Racks Hardware and Frames instructions Fig. 1 Sixteen 3-Ton component identification. Side Panels Filter Access Panels Flanges Frames Filter Racks Hardware and instructions Fig. 2 Sixteen 5-Ton component identification. - Page 5 DUST FREE SIXTEEN INSTALLATION & OPERATION MANUAL ® ASSEMBLY Before assembly, remove and identify all components. See page 3. Ensure the entire unit can be moved to the final installation location. If there is not adequate space, the individual components should be moved to the final installation location and assembled in place.
- Page 6 DUST FREE SIXTEEN INSTALLATION & OPERATION MANUAL ® ASSEMBLY (Cont’d) 4. Install both side access panels using the ¼-20 shoulder bolts. Each panel will require qty 8 shoulder bolts. See Fig. 6. 5. If desired for installation, mount the flanges to the inlet and outlet. See Fig. 7.
-
Page 7: Installation
® INSTALLATION Identify a suitable location to install the Dust Free Sixteen in the primary return duct of the HVAC system. A minimum clearance of 26.75” must be available in front of the filter access door to allow for filter replacement. -
Page 8: Installation Examples
DUST FREE SIXTEEN INSTALLATION & OPERATION MANUAL ® INSTALLATION EXAMPLES Transition Furnace Furnace Furnace Riser Fig. 8 Horizontal flow. Fig. 9 Upflow. Square to Round Square to Round transition transition Furnace Furnace Furnace Platform Fig. 10 Furnace platform. Fig. 11 Remote mount. -
Page 9: Warranty Registration
(See Figs. 15 and 16). Note: Sixteen (3-Ton) requires three filters. Sixteen (5-Ton) requires four filters. 4. Replace access panel. Fig. 14 Access panel removal and replacement. -
Page 10: Warranty
® WARRANTY Dust Free LP. warrants this Sixteen media air cleaner (product), for as long as the purchaser owns the real property where the product is installed, to be free from defects in materials and workmanship under normal use and service, for a period three (3) years from the date of installation. This warranty does not cover filters.
