Summary of Contents for Dust Free Series 2050
-

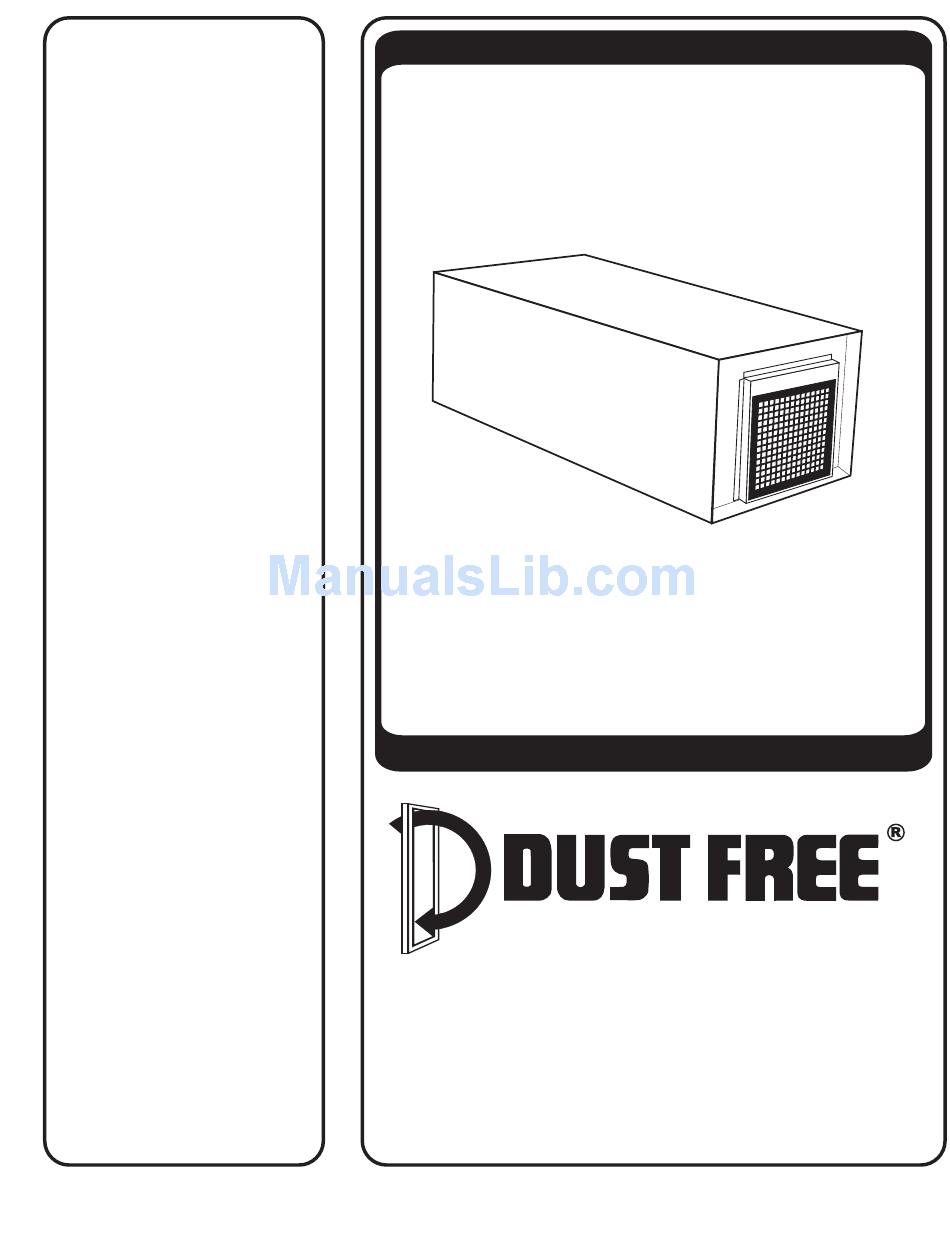

Page 1: Air Cleaners
Save This Manual For Future Reference Installation Service Manual Air Cleaners Series 2050 Series 2100 Read ALL INSTRUCTIONS carefully. Eramco • PO Box 519 • Royse City, TX 75189-0519 • 1-972-635-9565 Part No. 210102-00 Rev. 1C... -
Page 2: Table Of Contents
This manual contains the information necessary to install, operate and maintain your Dust Free ® Series 2050 or Series 2100. It contains essential information about the features of each machine. Pay special attention to the work environment and safety precautions. -
Page 3: Performance Overview
® ® The Dust Free Series 2050 in an unpainted, galvanized cabinet and the Dust Free Series 2100, in a painted cabinet, are designed to capture all types of particles in the air that pass through the filter in the cabinet. The collection of these airborne particles, coupled with the clean air discharged from the air cleaner back into the space, effectively dilutes the contamination level in the space. -
Page 4: Specifications
SPECIFICATIONS Dust Free Series 2050 Specifications ® Dimensions: 54"L X 26.13"W X 23.18"H (137 x 66.4 x 58.9 cm) Weight: 130 lbs. (56.7kg) Installed 170 lbs. (77.1kg) Shipping Blower: Direct Drive, Forward Curve Motor: 1 HP 115V, single phase, 50/60hz. -
Page 5: Unit Location
UNIT LOCATION ® The Dust Free air cleaners should be suspended from the ceiling at a height of 15ft or less above the floor. Position units as shown in the following illustrations. If you need additional installation advise contact the distributor/dealer from whom you purchased the equipment. Call the factory if the distributor/dealer is not available. -
Page 6: Mounting
Use cable or chain to suspend the unit. The Series 2100 is mounted in the same manner as the Series 2050 shown. Hang unit 15 feet or less above the floor. Be certain your ceiling is capable of supporting the weight of the unit before attempting to mount it. -
Page 7: Operation And Maintenance
FILTER MAINTENANCE ® The standard prefilter in your Dust Free unit may be either a permanent electrostatic air filter or a disposable air filter. The permanent electrostatic air filter works on the principle of static electricity. As air moves through the patented configuration of polypropylene filtration media static electric charges are created that filter dust, lint, pollen, mold spores, animal dander and other large particulates (greater than 10 microns) from the air. -
Page 8: Replacement Parts List
REPLACEMENT PARTS LIST Series 2050 Filter Layout Part No. Description 04073 Washable Electrostatic Pre-filter 04072 Disposable Synthetic Fiber Pre-filter, 12 Filters Per Box 04074 30% ASHRAE Poly Cube Primary Filter, 3 Filters Per Box 04075 65% ASHRAE 8-Pocket Primary Filter, 3 Filters Per Box...
