GENERAL
This device is designed to be installed into
an existing HVAC system for improved
indoor air quality.
BEFORE INSTALLING
• Read all instructions carefully. Failure
to do so could damage the equipment
or cause harm to yourself or others.
• Acknowledge all warnings.
• Only qualified technicians should
perform the installation.
DUST FREE
Whole House Air Purifier
Installation & Operation Manual
This manual covers the following model:
DF CARBON 14" - #13052
INCLUDED INSIDE BOX

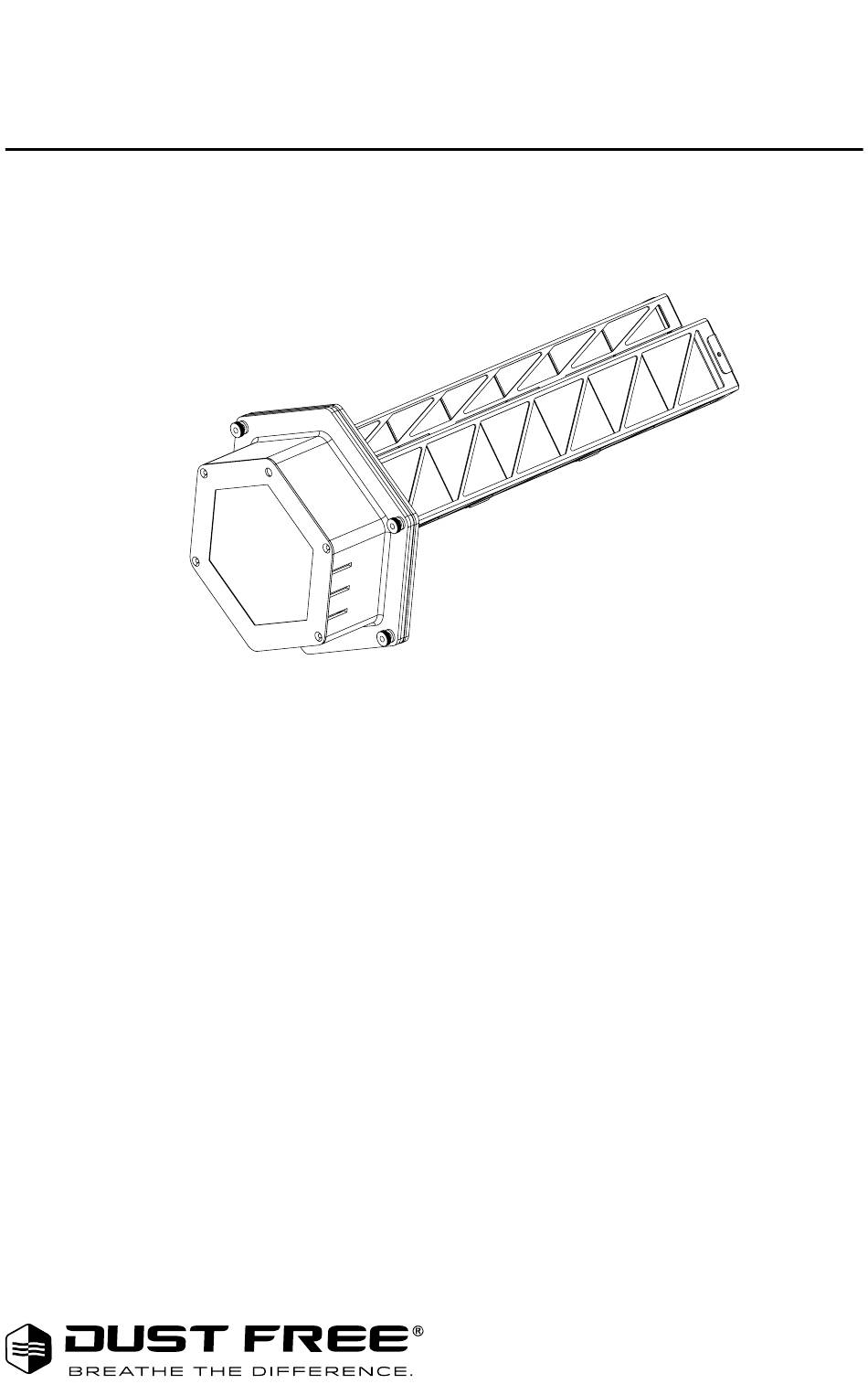

• Carbon Air Purifier System
• 24V power supply
• Core
• UV-C lamp
• 40VA transformer
• Mounting plate
• Mounting hardware
• Installation instructions
CARBON
®
216102-00 Rev. 1A 01/19
Advertisement
Table of Contents
Related Manuals for Dust Free CARBON 13052
Summary of Contents for Dust Free CARBON 13052
- Page 1 DUST FREE CARBON ® Whole House Air Purifier Installation & Operation Manual This manual covers the following model: DF CARBON 14" - #13052 GENERAL INCLUDED INSIDE BOX This device is designed to be installed into • Carbon Air Purifier System an existing HVAC system for improved indoor air quality.
-
Page 2: Specifications
U.S. Patent Nos. 5,334,347, 5,817,276, 6,245,293, 6,267,924, 6,280,686, 6,313,470, 6,627,000, 6,539,727, 6,932,494, 6,550,257. NOTICE Qualified Technicians Only. This device must be installed in compliance with all national and local electrical and mechanical codes. Failure to do so will void Dust Free® Warranty. - Page 3 DUST FREE CARBON AIR PURIFIER INSTALLATION & OPERATION MANUAL ® UV INSTALLATION NOTES This device is meant only to be installed in the duct portion of the HVAC system. The duct work around the installation area should be clean and dry to insure proper adhesion of the gasket materials and any tape used.
- Page 4 DUST FREE CARBON AIR PURIFIER INSTALLATION & OPERATION MANUAL ® METAL DUCTWORK INSTALLATION • Locate a suitable area of the duct for installation. Minimum 8" area. • If needed, cut away insulation to expose metal duct. • Mark location for 5" opening using the included mounting plate as a template.
- Page 5 Fig. 4 Replace core each year. Replace UV-C send your spent core and UV-C lamp, in lamp every 2 years. the same container you received your replacement, to: Dust Free® Reclamation 1112 Industrial Drive Royse City, TX 75189 WARNING Mercury Hazard. Do Not Break.
- Page 6 ® WARRANTY Dust Free LP . warrants this DF CARBON air purifier to be free from defects in materials and workmanship under normal use and service, for a period of seven (7) years from the date of purchase. This warranty does not cover UV-C lamp(s), which carry a two (2) year warranty from the date of installation.
