Save This Manual For

Future Reference

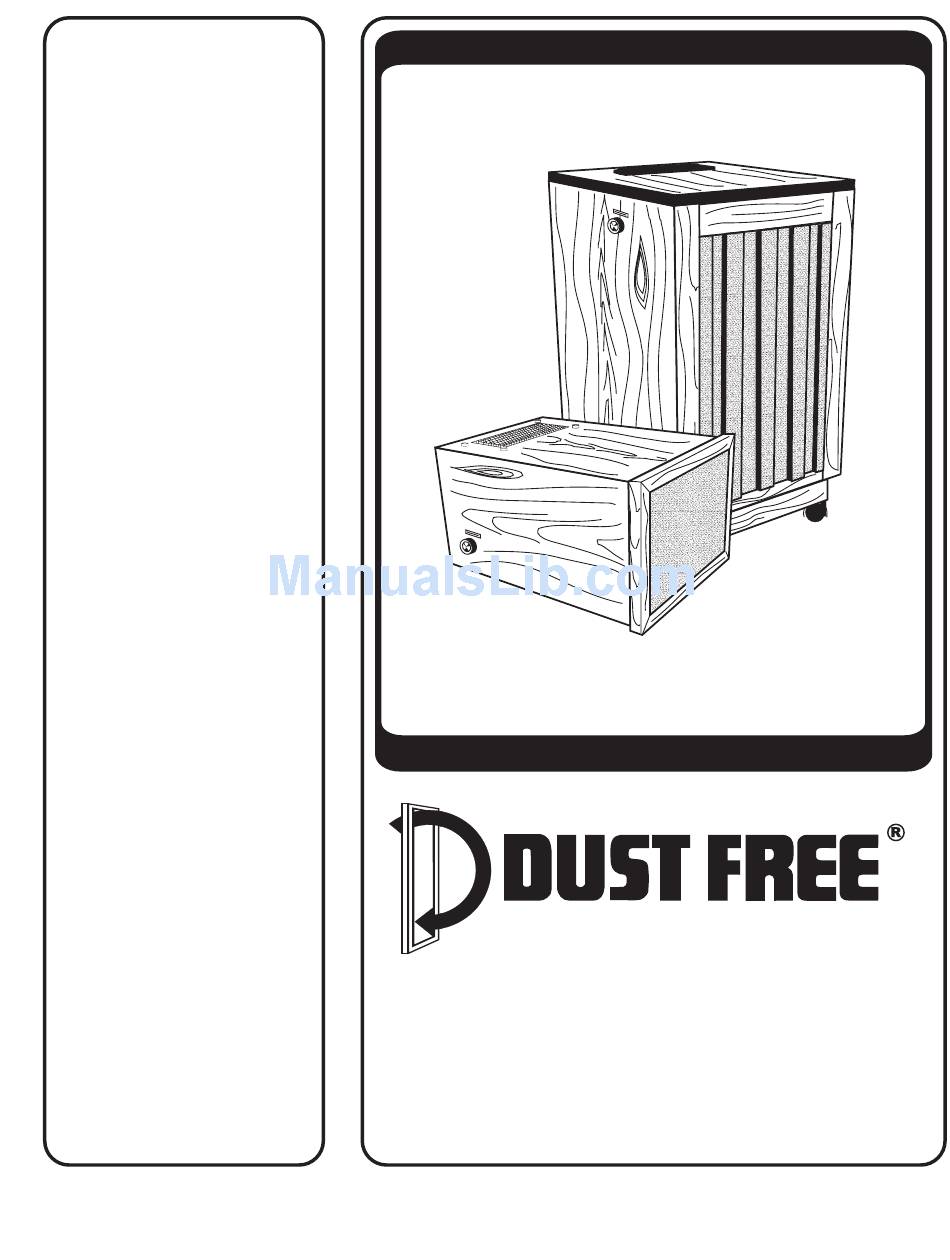

Installation

and

Service

Manual

Read ALL

INSTRUCTIONS

carefully.

Eramco • PO Box 519 • Royse City, TX 75189-0519 • 1-972-635-9565

This manual is copyright protected by ERAMCO. Any reproduction of this manual, in part or full, without the written permission of ERAMCO,

constitutes a violation of the U.S. copyright laws and is subject to prosecution.

©Printed in the U.S. by the Graphics Productions Department of ERAMCO, 1998.

Air Cleaners

Series 400

Series 500

Part No. 210287-00 Rev. 2A

Need help?

Do you have a question about the 400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dust Free 400 Series

Page 1: Air Cleaners
Save This Manual For Future Reference Installation Service Manual Air Cleaners Series 400 Series 500 Read ALL INSTRUCTIONS carefully. Eramco • PO Box 519 • Royse City, TX 75189-0519 • 1-972-635-9565 Part No. 210287-00 Rev. 2A This manual is copyright protected by ERAMCO. Any reproduction of this manual, in part or full, without the written permission of ERAMCO, constitutes a violation of the U.S.
Page 2 PERFORMANCE OVERVIEW ® The Dust Free Series 400 and 500 systems were designed to meet the needs of people who are adversely affected by indoor airborne pollutants. Tobacco smoke, dust, pollen, mold, odors, and chemicals exist in various environments and each require a specific filtration process to provide the needed air quality.
Page 3 The ® Dust Free air cleaners employ a three-stage filtering process to remove a wide variety of contaminants from the air. First, the prefilter removes larger particles that are easily captured.
Page 4: Cleaning The Cabinet
MAINTENANCE CLEANING THE PRE-FILTER The pre-filter should be cleaned every 30 to 60 days, depending on the environment. 1. Remove the pre-filter from the unit by grasping the filter and pulling it away from the unit. 2. Clean away lint buildup by shaking or vacuuming the filter. 3.
Page 5 REPLACEMENT PARTS LIST Series 400 Charcoal Filter 95% DOP Filter Pre-Filter 3-Speed Switch Series 400 Part No. Description 04207 Washable Pre-filter 04208 95% DOP Main Filter 04206 1" Honeycomb Charcoal Filter 210360-00 100/120V , 50/60Hz, 1PH Motor 210235-00 3-Speed Switch Assembly Charcoal Filter 95% DOP Filter Series 500...
