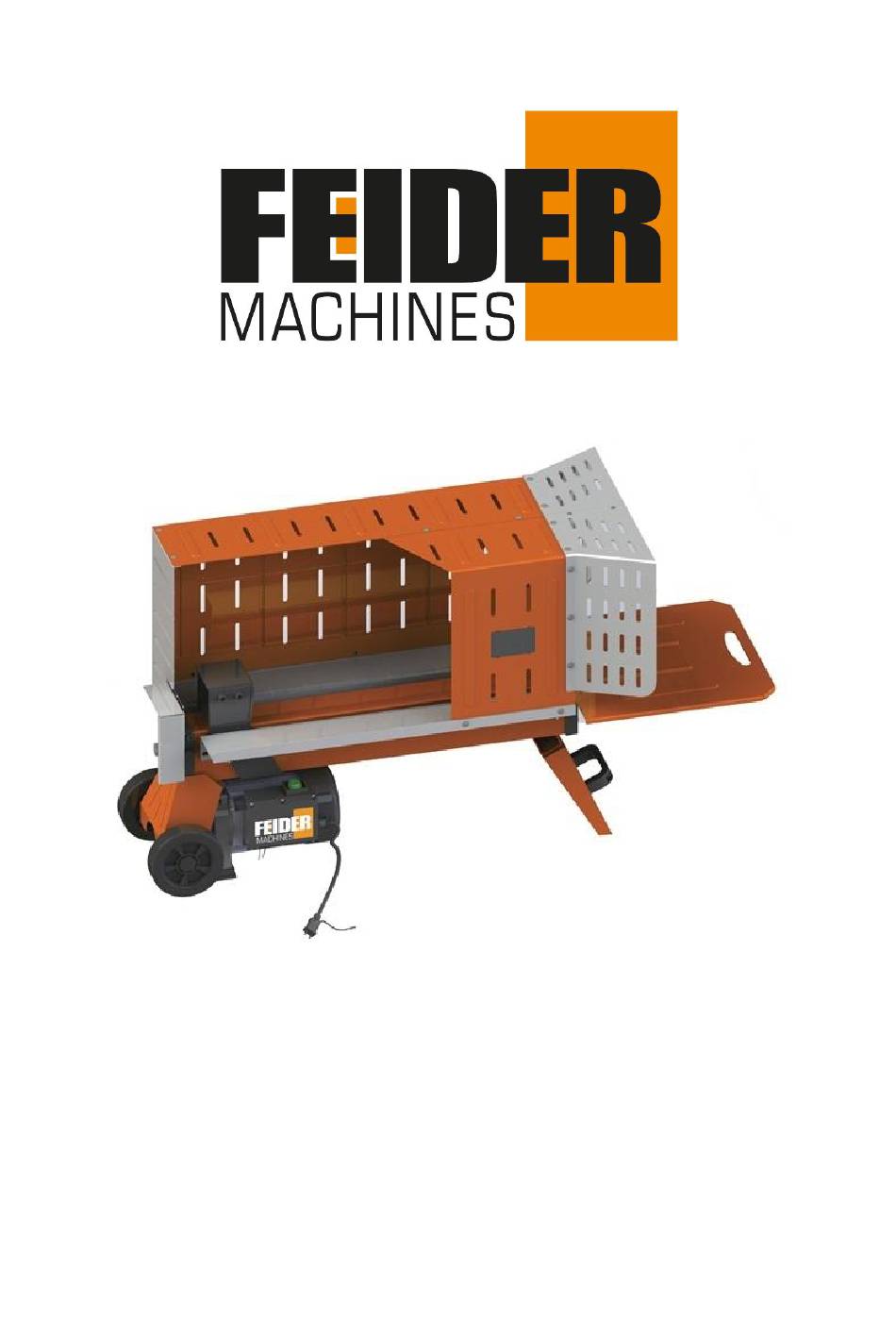

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC LOG SPLITTER FFBE4T USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. DESCRIPTION............................9 3. ASSEMBLY.............................9 4. OPERATION............................12 5. MAINTENANCE...........................14 6. TROUBLE SHOOTING........................15 7. DISPOSAL............................15 8. DECLARATION OF CONFORMITY....................16 9. WARRANTY............................17 10. PRODUCT FAILURE........................18 11. WARRANTY EXCLUSIONS......................19... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS UNDERSTAND YOUR CUTTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it. DRUGS, ALCOHOL AND MEDICATION Do not operate the log splitter while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. - Page 4 Avoid use of free and inadequately insulated connections. Connections must be made with protected material suitable for outdoor use. AVOID ELECTRICAL SHOCK Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor. Check that there is a ground connection, and a regulation differential switch upstream.
- Page 5 DISCONNECT POWER Unplug when not in use, before making adjustments, changing parts, cleaning, or working on the log splitter; Consult technical manual before servicing. PROTECT THE ENVIRONMENT Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used.
- Page 6 17. Do not use machines with electric motor if natural gas, petrol fumes or other inflammable vapors are present. 18. Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor, check that there is a ground connection, and a regulation differential switch upstream.
- Page 7 Use work gloves Wear eye protection Use hearing protection No trespassing No smoking in the working area Only the operator may stand within the operating range of the machine. Keep non-involved persons, as well as domestic and farm animals, out of the hazard area (minimum distance: 5m) Keep your work space tidy! Untidiness can lead to accidents Only the operator may stand within the operating range of the machine.
- Page 8 SPECIFICATIONS Model FFBE4T Motor 230V~ 50Hz 1500W S3 50% IP54 Speed 2800/min Diameter 5 - 25cm Log Capacity Length 37cm Splitting Force Hydraulic Pressure 16Mpa Hydraulic Oil Capacity 2.4L Length 1100mm Overall Size Width 480mm Height 705mm Weight 54kg Noise level 91dB(A) The diameter of the log is indicative –...
-
Page 9: Description
2. DESCRIPTION 1. Log Pusher 8. Pushbutton Box 2. Work Table 9. Wheels for Minor Moving ONLY 3. Wedge 10. Hydraulic Control Lever 4. Shield 11. Control Lever Guard 5. Support Leg 13. Bleed Screw 6. Switch 14. Oil Drain Bolt with Dipstick 7. - Page 10 sealed with glue to ensure the log splitter works under pressure no more than 5 tons. The setting was done by qualified mechanic with professional instruments. Unauthorized resetting will cause the hydraulic pump fail to output enough splitting pressure or RESULT IN SERIOUS INJURY AS WELL AS DAMAGE TO THE MACHINE. 1、Extention table 1pcs 2、Front cover 1pcs 3、M6 rotary knob 1pcs...
- Page 11 Figure 1a Figure 1b 6.Making the hook in the front of the extension table contact with the cylindrical boss of the working table, and put the other side on the head of the cylinder. Screw two M6 knobs into the corresponding holes of left and right support plates (loosen two M6 knobs when dismounting the extension table).See figure 2 Figure 2...
-
Page 12: Operation
figure 3 Finishing above steps, a complete machine is assembled. If you choose a machine without extra legs or stand, please place the machine safely on a workbench with 850mm above the ground before using. 4. OPERATION This log splitter is equipped with “ZHB” control system that requires to be operated by both hands of the user –... - Page 13 Never force the log splitter for more than 5 seconds by keeping pressure on it to split excessively hard wood. After this time interval, the oil under pressure will be overheated and the machine could be damaged. For such extremely hard log, rotate it by 90 to see whether it can be split in a different direction.
-
Page 14: Maintenance
Do not try to knock the jammed log off, Knocking about will damage the machine or may launch the log and cause accident. 5. MAINTENANCE REPLACING HYDRAULIC OIL Replace the Hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. -
Page 15: Trouble Shooting
Following hydraulic oils or equivalent are recommend for the log splitter’s hydraulic transmission system: SHELL Tellus 22 MOBIL DTE 11 ARAL Vitam GF 22 BP Energol HLP-HM 22 SHARPENING WEDGE After using the log splitters for some time, sharpen the wedge of the log splitter using a fine-toothed file and smooth any burrs or crushed area along the cutting edge. -
Page 16: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that the following machine ELECTRIC LOG SPLITTER FFBE4T Serial number: 20230605759-20230605863 Is in conformity with the Directive Machine 2006/42/EC and to the regulations transposing it; Also in conformity with the European Directives:... -
Page 17: Warranty
9 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 18: Product Failure
1 0 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
