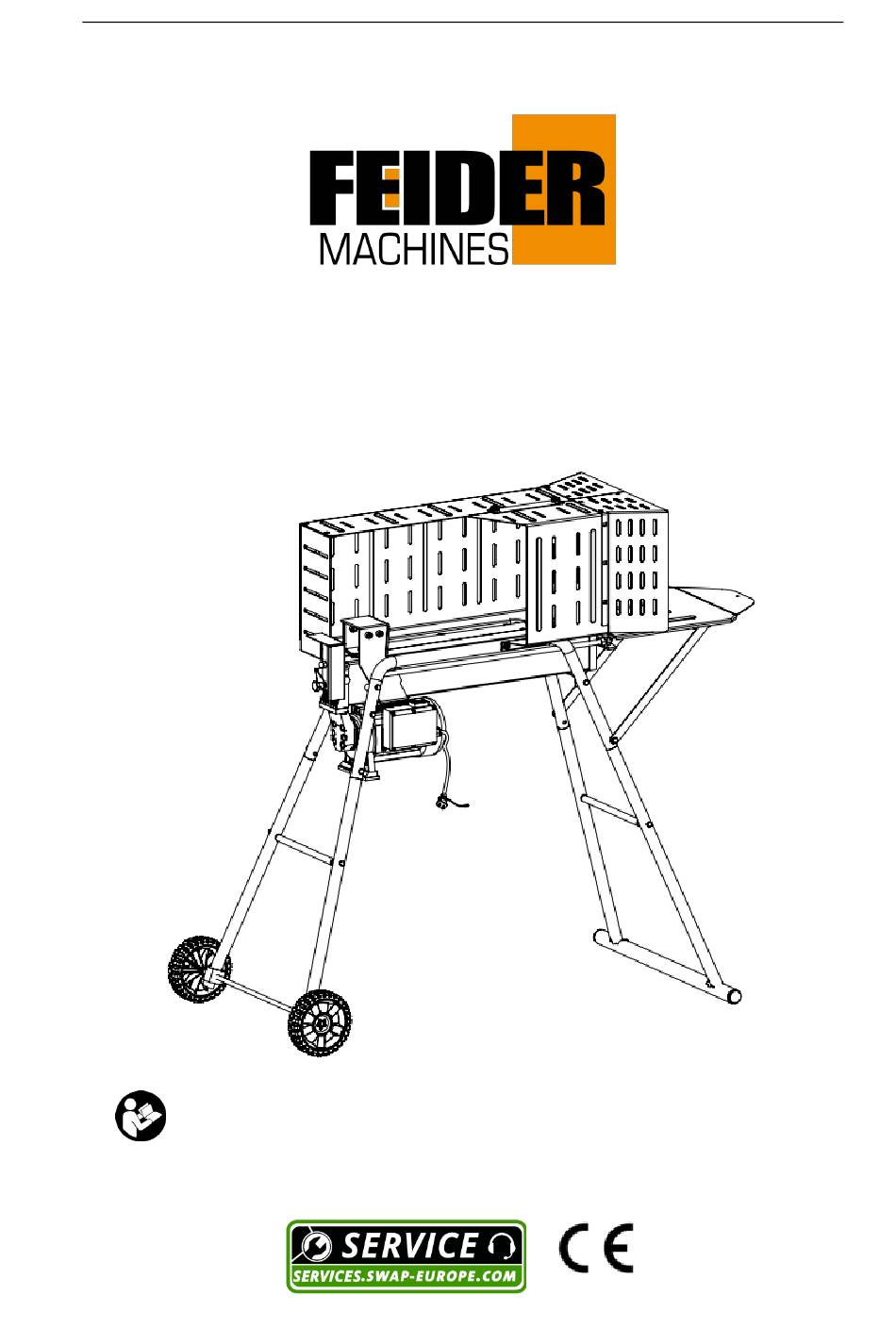

- Page 1 ORIGINAL INSTRUCTIONS ELECTRIC LOGSPLITTER FFBE5TS-UK READ THIS INSTRUCTIONS MANUAL BEFORE USING THE TOOL FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2019...
- Page 2 Danger! Keep clear of moving parts! To be operated by one person only! The log splitter must be used horizontally, can’t be used vertically. SAFETY WARNINGS SAFETY WARNINGS & INSTRUCTIONS SYMBOL AFFIXED TO THE MACHINE ⚫ UNDERSTAND YOUR LOG SPLITTER Read and understand the owner’s manual and labels affixed to the log splitter.
-
Page 3: Inspect Your Log Splitter
⚫ INSPECT YOUR LOG SPLITTER Check your log splitter before turning it on. Keep guards in place and in working order. Form -a habit of checking to see that keys and adjusting wrenches are removed from tool area before turning it on. Replace damaged, missing or failed parts before using it. - Page 4 ⚫ KEEP VISITORS AND CHILDREN AWAY The log splitter must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log splitter is under operations. Never use another people to help you with freeing jammed log. ⚫...
-
Page 5: Make The Workshop Childproof
Keep the log splitter clean for best and safest performance. ⚫ MAKE THE WORKSHOP CHILDPROOF Lock the shop. Disconnect master switches. Store the log splitter away from children and others not qualified to use it. Symbols WARNING! Electricity - Risk of electric shock. Warning: Floor-level obstacle Warning: Risk of slipping No smoking in the working area... - Page 6 3. The machine must be used by adults only. Use of the log splitter by apprentices of not less than 16 years of age must be supervised by an adult authorized to use the machine. 4. Never wear loose, unbuttoned clothing which may become trapped in moving parts.
- Page 7 19. Never open the switch box on the motor. Should this be necessary, contact a qualified electrician. 20. Make sure that the machine and the cable never come in contact with water. 21. Treat the power cable with care, do not attempt to move the machine by pulling the cable, do not yank the cable to unplug it;...
-
Page 8: Intended Use
This log splitter is only intended to be used to split logs! Serious injury may occur if this log splitter is used for any other purpose. TECHNICAL SPECIFICATIONS Model FFBE5TS-UK Voltage: 230V~ 50Hz Power consumption 1500W S3 50% (5min on/5min off) - Page 9 Vibration ≤2,5m/ s Guarantee noise level 91 dB(A) UNPACKING WARNING! To prevent accidental starting that could cause possible serious personal injury, assemble all parts to your log splitter before connecting it to power supply. Log splitter should never be connected to power supply when you are assembling parts, making adjustment.
- Page 10 FEATURES 1. Before attempting to use, familiarize yourself with all the operating features and safety requirements of your log splitter. 1. Blade 2. Oil tank 3. hydraulic control lever 4. Rolling wheel 5. push button switch 6. Log pusher 7. Safety guard for hydraulic control lever 8.
- Page 11 Fig.1 3. Recommended oils We recommend use of the following oils for the hydraulic cylinder. SHELL TELLUS T22 ARAL VITAM GF22 SP ENERGOL HCP22 MOBILE DTE 11 OR equivalent DO NOT USE OTHER GRADE OILS 4. Application conditions This log splitter is a home use model. It is designed for operating under ambient temperature between +5 C and 40 C and use at altitudes no more than 1000mm.
- Page 12 fig.2 b) Connect horizontal shaft (9a) to front stand(10a&10b) with screws, then assemble horizontal leg(8) and fix it to front stand(10a&10b) by bolts (fig.3). fig.3 c) Connect back stand (13c) to connection pipe (c) and connect back stand (13d) connection pipe (d) by bolts and nuts (fig.4).
- Page 13 fig.4 d) Connect horizontal shaft (9b) to back stand (13c&13d) with bolts, assemble the wheel shaft (11) and wheels with four spring washers, the last fit wheel covers (fig.5). fig.5 Remove the accessories as shown in the figure from the carton and check the number of accessories, and then install according to the following steps:...
- Page 14 1. Using the Allen wrench to make the two M8×16 screws through the two washer8 and the mounting hole for left side support plate, then tighten the screw holes corresponding to the bent legs( fig. 1) Fig.1 2、Push the three M8×16 screws through the three washer8 and the mounting hole, then tighten the screw holes corresponding to the bent legs.
-
Page 15: Operation
4、Install the stock support plate. Push the two M8×16 screws through mounting hole of the support plate and the stock support plate, tighten with two M8 nuts. Then push two M8×16 screws through the two mounting hole of the stock support plate, push two M8×50 bolts through the mounting hole of the left and right bent legs and mounting hole of the stock support plate on the other side, tighten with four M8 nuts. - Page 16 Fig.6 DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW (16) IN FIG. 7! Max pressure was set before the log splitter ex work and the max pressure limiting screw is tightened to ensure the log splitter works under pressure no more than 6 tons. The setting was done by qualified mechanic with professional instruments.
- Page 17 will freeze upon absence of either hand. Only after both hands release the controls, the log pusher starts to return backward to the starting position. Never force the log splitter for more than 5 seconds by keeping pressure on it to split excessively hard wood. Fig .8 After this time interval, the oil under pressure will be overheated and the machine could be damaged.
- Page 18 Fig. 9 Break log in the direction of its grown grain. Do not place log across the log splitter for splitting. This may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time. One of them may fly up and hit you.
-
Page 19: Maintenance
Fig.11 MAINTENANCE Replacing hydraulic oil (fig.12) Replace the hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. 1. Make sure all moving parts stops and the log splitter is unplugged. 2. Unscrew oil drain bolt with dipstick to remove it. -
Page 20: Troubleshooting
fig.12 Periodically check oil level to ensure it is between 2 grooves around the dipstick. Upon lower oil level, oil refilling is required. Warning: Never mix oil with general waste! Used oil must be disposed of according to current regulations in the country where the machine is used. - Page 21 The log pusher Lack hydraulic Check oil level for possible oil moves jerkily, excessive air in the hydraulic refilling. Contact the dealer. taking system unfamiliar noise or vibrating a lot Air sealed in hydraulic system Loosen bleed screw by some while operating rotations before operating the log splitter...
- Page 22 Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that this machine: ELECTRIC LOGSPLITTER Model: FFBE5TS-UK Is in conformity with the Directive 2006/42/EC and the regulations transposing it; Also in conformity with the following Directives: RoHS Directive 2011/65/UE EMC Directive 2014/30/UE...
