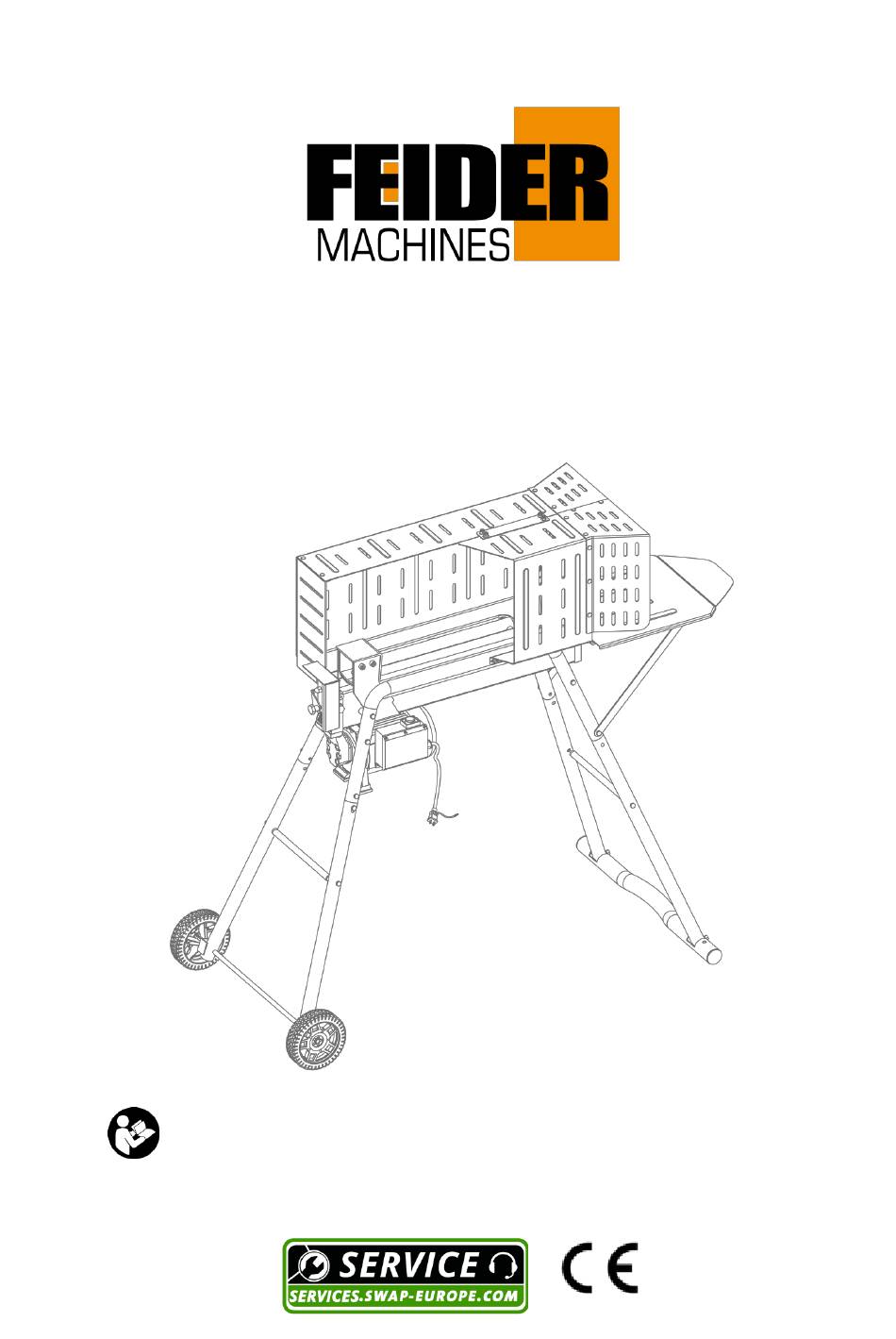

- Page 1 ORIGINAL INSTRUCTIONS ELECTRIC LOGSPLITTER FFBE7TS-UK READ THIS INSTRUCTIONS MANUAL BEFORE USING THE TOOL FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2019...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS WARNING! Standard graphic symbols are used on all machines in order to ensure complete safety of all parts of the log splitter. As these symbols are very important, read the information below attentively. Conforms to relevant safety standards It is obligatory to read the machine’s use and maintenance manual in full before using the machine. - Page 3 Remove plug from mains before maintenance or if cord is damaged. Keep bystanders away from the working area. The log splitter must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log splitter is under operations.
-
Page 4: Safety Warnings
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling center and disposed of in an environmentally safe way. Danger! Keep clear of moving parts! To be operated by one person only! The log splitter must be used horizontally, can’t be used vertically. - Page 5 9. If the log moves away from the blade, retract the blade and turn the log through 90 10. Do not attempt to load the log in the log splitter while the blade is in motion, you could get trapped and injured. 11.
- Page 6 (e.g. knots, logs of irregular shape etc.) 27. Operator must receive necessary training and instruction from a qualified person before handling the tool. 28. Use the tool only for the intended use. Misuse (such using material other than log) can damage the tool and cause accidents and injuries. 29.
-
Page 7: Intended Use
This log splitter is only intended to be used to split logs! Serious injury may occur if this log splitter is used for any other purpose. TECHNICAL SPECIFICATIONS Model FFBE7TS-UK Voltage: 230V~ 50Hz Power consumption 2300W S3 50% (5min on/5min off) - Page 8 WARNING! To prevent accidental starting that could cause possible serious personal injury, assemble all parts to your log splitter before connecting it to power supply. Log splitter should never be connected to power supply when you are assembling parts, making adjustment. Carefully remove all pieces from the carton.
- Page 9 1. Blade 2. Oil tank 3. Hydraulic control lever 4. Rolling wheel 5. Push button switch 6. Log pusher 7. Safety guard for hydraulic control lever 8. Horizontal leg 9. Horizontal shaft 10. Front stand 11. Wheel shaft 12. Motor cover 13.
- Page 10 MOBILE DTE 11 OR equivalent DO NOT USE OTHER GRADE OILS 4. Application conditions This log splitter is a home use model. It is designed for operating under ambient temperature between +5 C and 40 C and use at altitudes no more than 1000mm. The surrounding humidity should less than 50% at 40 C.
- Page 11 fig.3 c) Connect back stand (13c) to connection pipe (c) and connect back stand (13d) to connection pipe (d) by bolts and nuts (fig.4). fig.4 d) Connect horizontal shaft (9b) to back stand (13c&13d) with bolts, assemble the wheel shaft (11) and wheels with four spring washers, the last fit wheel covers (fig.5).
- Page 12 fig.5 Remove the accessories as shown in the figure from the carton and check the number of accessories, and then install according to the following steps:...
- Page 13 ④left cover ①stock support plate 1pcs ②protection guard 1pcs ③back cover 1pcs ⑤connection plate ⑥right cover ⑦ fixed 17 1pcs 1pcs 1pcs ⑧ Inner hexagon bolt M8×16 5pcs ⑨ Square neck bolt M8×16 4 ⑩ Inner hexagon bolt M8×16 4 1、Step 1: first, unscrew the butterfly air release screw inner hexagons bolts M8×16⑧...
-
Page 14: Operation
Figure 1 fixed ⑦ 2、Step 7: Use the wooden hammer to knock the 17 pieces of gently into the installation hole of the protection guard② and the back cover③, and then gently knocked the fixed ⑦ into the installation hole of the right and left cover. See figure 2 Figure 2 3、Complete the above steps, one complete machine assembly is completed 4、If you choose a machine without extra legs, please place the machine safely on the... - Page 15 Fig.6 DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW (16) IN FIG. 7! Max pressure was set before the log splitter ex work and the max pressure limiting screw is tightened to ensure the log splitter works under pressure no more than 6 tons. The setting was done by qualified mechanic with professional instruments.
- Page 16 This log splitter is equipped with control system that requires to be operated by both hands of the user – left hand controls the hydraulic control lever (3) while right hand controls the push button switch (5) as shown in Fig. 8. The log splitter will freeze upon absence of either hand.
- Page 17 Fig. 9 Break log in the direction of its grown grain. Do not place log across the log splitter for splitting. This may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time. One of them may fly up and hit you.
-
Page 18: Maintenance
Fig.11 MAINTENANCE Replacing hydraulic oil (fig.12) Replace the hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. 1. Make sure all moving parts stops and the log splitter is unplugged. 2. Unscrew oil drain bolt with dipstick to remove it. - Page 19 fig.12 Periodically check oil level to ensure it is between 2 grooves around the dipstick. Upon lower oil level, oil refilling is required. Warning: Never mix oil with general waste! Used oil must be disposed of according to current regulations in the country where the machine is used.
-
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Motor stops Overload protection device Let motor cool down, and starting disengaged to protect the log push the button of the splitter from being damaged overload protection device to re-start the motor Log is improperly positioned Refer to “Log splitter operation”... - Page 21 DISPOSAL Do not dispose of power tools into household waste! According the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
- Page 22 Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that this machine: ELECTRIC LOGSPLITTER Model: FFBE7TS-UK Is in conformity with the Directive 2006/42/EC and the regulations transposing it; Also in conformity with the following Directives: RoHS Directive 2011/65/UE EMC Directive 2014/30/UE...
