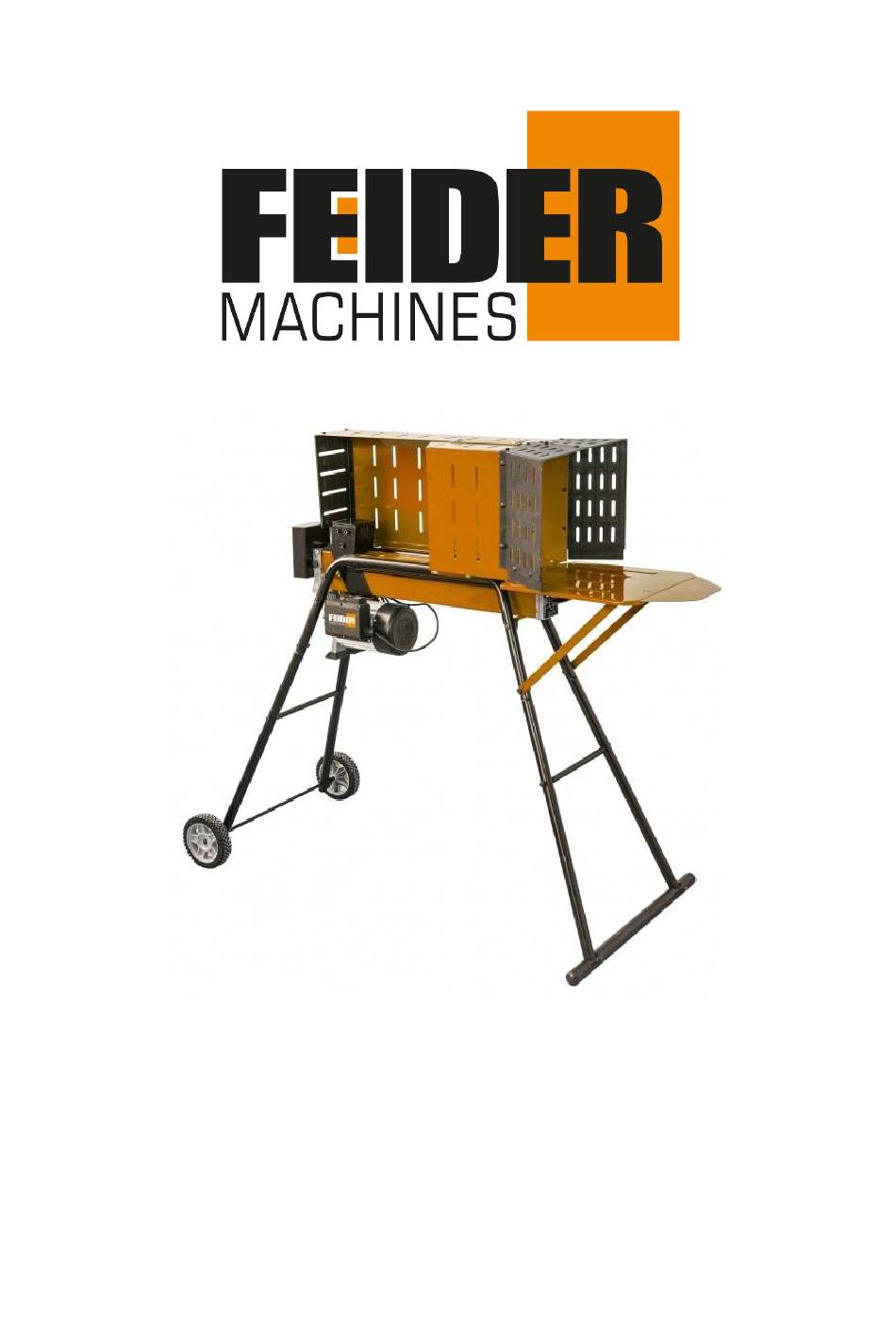

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC LOG SPLITTER FFBE7TS USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. DESCRIPTION OF SYMBOLS......................3 2. SAFETY INSTRUCTIONS........................5 3. TECHNICAL SPECIFICATIONS......................7 4. ASSEMBLY.............................7 5. OPERATION............................12 6. MAINTENANCE...........................15 7. STORAGE.............................15 8. TROUBLE SHOOTING........................16 9. DISPOSAL............................16 10. DECLARATION OF CONFORMITY....................17 11. WARRANTY............................18 12. PRODUCT FAILURE........................19 13. WARRANTY EXCLUSIONS......................20... -
Page 3: Description Of Symbols
1. DESCRIPTION OF SYMBOLS WARNING! Standard graphic symbols are used on all machines in order to ensure complete safety of all parts of the log splitter. As these symbols are very important, read the information below attentively. Conforms to relevant safety standards. It is obligatory to read the machine’s use and maintenance manual in full before using the machine. - Page 4 Warning: pay attention to prevent entrapment hazard. Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used. Do not discharge into drains, soil or water. Keep your hands away from splits and cracks which open in the log; they may close suddenly and crush or amputate your hands.
-
Page 5: Safety Instructions
Danger! Keep clear of moving parts! To be operated by one person only! The log splitter must be used horizontally, can’t be used vertically. 2. SAFETY INSTRUCTIONS Keep these instructions for future reference 1. The log splitter must always be used by one operator only. 2. - Page 6 17. Do not use machines with electric motor if natural gas, petrol fumes or other inflammable vapors are present. 18. Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor, check that there is a ground connection, and a regulation differential switch upstream.
-
Page 7: Technical Specifications
This log splitter is only intended to be used to split logs! Serious injury may occur if this log splitter is used for any other purpose. 3. TECHNICAL SPECIFICATIONS Model FFBE7TS Voltage: 230V~ 50Hz Power consumption 2300W S3 50% (5min on/5min off) - Page 8 1. Horizontal leg 1pcs 2. Front stand 2pcs 3. Back stand 2pcs 4. Horizontal shaft 2pcs 5. Wheel 2pcs 6. Wheel shaft 2pcs 7. Wheel cover 2pcs 8. Circlip 8pcs 9. Bolt M8*45 4pcs Bolt M8*50 6pcs 10. Nut M8 4pcs 11.
- Page 9 Fig.1 3. Recommended oils We recommend use of the following oils for the hydraulic cylinder. SHELL TELLUS T22 ARAL VITAM GF22 SP ENERGOL HCP22 MOBILE DTE 11 OR equivalent DO NOT USE OTHER GRADE OILS 4. Application conditions This log splitter is a home use model. It is designed for operating under ambient temperature between +5 C and 40 C and use at altitudes no more than 1000mm.
- Page 10 fig.3 c) Connect back stand (13c) to connection pipe (c) and connect back stand (13d) to connection pipe (d) by bolts and nuts (fig.4). fig.4 d) Connect horizontal shaft (9b) to back stand (13c&13d) with bolts, assemble the wheel shaft (11) and wheels with four spring washers, the last fit wheel covers (fig.5).
- Page 11 INSTALLATION OF THE MACHINE ①stock support plate ②protection guard 1pcs ③back cover ④left cover ⑤connection plate ⑥right cover ⑦ fixed ⑧ Inner hexagon bolt M8 ⑨ Square neck bolt M8 ⑩ Inner hexagon bolt M8 1) Install the support plate (1) on the machine by hooking the hooks under the supports provided for this purpose.
-
Page 12: Operation
NOTE: If you choose a machine without extra legs, please place the machine safely on the workbench surface 850mm above the ground before using. 5. OPERATION Warning! Before operating the log splitter, the Bleed Screw (15) Fig. 6, should be loosened by some rotations until air can go in and out of the oil tank smoothly. - Page 13 Make sure that the screws are tightened up properly before operation the log splitter! This log splitter is equipped with control system that requires to be operated by both hands of the user – left hand controls the hydraulic control lever (3) while right hand controls the push button switch (5) as shown in Fig.
- Page 14 Freeing a jammed log (fig.10) 1. Release both controls. 2. After the log pusher moves back and completely stops at its starting position, insert a wedge wood under the jammed log. 3. Start the log splitter to push the wedge wood to go completely under the jammed one. 4.
-
Page 15: Maintenance
6. MAINTENANCE Replacing hydraulic oil (fig.12) Replace the hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. 1. Make sure all moving parts stops and the log splitter is unplugged. 2. Unscrew oil drain bolt with dipstick to remove it. -
Page 16: Troubleshooting
8. TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Motor stops Overload protection device Let motor cool down, and push the starting disengaged to protect the log splitter button of the overload protection device from being damaged to re-start the motor Log is improperly positioned Refer to “Log splitter operation”... -
Page 17: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that this machine: ELECTRIC LOGSPLITTER Model: FFBE7TS Serial number: 20230606059-20230606143 Is in conformity with the Directive 2006/42/EC and the regulations transposing it; Also in conformity with the following Directives: RoHS Directive (EU)2015/863 amending 2011/65/EU... -
Page 18: Warranty
1 1 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 19: Product Failure
1 2 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 21 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
