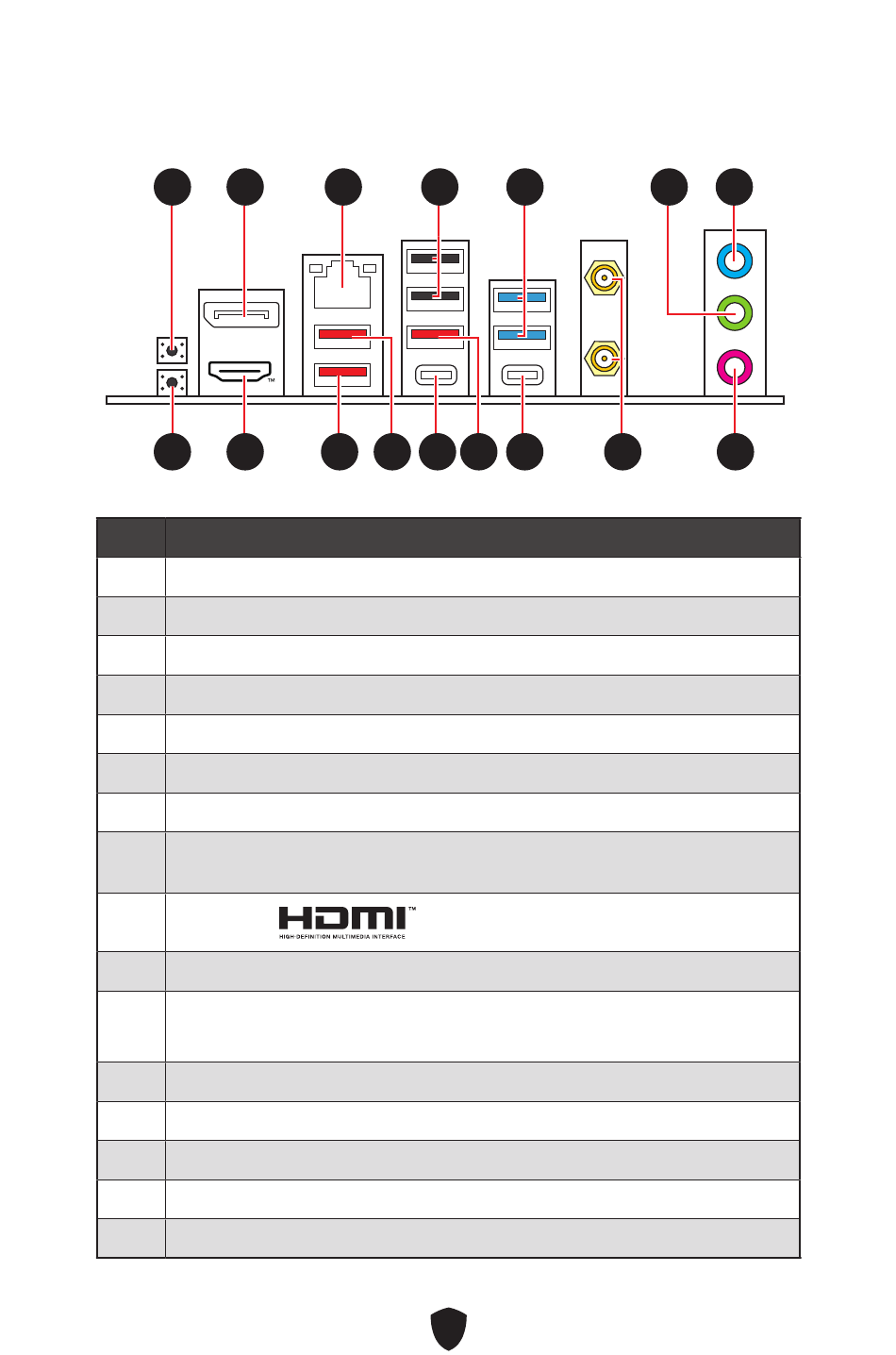

Back Panel Connectors

1 1 2 2
8 8 9 9
Item Description
1 Clear CMOS button
2 DisplayPort (DP1.4)
3 2.5 Gbps LAN port
4 USB 2.0 Type-A port (From B650 chipset)
5 USB 3.2 Gen 1 5Gbps Type-A port (From ASM1074)
6 Line-out jack
7 Line-In jack
Flash BIOS button - Please refer to page 52 for Updating BIOS with Flash
8
BIOS Button.
9
HDMI™ port
10 USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
11
∙ Flash BIOS port
12 USB 3.2 Gen 2 10Gbps Type-C port (From CPU)
13 USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)
14 USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
15 Wi-Fi antenna connectors
16 Microphone jack
3 3 4 4
10 10 11 11 12 12 13 13
22
5 5 6 6
14 14 15 15
7 7
16 16
