6. Confi guring both 4000 Platforms for data storage
1
Press the F key and press the lower softkey until Setup is selected.
ILE
2
Step through the following, selecting and entering specifi c data relating to your test
- Fiber ID (whatever ID you choose. It will be followed by Fiber # on each fi le)
- Fiber Number (enter the fi rst fi ber # of the ones you will be testing)
- Cable ID (whatever ID you choose)
- Direction (one unit should say A to B and the other should say B to A)
- Location A and Location B (here you can name each location)
3
Press the lower soft key until Explorer is selected.
4
If you will be storing results in the Hard Drive, select hard drive (alternatively, if using USB memory
stick, insert it and select it) and press the softkey Create Directory. Enter your directory name and
press Save.
5
Then select that directory and all your results will be stored in that location.
7. Performing the measurement
As soon as the secondary (2) unit is connected to the fi ber, the primary (1) unit detects it (and vice-
versa).
1
Press S /S button to launch the measurement.
TART TOP
The test sequence can be initiated from one or the other unit. No additional intervention is
necessary until the end of the measurement cycle. At the end of the test, all results are available at the
same time.
The OTDR results are only saved on the unit where the measurement has been initiated.
2
Disconnect the fi ber. Connect the next one, then test by pressing the green S

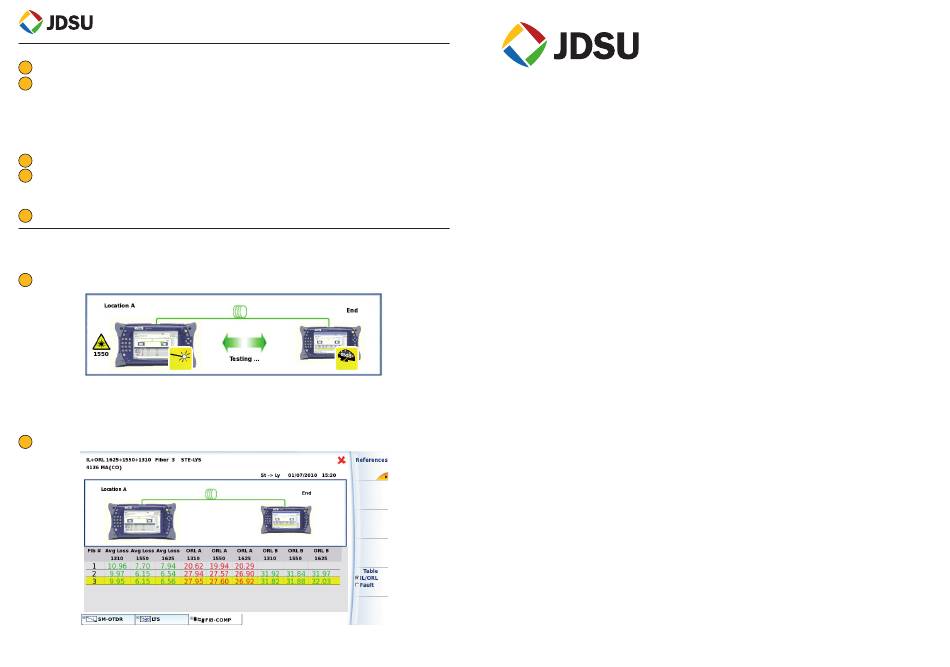

FiberComplete Results: Cable View
4000 Platform - Quick Card "FiberComplete: Bidir. IL/ORL & Unidir. OTDR Measurement" – Ref 770000038/02 – Mar. 2011 – © 2011 JDSU Corporation
FIBERCOMPLETE: BIDIRECTIONAL IL/ORL, DISTANCE
button.
TART

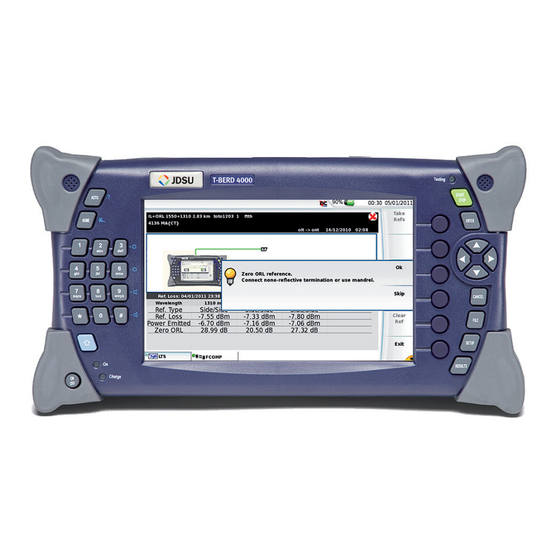

The following procedure outlines how to use the 4000 platform with FiberComplete
Module to fully qualify a fi ber link: bidirectional IL, bidirectional ORL, length/distance
and OTDR.
These measurements are performed to ensure that the fi ber link meets performance
levels that support network equipment (transmitter/receiver) specifi cations.
Please read the entire procedure BEFORE starting.
4000 Platform - Quick Card "FiberComplete: Bidir. IL/ORL & Unidir. OTDR Measurement" – Ref 770000038/02 – Mar. 2011 – © 2011 JDSU Corporation
4000 PLATFORM QUICK CARD
& UNIDIRECTIONAL OTDR MEASUREMENT
