Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt
in a safe and dry place for future reference.

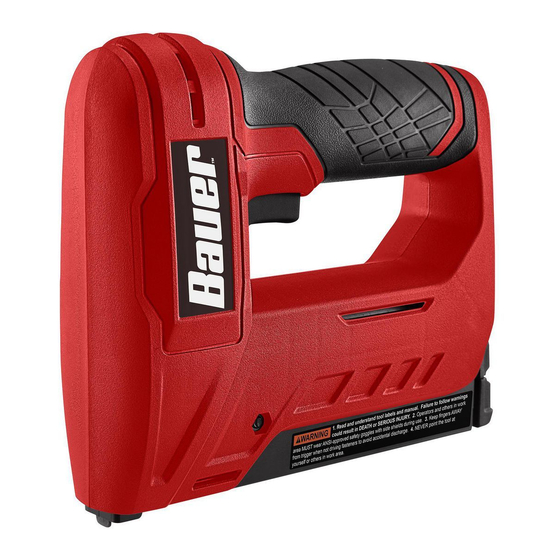

4V CORDLESS
STAPLER
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
©
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
20181F-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
24c
57241
Advertisement
Related Manuals for Harbor Freight Tools Bauer 20181F-B
Summary of Contents for Harbor Freight Tools Bauer 20181F-B
- Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.
-
Page 2: Table Of Contents
table of contents Safety ............2 Operation ............ 7 Specifications ..........6 Maintenance ..........10 Setup ............6 Warranty ............ 12 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 3: Safety
3. personal safety always wear hearing protection when using the tool. a. Stay alert, watch what you are doing and Prolonged exposure to high intensity use common sense when operating a noise is able to cause hearing loss. power tool. Do not use a power tool while you are tired or under the influence of always wear eye protection. - Page 4 These carry important safety information. Check manual for triggering options. If unreadable or missing, contact Harbor Freight Tools for a replacement. j. Respect the tool as a working implement. k. No horseplay. This tool is not a toy and can be 7.
- Page 5 8. Vibration Safety b. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, This tool vibrates during use. increasing the risk of vibration‑related injury. Repeated or long‑term exposure to vibration may c. Wear suitable gloves to reduce the cause temporary or permanent physical injury, vibration effects on the user.
-
Page 6: Specifications
Specifications Charger Input Rating 120VAC / 60Hz / 1000mA Battery Rating 4V / 1500mAh Battery Type Li‑Ion Actuation System Single Sequential Staple Length 1/4″ / 5/16″ / 3/8″ / 1/2″ Staple Type 3/8″ Crown Setup - Before use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. -
Page 7: Operation
Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool Set up tO preVent SeriOuS inJury FrOM acciDentaL DiScHarGe: Make sure that the trigger is in the off-position and remove its Battery pack before performing any procedure in this section. - Page 8 6. Hold the tool away, or off of the workpiece. 7. Press the Workpiece Contact against the workpiece The Workpiece Contact should return to its original and squeeze the Trigger. the tool must cycle (actuate) only once. position. Squeeze the Trigger. the tool must not cycle (actuate).
- Page 9 General Operating instructions 1. Turn the power switch on. 3. Position tool at desired fastener location and depress the Workpiece Contact 2. Before each use, test the tool as fully against the workpiece. Squeeze directed in the prior section. the Trigger to discharge a fastener. WarninG! tO preVent note: Depress the Workpiece Contact SeriOuS inJury: Keep second hand...
-
Page 10: Maintenance
Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL DiScHarGe, BeFOre any Maintenance Or repairS are DOne (including clearing jams): • Wear anSi-approved safety goggles with side shields. Other people in the work area must also wear ANSI‑approved impact safety goggles with side shields. - Page 11 troubleshooting problem possible causes Likely Solutions Tool cycles without 1. Jammed fastener. 1. Clear jammed fastener according to Clearing Jams instructions. driving fastener. 2. Tool empty. 2. Reload with correct fasteners. 3. Incorrect fasteners used. 3. Empty, then reload with correct fasteners. 4.
-
Page 12: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
