Connection of condensation
water drain
During the cold period, condensation water is formed in the device, which must be discharged from the device through
the exit of the condensate.
ERV heat and humidity recovery model: The device is not equipped with a condensate outlet, if necessary, it is
possible to order more and must be specified from the seller. If there are rooms with a constant high level of humidity
(permanently more than 50% humidity during the winter period, for example, sauna or pool rooms, etc.), then it is
mandatory to ensure the drainage of condensate.
PRC heat recovery model: ensuring condensate drainage is a must
● A copper pipe with a field diameter of 15 mm comes out of the device, to which a condensate drain pipe must
be installed.

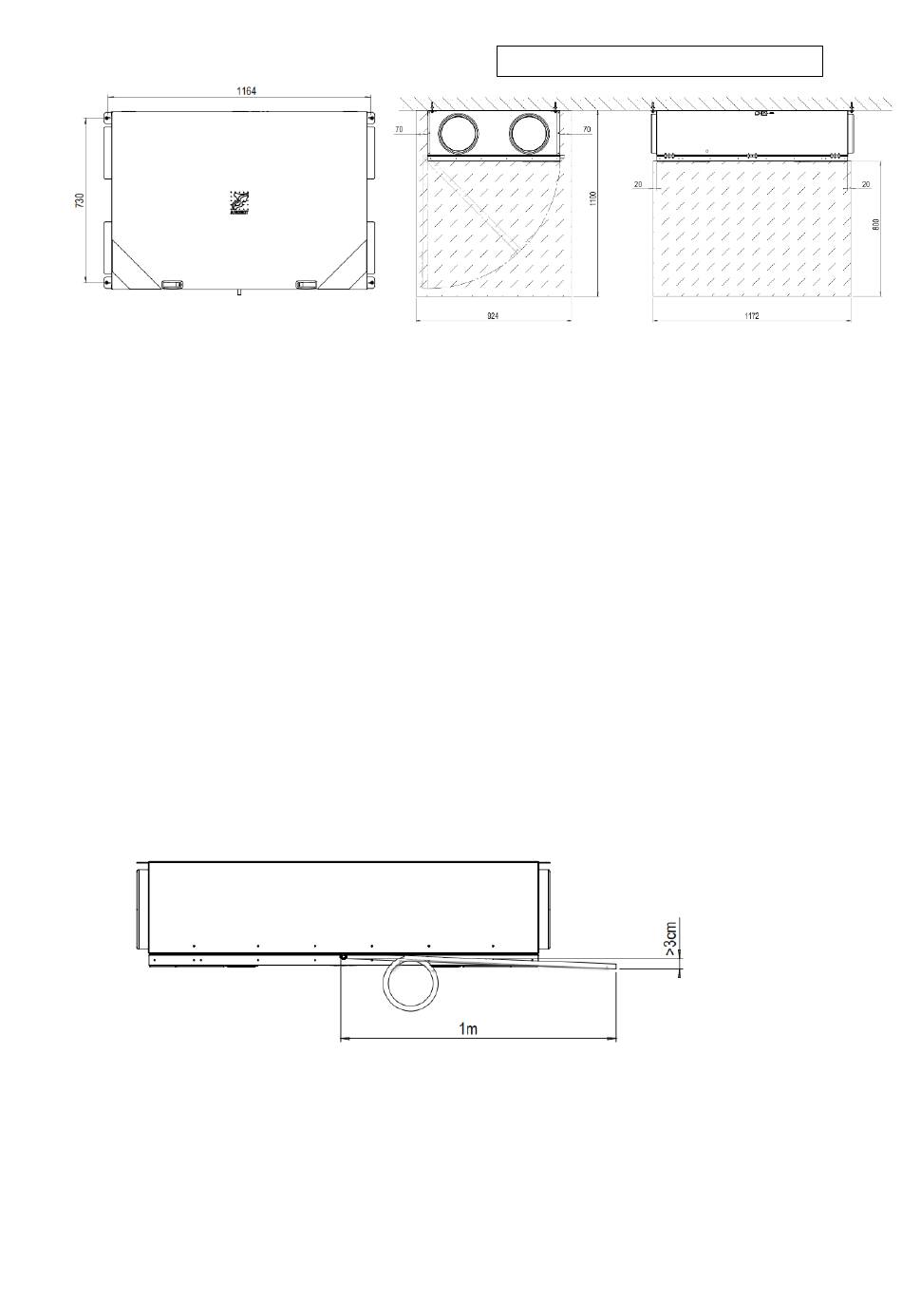

● A water lock in the shape of an O-circle must be made on the drain pipe and the pipe must be installed
under a minimum inclination of 3%, i.e. there must be at least 3 cm of drop for every 1 meter!
● The minimum diameter of the water lock in the shape of an O-circle is 10 cm, care must be taken to ensure
that no fold forms on the hose when forming the water lock, which would prevent drainage. It is allowed to
make a water lock in any location, it is important that no part of the hose is higher than the lower part of the
device.
● In the absence of a water lock, condensate water cannot get out of the device and may result in water
damage to the device and the surrounding environment.
The required space for servicing the device
