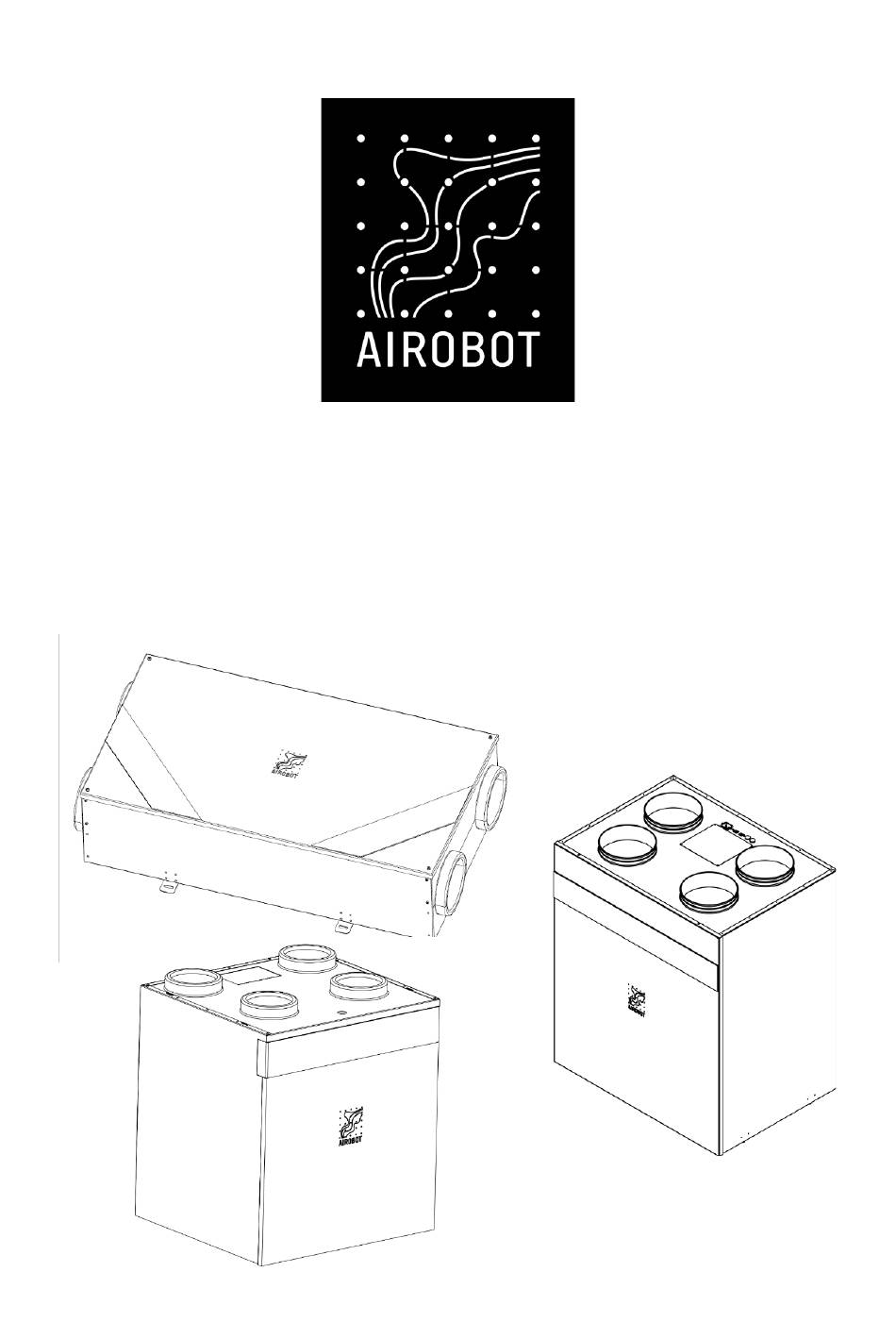

  • Page 1 Manual Ventilation device Airobot L / S1 / S2 / V3...

  • Page 2: Table Of Contents

    Overpressure mode (fireplace mode) Contents Air quality and sensors in the device Carbon dioxide (CO2) sensor User manual Volatile organic particle (VOC) sensor Start the device Functions Stopping or turning off the device Automatic bypass valve (summer cooling) Control panel VE1 (new from 11.2022) Preheating and frost protection Operating modes Filter settings and reminder setting...

  • Page 3: User Manual

    Manual The user manual of the device is constantly updated. The manual may change depending on the software version of your device. You can always find the user manual for the latest software version online. When your device is connected to the Internet, you always have the latest software version.

  • Page 4: Control Panel Ve1 (New From 11.2022)

    Control panel VE1 (new from 11.2022) *The CO level and air quality display is only available on control panels with an integrated CO sensor (in the model designation -AQ ). The air quality rating provides a score for the overall exhaust air quality on a scale of 1 to 5, with 5 being very good and 1 being very bad.
  • Page 5 Remote control VE1 user manual CHOICE EXPLANATION MAIN MENU Start automatic mode. Next, the CO upper level option is displayed. Confirm by pressing OK. MANUAL Starting manual mode. Next, the ventilation speed selection is displayed on a scale of 0 to 10. Confirm by pressing OK. VENTILATION Starting the ventilation mode.

  • Page 6: Operating Modes

    Bypass mode AUTO / OFF - Bypass valve operating mode Modbus TCP OFF / ON - Home automation protocol Modbus TCP ESTONIAN / ENGLISH – language of the user interface of the control panel Language Screen NORMAL / BLACK - For the black option, the background of the screen is black and the text is white MOISTURIZING EXPERT...

  • Page 7: Bypass Valve Open Minimum Operating Speed

    Control panel VE1 Settings - Auto mode settings - Min. fan speed / Max. fan speed Mobile application Settings - Minimum Airflow Speed / Maximum Airflow Speed Bypass valve open minimum operating speed During the summer period, there may be a desire to ventilate at a higher operating speed if the outside air is cooler than the air in the room and you want to get more outside air into the rooms.

  • Page 8: Overpressure Mode (Fireplace Mode)

    1600 ppm and this is the limit from which air quality has a negative effect on humans. Working principle: Airobot ventilation devices measure the CO2 level through the exhaust pipe - the sensor is located inside the device. Thus, the device reaches a value averaged by a few from all rooms - the larger the size of the ventilated room, the more inaccurate the displayed value of the device can be compared to a specific room.

  • Page 9: Functions

    The VOC algorithm of the Airobot ventilation unit analyzes the VOC events detected by the sensor and maps them into a VOC index on a scale of 0-500. The index of volatile organic compounds shows the extent to which indoor air quality has...

  • Page 10: Filter Settings And Reminder Setting

    (air volume, air humidity, air temperature). For a heat exchanger with moisture recovery, the limit is -5°C to -7°C. The heater is controlled based on demand. The device generally works without limitation of the air volume up to -20°C outside air temperature (may vary depending on the conditions and the amount of air flow), then the device can gradually limit the air volume and, if necessary, stops temporarily.

  • Page 11: Balancing Air Masses

    Control of a geothermal preheating and cooling calorifier If your Airobot device has the optional heater control capability, you will be shown 2 functions in the "Settings - External heating and cooling" section of the mobile app: •...

  • Page 12: Mobile Application

    If possible, connect the device to the Internet. The software of Airobot devices is constantly being developed, and thus it is possible to take part in improvements and new functionalities. If you do not want to keep the device constantly connected to the Internet, it is recommended to connect the device to the Internet for at least one hour every few months - during this period, the device will automatically download the newest software.
  • Page 13 The bypass valve is open (failure) and AIrobot S - remove the right filter and visually check whether the cold air enters the supply air valve is properly closed. In case of failure, contact the dealer.

  • Page 14: User Support And Contact

    Changes to the user manual may occur due to software updates, the updated version can always be found on the help portal www.airobothome.com/abi. We are grateful for any feedback on the use of the device, features, etc. info@airobothome.com. Manufacturer information AIROBOT TECHNOLOGIES AS Reg. no. 16405978 Suur-Sõjamäe 37a, Rae vald, 75322, Estonia info@airobothome.com...
