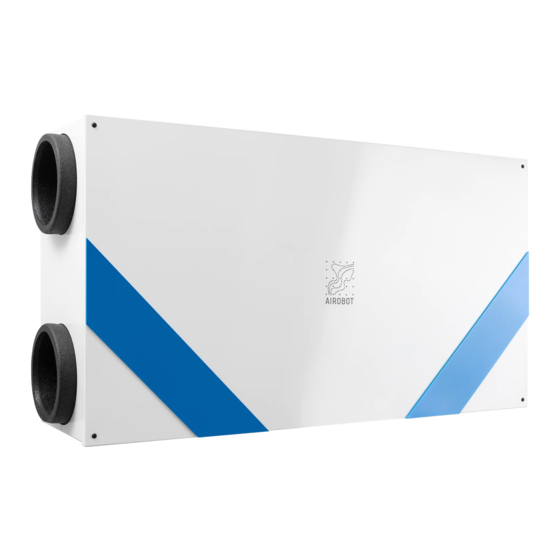

Ventilation unit Airobot L/L5/S1/S2/V3/V8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L and is the answer not in the manual?

Questions and answers

Related Manuals for Airobot L

Summary of Contents for Airobot L

  • Page 1 User manual Ventilation unit Airobot L/L5/S1/S2/V3/V8...

  • Page 2: Table Of Contents

    Air quality and sensors in the device Contents Carbon dioxide (CO2) sensor Volatile organic compunds (VOC) sensor Manual Features Starting the device Automatic bypass valve (summer cooling) Pause or turn off the device Pre-heating and frost protection Control unit VE1 (new from 11.2022) Filter settings and reminder setting Modes of operation Moisture recovery...

  • Page 3: Manual

    Manual The instruction manual for the device is constantly updated. Changes to the manual may occur depending on the software version of your device. On the web, you will always find a user manual that matches the latest software version. If your device is connected to an Internet network, you always have the latest software version.

  • Page 4: Control Unit Ve1 (New From 11.2022)

    Control unit VE1 (new from 11.2022) The VE1 control unit is only compatible with devices manufactured from 07.2021 (V02.. starting serial code on the device). If the device is older than the one produced in 2023, then it may also be necessary to update the software of the device, otherwise the remote control will give an error message that it cannot connect to the device.
  • Page 5 VE1 Control Unit User Manual CHOICE EXPLANATION MAIN MENU AUTO Start automatic mode. Next, the choice of the upper level of CO2 is displayed. Confirm by pressing OK. MANUAL Starting manual mode. Next, the choice of the rate of ventilation is displayed on a scale from 0 to 10.

  • Page 6: Modes Of Operation

    OTHER Bypass mode AUTO / OFF – bypass valve operation mode Modbus TCP OFF/ON – House Automation Protocol Modbus TCP Language ENGLISH / ENGLISH – Control Panel User Interface Language Display NORMAL / BLACK – for the black option, the screen background is black and the text is white NIISUTI EXPERT...

  • Page 7: Summer Bypass Open Minimum Operating Speed

    These settings can be selected according to preferences or preferably according to the requirements of the air flow to be designed. Control unit VE1 Settings – Automatic mode settings – Min. fan speed / Max. fan speed Mobile app Settings – Minimum airflow rate / Maximum airflow rate Summer bypass open minimum operating speed In the summer period, there may be a desire to ventilate at a higher operating speed in the event that the outside air is cooler than the air in the room and there is a desire to get more ambient air into the rooms.

  • Page 8: Boost Mode

    Principle of operation: Airobot ventilation units measure the level of CO2 through the exhaust pipe - the sensor is located inside the device. Thus, the averaged value of all rooms reaches the device by a few - the larger the size of the ventilated room, the more inaccurate the value shown by the device may be relative to a particular room.

  • Page 9: Volatile Organic Compunds (Voc) Sensor

    The VOC algorithm of the Airobot ventilation unit analyzes the VOC events detected by the sensor and maps them to a VOC index on a scale of 0-500. The VOC index shows the extent to which indoor air quality has deteriorated or improved, with the main purpose of the sensor being precisely to highlight VOC events and momentary polluters –...

  • Page 10: Pre-Heating And Frost Protection

    • CLOSED / Closed – the bypass is currently closed and heat exchange is taking place. Pre-heating and frost protection If the ambient air drops to minus degrees, under certain conditions, the heat exchanger may freeze. To avoid this, electric pre- heating is integrated into the unit, which ensures that the air entering the device from the outside is at least 0°C to -3°C.

  • Page 11: Moisture Recovery

    Control of geothermal preheating and cooling calorifer If the Airobot device has an optional calorifer control capability, then in the mobile application you will be shown 2 functions in the "Settings – External heating and cooling" section: •...

  • Page 12: Building Automation Protocol Modbus

    This allows us to provide the user with the best experience and faster assistance. In order to ensure privacy, the Airobot remote management system does not establish links between the user and the device - the helpdesk can only identify the devices by the device ID in case the user says this when contacting the helpdesk.

  • Page 13: Identifying Errors And Problems

    Identifying errors and problems MISTAKE POSSIBLE CAUSE SOLUTION Fan Alarm (Fan) Error The main reason: the engine software Unplug the device for 120 seconds and reconnect again. If the may require a reboot: error message reappears immediately, there may be a physical failure: contact your dealer.
  • Page 14 The bypass valve is open (malfunction) AIrobot S - remove the filter on the right side and visually check whether the valve is properly closed. In the event of a breakdown, and cold air escapes into the supply air contact the dealer.

  • Page 15: Support And Contact

    Due to software updates, changes may occur in the user manual, the updated version can always be found on the help portal www.airobothome.com/abi. We are grateful for any feedback on the use, characteristics, etc. of the device info@airobothome.com. Manufacturer details AIROBOT TECHNOLOGIES AS Reg. No. 16405978 Suur-Sõjamäe 37a, Rae parish, 75322, Estonia info@airobothome.com...
