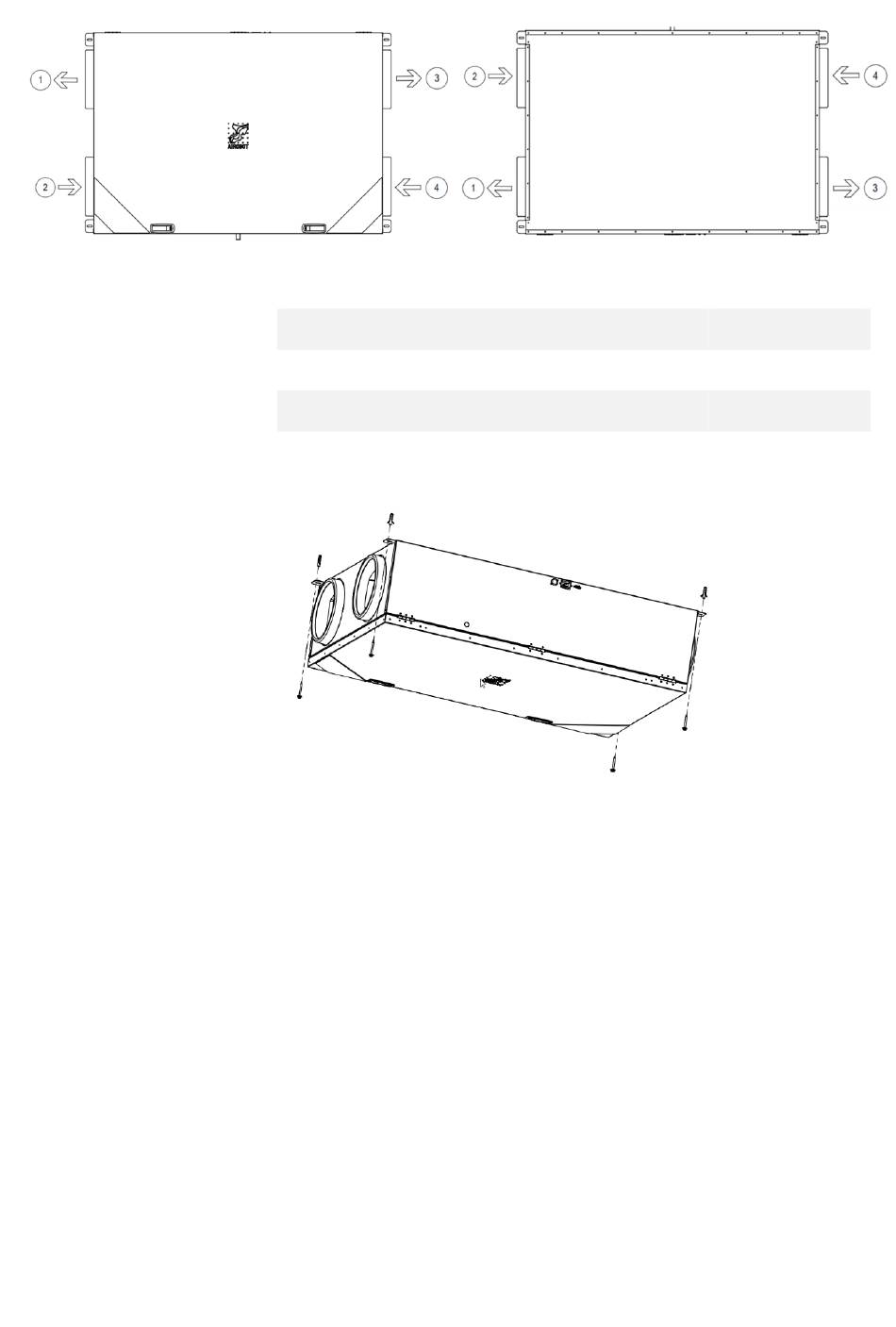

Airobot L5 ceiling mounted device in
bottom-up view
Installation on the
ceiling
The device is installed on the
ceiling with the help of
mounting corners with dowels
and screws.
When installing on the
ceiling, please note that:
●
The load-bearing
ceiling would be
strong enough.
●
used screws and
dowels would
correspond to the type
of ceiling, the screws
included in the package may not be suitable.
●
the device would remain level.
●
When installing under a suspended ceiling, the necessary space for maintenance with a service hatch must
be ensured throughout the external dimensions of the device (for example, a 1000x1200mm service hatch)
●
sufficient space would be provided for making connections between the device and the ventilation pipes.
●
Installing rubber bushings between the mounting corners and the ceiling with a screw reduces noise and
vibration to the structure
● all the mentioned points in the chapter "Important conditions to be observed when installing each Airobot
ventilation unit model" must be complied with
● The hatch of the device is not removable from the hinges. The device can be ordered with a removable
hinged hatch, for this you need to order an article in addition (900459) at the moment of order. In the case of
removable hinges, the hatch can be removed completely from the ceiling in a closed position, and there is no
need for so much free space to service the device.
Type R
1. Exhaust air
2. Ambient air
3. Supply air
4. Exhaust air
7
Airobot L5 device in top-down view
Type L
1. Supply air
2. Exhaust air
3. Exhaust air
4. Ambient air
