Security I/O Wiring

Security I/O Wiring
Security I/O wiring is covered in the following subsections:
• "Supervised Input,"
"Relay Output," page 11
•
"Digital Input," page 12
•
Supervised Input
The Remote IO Security module has eight (8) supervised inputs, on two 6-position connectors (see
Terminals are labeled SI1, GND, SI2, SI3, GND, SI4 and so on. This means when wiring, two conductors are
typically landed to each GND terminal.
Each supervised input can monitor dry contacts, either normally-open (N.O.) or normally-closed (N.C.). One
end-of-line resistor pack
shows wiring of supervised inputs SI1 and SI2 used for monitoring door position and request-to-exit.

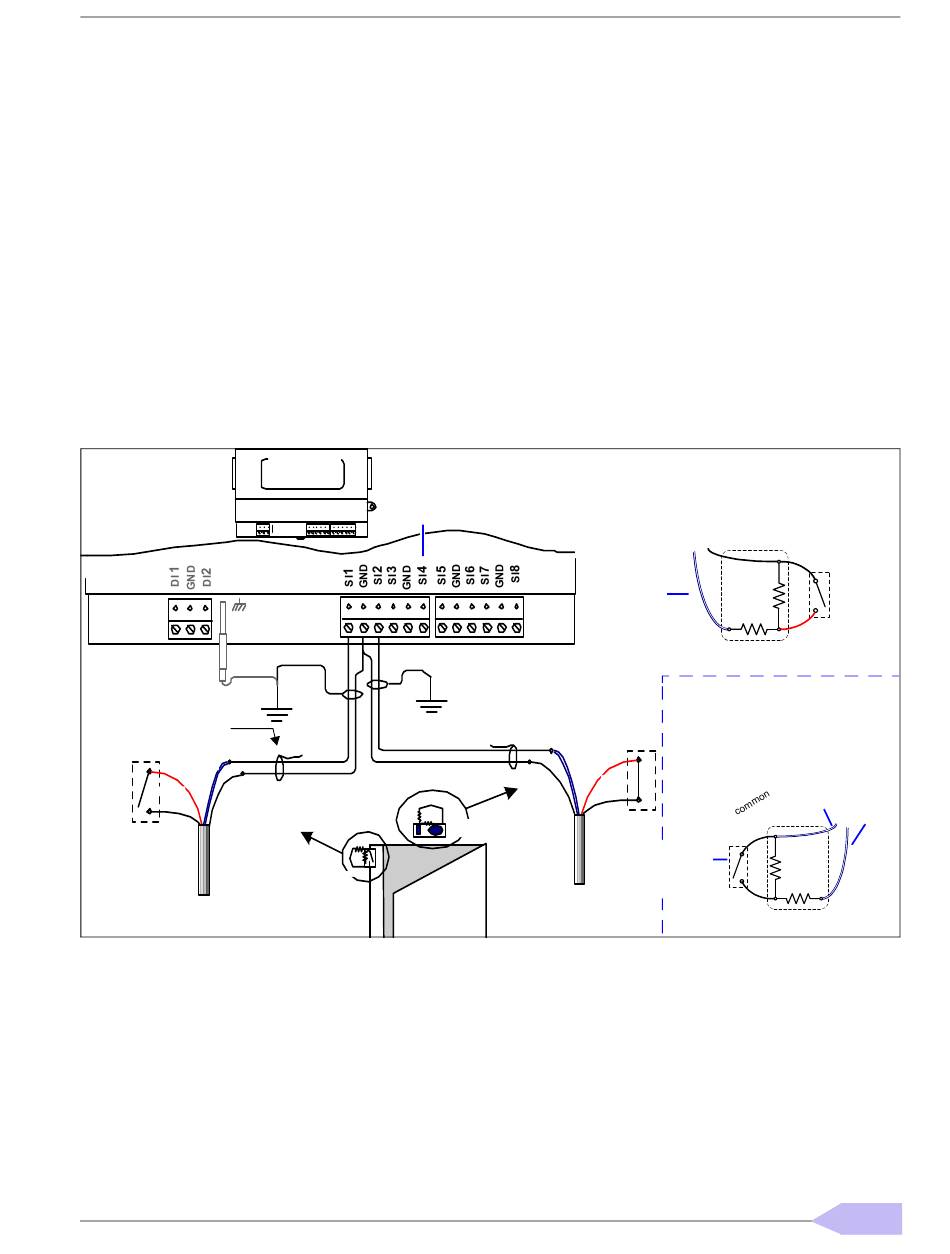

Figure 5 Supervised input wiring to Remote IO Security module.
Tape back shield at
device
White
Red
Black
Black
Normally
Open
or
Normally
Closed
Resistor Pack
(New Style)
End-of-Line Resistor Pack
You must install an end-of-line (EOL) resistor pack at the monitored device for proper operation. Eight (8) EOL
resistor packs are shipped with each Remote IO Security Module. Each resistor pack has four leads:
New style: One red, one white, two black leads. Wire as shown in
•
Old style: Two white, two black leads. Wire black leads across contacts, and wire the white lead shown
•
internally connected to the black lead (common) to the "GND" input, and the other white lead to the "SIn"
input. See the detail in lower right of
Install each EOL resistor pack as close as possible to the actual monitored switch/contacts.
Remote IO Security Module Hardware Installation Guide
Part Number 05DI-HISCRIO-22
page 9
is required at the monitored contacts for each input for proper operation.
Remote IO
Security
6-position connectors
for Supervised Inputs
Shield
Shield
Door
Monitor
Switch
Figure
Updated: January 2014
NOTE: Supplied EOL resistor packs use two internal 1K
Wire new style EOL packs (leads red, white, 2 black) as
New Style
EOL Pack
(Internal)
Normally
Open
or
Normally
Closed
White
Red
Black
Black
Request to Exit
Resistor Pack
(New Style)
Figure
5.
Supervised Input
Figure
Figure 5
ohm resistors.
shown in diagram.
Black (Old white)
White
Black
1K
Red
(Old black)
1K
NOTE: If using old style EOL packs (2 white
leads, 2 black leads), connect white that is
common with black to "GND" on controller, and
the other white to "SIn".
White
to "GND"
Black
Old Style
EOL Pack
1K
(Internal)
Black
1K
5.
5).
White
to "SIn"
White
