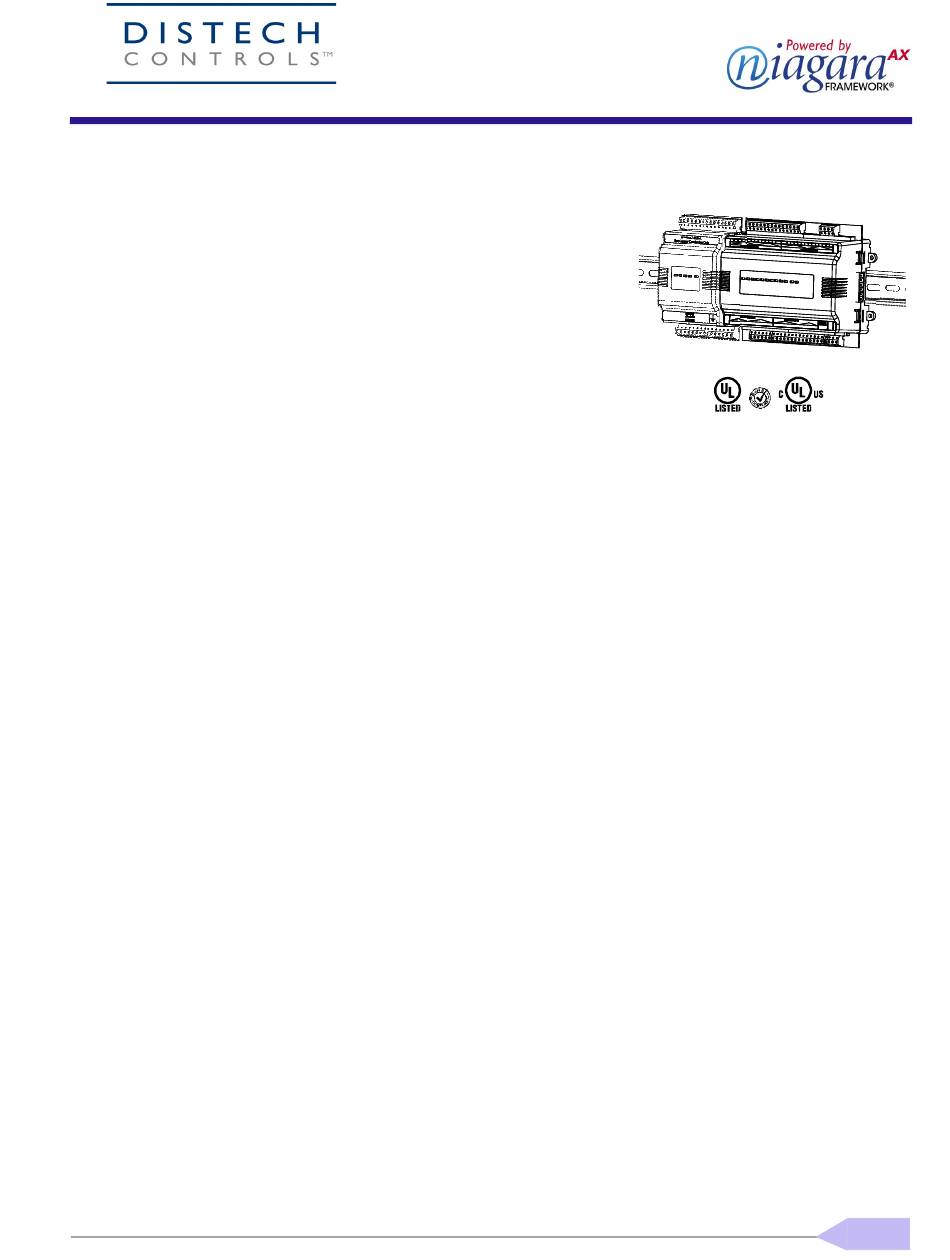

Remote IO Security Module
This document covers the mounting and wiring of Remote IO Security
Module for expanding an EC-BOS
assumes that you are an engineer, technician, or service person who is
performing access system design or installation. Please read through this
entire document before beginning the installation procedures.
These are the main topics included in this document:
•
page 2
•
page 3
•
•
•
•
•
•
•
•
•
•
•
•
•
page 23
This document does not discuss mounting and wiring of other components, or software configuration. For more
information on these topics, refer to the documents listed in the

Product Description

The Distech Controls Remote IO Security Module expands an EC-BOS
AX
EC-BOS-616
) to provide an additional 8 supervised digital inputs and 8 Form-C relay outputs. Also included
are two unsupervised digital inputs, for cabinet tamper and battery status usage.
The other type of EC-BOS
AX
EC-BOS
Security series can support a maximum of 15 expansion models, of any type in combination. Note
the Remote IO Security module has no licensing limits; thus an EC-BOS
IO Security Modules. However, "license expansion packs" are required for any EC-BOS-616
more than seven (7) Remote Reader modules, or for an EC-BOS-602
modules.
The Remote IO Security Module module uses DIN rail mounting, and has two end-mounted 6-pin connectors
that support direct-chaining (in-line attachment) to other expansion modules. Alternatively, you can mount the
Remote IO Security module onto a different DIN rail, and wire the assemblies together via 6-position connector
plugs. This allows multiple assemblies of expansion modules, either in the same or remote EC-Net
Enclosures.
