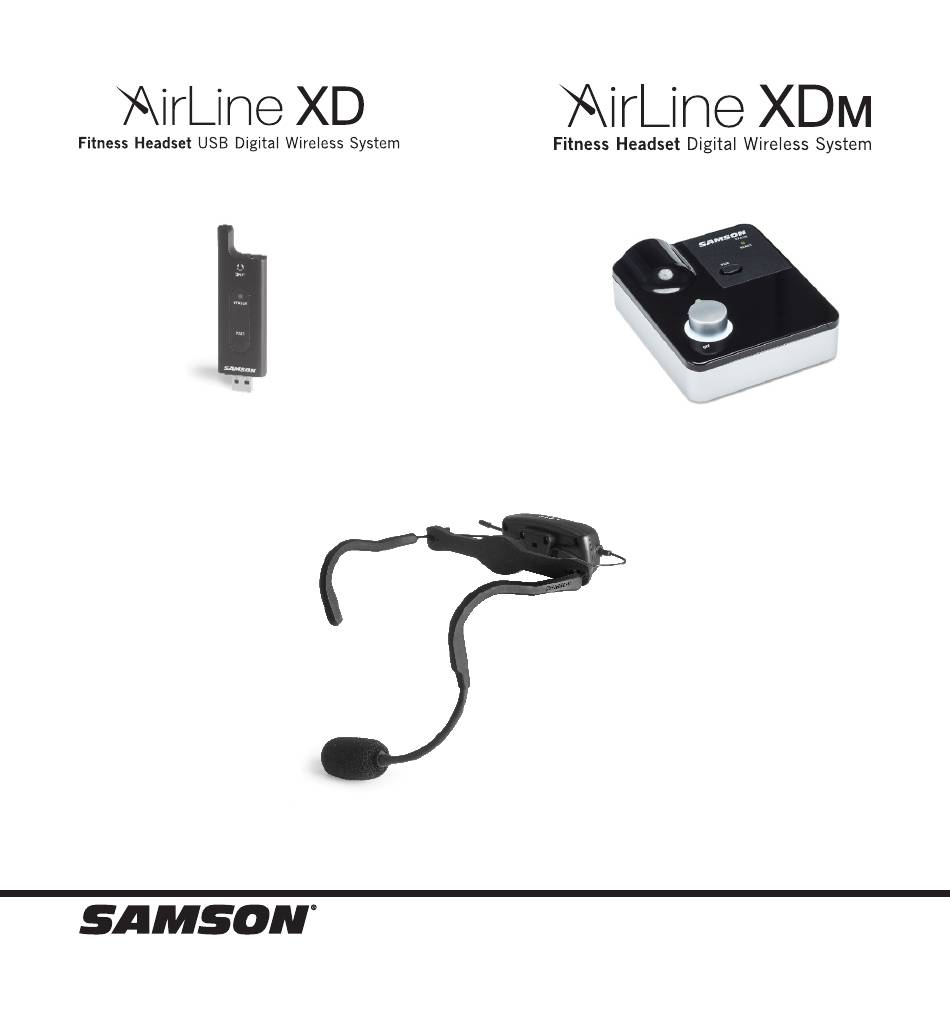

- Page 1 RXD2 Receiver RXD1M Receiver Qe Fitness Headset OWNER'S MANUAL...
- Page 2 By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2023, Samson Technologies Corp V1 Samson Technologies Corp. 278-B Duffy Ave Hicksville, NY 11801 www.samsontech.com...
-
Page 3: Important Safety Information
Important Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Important Safety Information FCC Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected.
-
Page 5: Specifications
Specifications System Simultaneous Systens Working Range 100' line of sight Working Frequency 2.404~2.476 Modulation Type GFSK Tone Key Frequency 35 kHz RXD2 USB Receiver with AHD Transmitter Frequency Response 23Hz-17kHz (+0/-1dB) 84dB (A-wt.) Re. 0dBFS for USB output Re. 0dBu for headphone output RXD1M Receiver with AHD Transmitter Frequency Response 20Hz-17kHz (+0/-3dB) - Page 6 RXD2 USB Receiver Features USB Connector - Plugs into the USB jack on the rear panel of a wirelessly enabled Samson audio device. The receiver can also plug directly into a computer USB port and will be recognized as a USB audio device.
- Page 7 RXD1m Receiver Features Rear Panel DC Input - Connect the suplied adapter here. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to your RXD1m and void your warranty. Unbalanced Outputs - Use these unbalanced 1/4” and 1/8” jacks when connecting the RXD1m to consumer (-10 dBV) audio equipment.
- Page 8 AHD Headset Transmitter Callouts Power/Pair Button - Short press to turn the unit on or off. Press and hold to enter pairing mode, green LED will flash and turn solid green when TX and RX have been paired. Status Indicator - This LED displays the operation mode, low battery and recharge status of the transmitter.
- Page 9 Wearing the AHD QE Headset Microphone As shown in the illustration, the correct way to wear your Qe fitness headset microphone, is over the ears, as you would wear a pair of eyeglasses. Because the Qe microphone is specially designed to be used up close, be sure to position the microphone directly in front of your lips.
- Page 10 Quick Start Airline XD with RXD2 Plug the RXD2 USB receiver into the USB jack on a wireless-enabled Samson audio device, or to an available USB port on a computer. Note: When using the XPD2 wireless system with a computer, you must set the computer’s audio input device to “Samson RXD Wireless Receiver”.
-
Page 11: Computer Setup
Select the XPD2 as the computer’s audio input, open System Preferences from the dock or the main Apple Menu. Next, open the Sound preferences, choose the Input tab and select “Samson RXD Wireless Receiver”. To set the gain of the microphone, adjust the Input volume slider at the bottom of the Sound dialog box. -
Page 12: Connecting To A Smartphone
Connecting to a Line Input The Airline XD wireless system can work with any audio gear that accepts a line input like a mixer or portable PA system. Follow these steps to connect your Airline XD system using the analog... - Page 13 Disconnect the magnetic power cable from the AH9 when the unit is fully charged. If you notice your AH9 battery life is becoming shorter after a full charge, you can order a user replaceable battery from your local Samson distributer. Getting the most out of the rechargeable battery: •...
- Page 14 Quick Start XDm with RXD1m In order for the Airline XDm Digital Wireless System to work correctly, both the RXD1m receiver and AHD headset transmitter must be paired together. (NOTE: The Airline XDm Digital Wireless System will come paired from the factory). Follow this basic procedure for setting up and using your Airline XDm Digital Wireless System: Physically place the RXD1m receiver where it will be used.
- Page 15 Quickstart Continued If the receiver and transmitter have not been previously paired press and hold the pair button on the RXD1m receiver for >3 seconds until the LED begins to flash (amber). Press and continue to hold the power button on the transmitter until the LED indicators on both units light steadily indicating that the receiver and transmitter are paired and ready for operation (figure 3).
- Page 16 Having Trouble with your AirLine XD or Airline XDm Digital Wireless System? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samsontech @samson_technologies Samson Technologies 278-B Duffy Ave Hicksville, NY 11801...
