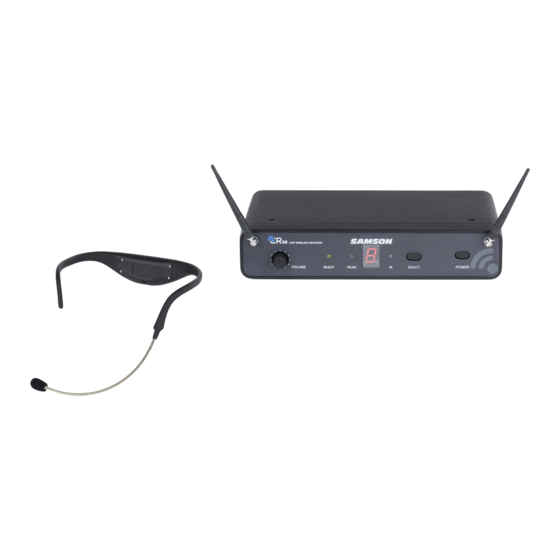

Samson Airline 88 Owner's Manual

Headset wireless system
Hide thumbs Also See for Airline 88:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Samson Airline 88

Summary of Contents for Samson Airline 88

  • Page 1 OWNER'S MANUAL...

  • Page 2: Important Safety Information

    BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND FULLY INSERT. Copyright 2016, Samson Technologies Corp. v2.2 Samson Technologies Corp. 45 Gilpin Ave Hauppauge, NY 11788 www.samsontech.com...
  • Page 3 For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. AirLine 88 Headset Wireless System...
  • Page 4 IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK *Subject to license. Please contact your national frequency authority for information on avail- able legal use in your area. Any changes or modifications not expressly approved by Samson Technologies Corp. could void your authority to operate the equipment.

  • Page 5: Quick Start

    6. Press Select button to change In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Follow this basic procedure for setting up and using your AirLine 88 Headset wireless system: Physically place the CR88 receiver where it will be used, and extend the antennas vertically.
  • Page 6 interference, and FREQ: (2) this device must accept any 542-566MHz interference received, including interference that may cause undesired operation. Quick Start Position the transmitter about 6-12” (15-30 cm) from the front of the CR88 with the transmitter’s IR window facing the IR transmitter on the front panel of the CR88 receiver.
  • Page 7 Transmitter and receiver pairs must be on the same channel plan in order to work together. When setting an additional transmitter, make sure to move all other transmitters away from the receiver to ensure that the transmitter is not accidentally reset. AirLine 88 Headset Wireless System...
  • Page 8 If you notice your AH8 battery life is becoming shorter after a full charge, you can order a user replaceable battery from your local Samson distributer. Getting the most out of the rechargeable battery: •...
  • Page 9 The headset, microphone and gooseneck should be cleaned after each use. Use clean, fresh water on a towel or clean rag, gently wiping away any contaminations that may have accumulated during use. The windscreens should be washed with clean water after each use. AirLine 88 Headset Wireless System...
  • Page 10 AH8 Headset Transmitter Callouts Power/Mute Button - Press and hold for 3 seconds to turn the unit on or off. A quick press and release will mute or unmute the transmitter when the transmitter is on. Status Indicator - This LED displays the operation mode, low battery and recharge status of the transmitter.
  • Page 11 SELECT Button - Press this button to cycle through the receiver's operating channels. Press and hold this button to send the channel information to the transmitter via infrared transmission. POWER Switch - Use this to turn the CR88 power on and off. AirLine 88 Headset Wireless System...
  • Page 12 CR88 Receiver Rear Callouts This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and FREQ: (2) this device must accept any 542-566MHz interference received, including interference that may cause undesired operation.

  • Page 13: Rack Mounting

    Note: Receivers should be mounted in the top rack position with additional audio units mounted below. Digital audio devices should be mounted as far as possible below the CR88 receivers. AirLine 88 Headset Wireless System...

  • Page 14: Channel Plans

    558.975 487.975 559.975 489.050 561.050 490.975 562.975 492.425 564.425 493.975 565.975 * Not for use in the USA and Canada. ** Not for use in the EU. For questions regarding available channels in your area contact your local Samson distributor.

  • Page 15: Specifications

    15 VDC 200mA Dimensions (LxWxH) 8.25" x 4.9" x 1.75" 210mm x 125mm x 44mm Weight 0.85lb / 388g At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. AirLine 88 Headset Wireless System...

  • Page 16: Phone: 1-800-3-Samson

    Samson Technologies 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
