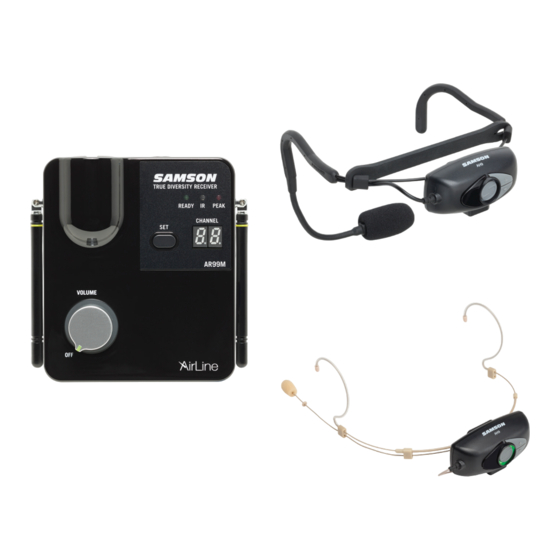

- Page 1 Headset Wireless Systems Qe Fitness Headset DE10x Headset OWNER'S MANUAL...
-
Page 2: Important Safety Information
By doing so you will ensure that your disposed product undergoes the necessary treatment, re- covery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2019, Samson Technologies Corp V1.5 Samson Technologies Corp. 278-B Duffy Ave Hicksville, NY 11801 www.samsontech.com... - Page 3 Important Safety Information FCC Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected.
- Page 4 Should your AirLine 99m System ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton.
- Page 5 (AR99m only pass power to the USB port when the power is ON). It can also be used to connect an optional Samson XPD USB Digital Wireless receiver to this input, turning the AR99m into a dual wireless system.
- Page 6 AR99m Receiver Features Rear Panel DC Input - Connect the supplied power adapter here. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the AR99m and will void your warranty. UNBALANCED OUTPUTS - Use these unbalanced 1/4” and 1/8” jacks when connecting the AR99m to consumer (-10 dBV) audio equipment.
- Page 7 AH9 Headset Transmitter Callouts Power/Mute Button - Press and hold for 3 seconds to turn the unit on or off. A quick press and release will mute or un-mute the transmitter when the transmitter is on. Status Indicator - This LED displays the operation mode, low battery and recharge status of the transmitter.
- Page 8 Wearing the AH9 Headset Microphone As shown in the illustration, the correct way to wear your Qe fitness headset microphone, is over the ears, as you would wear a pair of eyeglasses. Because the Qe microphone is specially designed to be used up close, be sure to position the microphone directly in front of your lips. To avoid feedback problems, take care not to cover the microphone capsule with your hand.
- Page 9 DE10 Headset Fitting the DE10 Headset The DE10 headset can be sized by sliding the Adjust the microphone position by holding ear hooks to fit snug around your head. If the the left ear hook wire and slide the boom DE10 is loose and will not stay in place, slide forward or back.
-
Page 10: Quick Start
Quick Start In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Follow this basic procedure for setting up your AirLine 99 wireless system: Physically place the AR99m receiver where it will be used, and extend the antennas vertically. - Page 11 Connecting XPD Wireless Plug the XPD USB receiver into the USB jack on the side of the AR99m receiver. Place a fresh set of AA (LR6) batteries in the transmitter battery holder, taking care to observe the polarity markings. Turn the AR99m receiver on by rotating the VOLUME control clockwise.
- Page 12 Disconnect the magnetic power cable from the AH9 when the unit is fully charged. If you notice your AH9 battery life is becoming shorter after a full charge, you can order a user replaceable battery from your local Samson distributer. Getting the most out of the rechargeable battery: •...
-
Page 13: Specifications
15VCC 600mA Dimensions (LxWxH) 4.3” x 3.74” x 1.5” 110mm x 95mm x 39mm Weight 0.42lb / 192g At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. AirLine 99m Wireless System... -
Page 14: Channel Plans
Channel Plans Group K 470–494MHz 470.125 474.625 479.125 483.625 488.125 470.350 474.850 479.350 483.850 488.350 470.575 475.075 479.575 484.075 488.575 470.800 475.300 479.800 484.300 488.800 471.025 475.525 480.025 484.525 489.025 471.250 475.750 480.250 484.750 489.250 471.475 475.975 480.475 484.975 489.475 471.700 476.200 480.700... - Page 15 864.300 864.150 863.900 864.750 864.600 864.350 864.200 * Not for use in the USA and Canada. ** Not for use in the EU. For questions regarding available channels in your area contact your local Samson distributor. AirLine 99m Wireless System...
