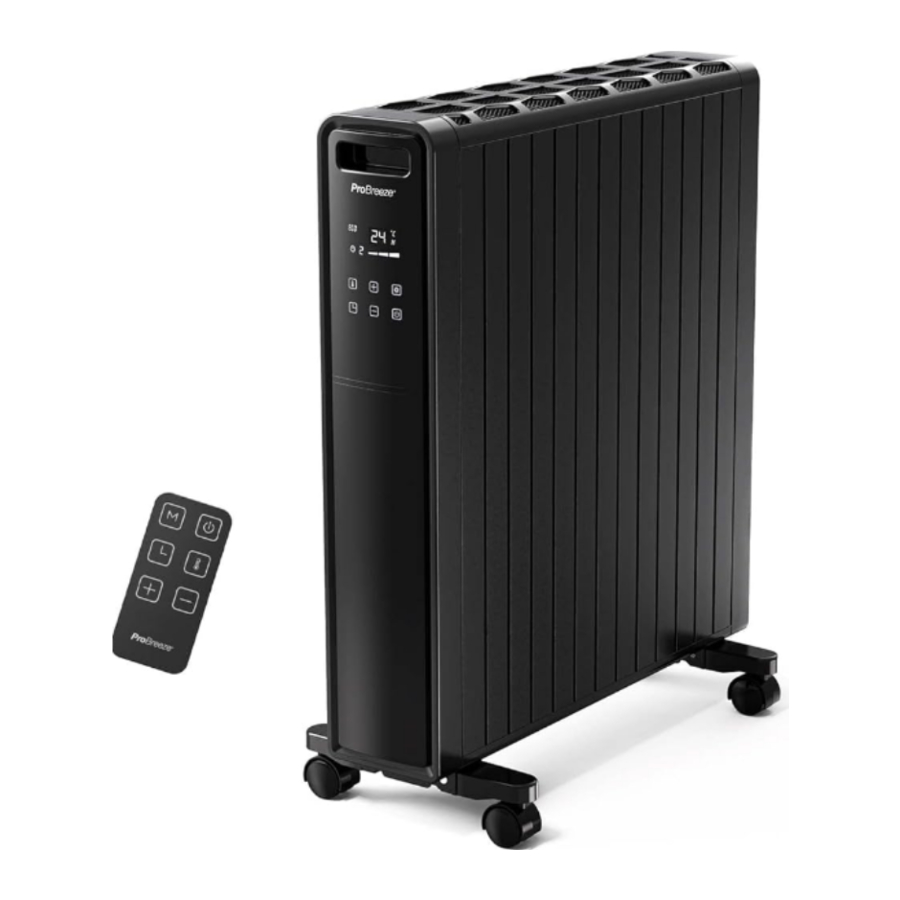

ProBreeze PB-H14 - Digital Oil-Free Radiator Manual

SPECIFICATION

• Model: PB-H14
• Voltage: 220-240V~
• Frequency: 50Hz
• Power: 2000W
• Product Dimensions: L 553 x W 260 x H 649 mm
• Net Weight: 11.7 kg

PARTS

Device

1. Heater body
2. Front handle
3. Control panel
4. Wheel base
5. Rear handle
6. On/off switch
7. Cable storage
8. Remote control storage slot

Control Panel

1. Thermostat button
2. Increase temperature/time button
3. Mode button
4. Timer button
5. Decrease temperature/time button
6. Stand-by mode button

Remote Control

1. Mode button
2. Stand-by mode button
3. Timer button
4. Thermostat button
5. Increase temperature/time button
6. Decrease temperature/time button

Note:

• The heater can be controlled by both the remote control and the control panel.
• A 'beep' emits from the control panel or remote control every time a button is pressed. To mute this sound, hold down the increase and decrease buttons for five seconds. Repeat to turn the 'beep' sound back on.
• The remote can be stored in the 'remote control storage slot' when not in use.

OPERATING INSTRUCTIONS

Assembly

• Turn the body of the heater upside down on a scratch resistant and stable surface.
• Place the foot bases over the holes on each side of the heater.
• Fix the foot bases in place by screwing in four screws on each side.

Turning the unit on and off

• Plug the heater in to the wall and flip the on/off switch to turn the heater on. The heater is now in stand-by mode and the stand-by button and timer button will light up.
• Press the stand-by button. The appliance will emit a 'beep', the rest of the buttons will light up and the appliance is ready for use. When the heater turns on, it will be on its highest power setting.
• To turn the heater off, press the stand-by button. The heater will return to standby mode and the control panel screen will turn off.
• Flip the on/off switch to turn the heater off completely.

Adjusting the heat settings

• Press the mode button to cycle through the power modes of high , medium , low , and eco mode.
• In eco mode, the 'ECO' display will be lit up and the heater's power will automatically adjust to keep the room at the temperature that has been set as the thermostat setting. When the set temperature has been reached, the heater will turn off. When the room temperature drops below the set temperature, it will turn back on again.

Adjusting the thermostat settings

Note:

• If you don't set the thermostat, in eco mode the default thermostat temperature is 23℃.
• If you set the thermostat temperature, the heater will be in eco mode regardless of the power setting you choose.
• The thermostat temperature setting range is between 10°C and 30°C.

To set the heater's thermostat, follow the below steps:

• Press the thermostat button. The temperature display will start blinking.
• Use the increase and decrease buttons to set your desired temperature.
• The temperature display will stop blinking and the chosen temperature will appear on screen. The heater will maintain the temperature in the room by switching on and off automatically.

Setting the timer

To set a timer for the heater to automatically turn on, follow the below steps:

• While the heater is in stand-by mode, press the timer button. The display will flash '0.0'.
• Use the increase and decrease buttons to set a time between 1 and 24 hours. The time will increase in 0.5 hour increments until it reaches 5 hours, and then it will increase by 1 hour increments, until it reaches 24 hours.
• The timer button will blink until the time is set. The number of hours remaining will show on the display.
• The heater will automatically turn on when the heater display reaches '0.0' again.

To set a timer for the heater to automatically turn off, follow the below steps:

• While the heater is on, press the timer button. The display will flash '0.0'.
• Use the increase and decrease buttons to set a time between 1 and 24 hours. The time will increase in 0.5 hour increments until it reaches 5 hours, and then it will increase by 1 hour increments, until it reaches 24 hours.
• The heater will automatically turn off when the heater's display reaches '0.0'.

Your Product's Safety Guards

• Your heater will automatically turn off when it is not upright. This is to prevent damage to your home and your heater will turn back on when it is in its normal upright position.
• Your heater will automatically turn off when the appliance has overheated. This may be because there is something covering the heater. Unplug the appliance and wait 30 minutes for it to cool. If there is no damage to the unit, cord, or plug, plug the unit back in and use as normal.

CLEANING

ALWAYS TURN THE HEATER OFF, UNPLUG THE POWER CORD FROM THE ELECTRICAL OUTLET AND ALLOW THE HEATER TO COMPLETELY COOL DOWN BEFORE HANDLING OR CLEANING IT.

ALLOW THE HEATER TO COOL DOWN FOR 2 HOURS (240 MINUTES) BEFORE CLEANING.

DO NOT ALLOW WATER OR OTHER LIQUIDS TO RUN INTO THE INTERIOR OF THE APPLIANCE, AS THIS COULD CREATE A FIRE AND/ OR ELECTRICAL HAZARD.

DO NOT USE ANY ABRASIVE CLEANERS OR SOLVENTS, AS THIS CAN DAMAGE THE HEATER.

• Do not attempt to clean the appliance in any other way than that detailed by the manufacturer.

Your appliance should be cleaned regularly, following the below instructions:

• Unplug the appliance and let cool before cleaning.
• Gently clean the outside surface and the control panel with a damp, lint-free cloth.
• Clean the vents of the appliance with a vacuum cleaner and the brush attachment to avoid dust build-up.

STORAGE

• To store your product out of season, we recommend using the original or similar size box.
• Store in a clean, dry place away from direct sunlight. Place out of reach of children.

SAFETY INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

DO NOT COVER THE HEATER.

TO AVOID THE RISK OF ELECTRICAL SHOCK, FIRE OR INJURY TO PEOPLE, ALWAYS MAKE SURE THE HEATER IS UNPLUGGED FROM THE ELECTRICAL OUTLET BEFORE RELOCATING, SERVICING, OR CLEANING IT.

DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

TO REDUCE THE RISK OF FIRE, KEEP TEXTILES, CURTAINS, OR ANY OTHER FLAMMABLE MATERIAL A MINIMUM DISTANCE OF 1M FROM THE AIR OUTLET.

THE HEATER WILL BECOME VERY HOT DURING USE AND CAN CAUSE BURNS. DO NOT TOUCH HEATED PARTS OF THE HEATER WITH BARE SKIN DURING USE OR IMMEDIATELY AFTER THE HEATER HAS BEEN SWITCHED OFF. ALLOW THE HEATER TO THOROUGHLY COOL DOWN BEFORE HANDLING OR CLEANING. USE HANDLE WHEN MOVING THE UNIT. USE GLOVES OR OVEN MITTS TO AVOID SERIOUS INJURY.

•
  Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to person.
• There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
• The heater is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• The heater must have a minimum 50cm clearance around all sides of the heater.
• Only operate the heater in an upright position with both foot bases attached.
• Children must be supervised not to play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not leave children alone or unattended in the area where the heater is in use.
• Cleaning and user maintenance shall not be made by children unless continuously supervised.
• Place the heater on a flat, stable, heatresistant surface and always keep the heater in an upright position. Operating the heater in any other position could cause a hazard.
•
  Do not cover, obstruct or push objects into the vents and opening of the heater as this may cause an electric shock, fire or damage the heater.
• Do not use this heater to dry or heat clothes.
• Ensure the heater is not located immediately below a socket-outlet.
• Never place anything on top of the heater.
• Do not operate the heater with wet hands.
• Do not use this heater near water or in the immediate surroundings of a bath, shower or a swimming pool. Never place the heater where it may fall into a bathtub or other water container.
•
  Do not allow water or other liquids to run into the interior of the heater, as this could create a fire and/or electrical hazard.
• This heater is intended for indoor household use and similar applications. Do not use outdoors.
• Never leave the heater unattended while in use. Always turn the heater off and disconnected from the power supply when not in use.
• Do not use the heater while sleeping or place it near a person who is sleeping.
• Always turn the heater OFF, unplug the power cord from the electrical outlet and allow the heater to completely cool down before handling or cleaning it.
• Avoid placing the power cord in areas where it can become a tripping hazard. Do not place the power cord under carpeting or cover it with rugs, runners or similar.
• To avoid a circuit overload when using this heater, do not operate another high-wattage appliance on the same electrical circuit.
• Always plug the heater directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of fire.
• Do not use this heater with an external programmer, timer switch or any other device which would switch the heater on automatically unless this has already been pre-built into the heater by the manufacturer.
• Do not pull on the power cord. Never move, carry, or hang the heater by the power cord.
• Do not kink or wrap the power cord and plug around the heater, as this may cause the insulation to weaken or split, particularly where it enters the appliance.
• Ensure the mains cable is fully extended before use and arrange it so that it is not in contact with any part of the heater.
• The heater should not be used in a room, of which the floor area is less than 5m².
• Only use this appliance in a wellventilated area.
• Do not operate the heater with any safety guards removed.
• Do not operate the heater if there are signs of damage to the heater, power cord, or any of the accessories supplied. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• Do not attempt to repair or adjust any electrical or mechanical elements in the heater. Doing so may be unsafe and will void your warranty.
• Ensure that the mains supply (including voltage, frequency and power) complies with the rating label of the heater.
• Do not use the heater near petrol, paints, flammable gases, ovens, or other heating sources.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.

BATTERY SAFETY INSTRUCTIONS

This product is supplied with Button Cell - CR2025 Li-ion disposable batteries.

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

BATTERY WARNING: KEEP OUT OF REACH OF CHILDREN

Choking hazard. Do not swallow. Harmful if swallowed. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• This product only uses a Button Cell - CR2025 Li-ion battery. It is not compatible with other battery types.
• Do not allow children to handle batteries.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• Ensure that the battery is installed with the correct polarity (+ and –).
• Remove exhausted battery promptly.
• Always inspect new batteries before use.
  Damaged or weak batteries may leak acid. Discontinue use if batteries show signs of leakage, damage, or weakness at any time.
• Ensure the battery compartment is correctly and securely closed after installing the batteries.
• Wash hands after handling batteries.
• Disposable batteries are not rechargeable and must be recycled or disposed of separately from household waste. Always dispose of batteries at an official collection point and according to your local environmental laws and guidelines.
