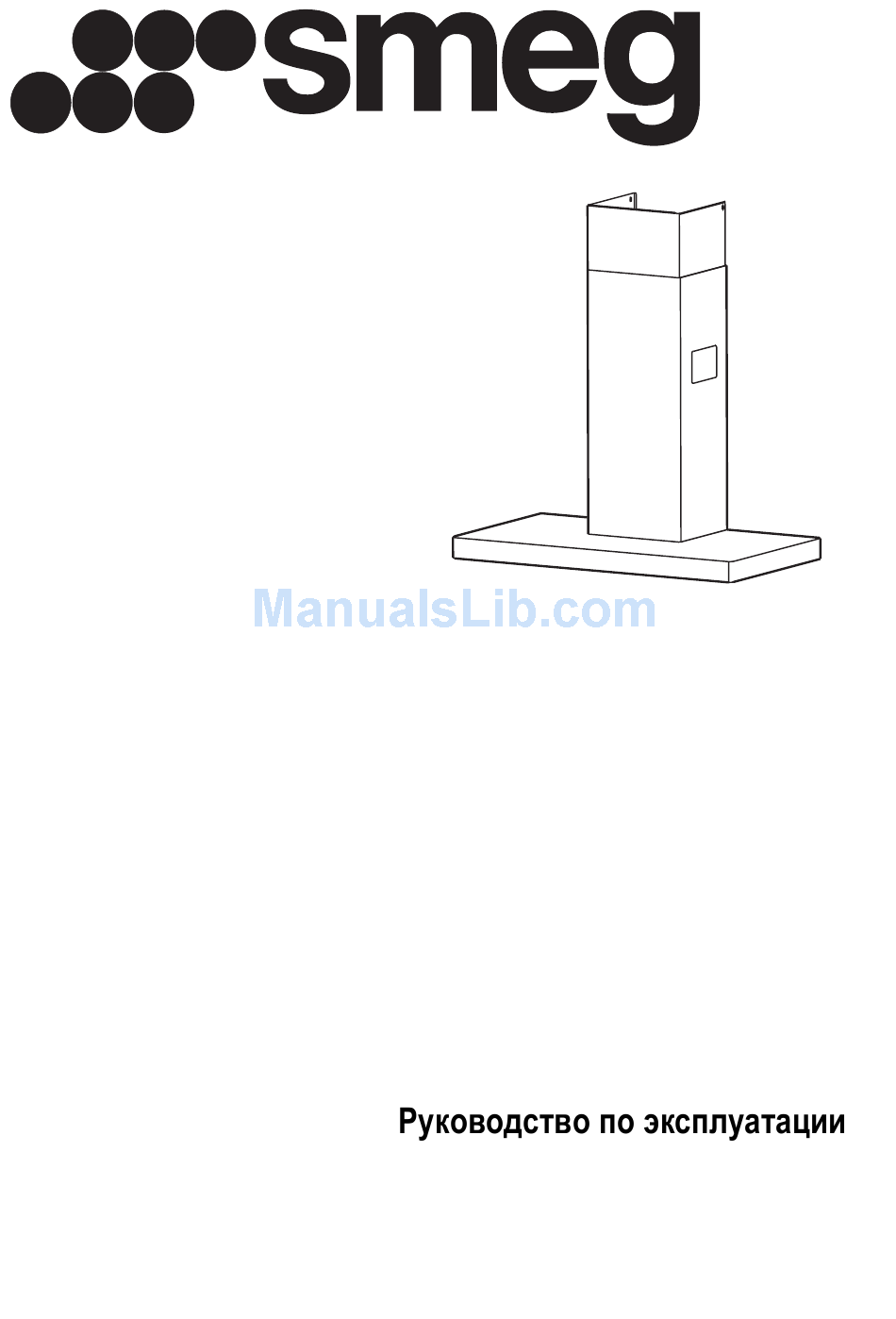

- Page 1 Libretto di Istruzioni Manuel d’Instructions Instructions Manual Gebruiksaanwijzing Bedienungsanleitung Bruksanvisning Manual de instrucciones Manual de Instruções KSE951X - KSE912X – KSE912NX...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI ...4 CARATTERISTICHE ...5 INSTALLAZIONE...6 USO ...9 MANUTENZIONE ...10 SOMMAIRE CONSEILS ET SUGGESTIONS ...12 CARACTERISTIQUES ...13 INSTALLATION ...14 UTILISATION...17 ENTRETIEN...18 INDEX RECOMMENDATIONS AND SUGGESTIONS ...20 CHARACTERISTICS...21 INSTALLATION ...22 USE...25 MAINTENANCE...26 INHOUDSOPGAVE ADVIEZEN EN SUGGESTIES ...28 EIGENSCHAPPEN...29 INSTALLATIE ...30 GEBRUIK...33 ONDERHOUD ...34 INHALTSVERZEICHNIS...
- Page 3 ÍNDICE CONSEJOS Y SUGERENCIAS ...52 CARACTERÍSTICAS ...53 INSTALACIÓN...54 USO ...57 MANTENIMIENTO...58 ÍNDICE CONSELHOS E SUGESTÕES ...60 CARACTERÍSTICAS ...61 INSTALAÇÃO ...62 UTILIZAÇÃO...65 MANUTENÇÃO ...66 ...68 ...69 ...70 ...73 ...74...
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord- ingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from in- correct or improper installation. - Page 5 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm Damper 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Wall Plugs Screws 4,2 x 44,4...
- Page 6 INSTALLATION Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
- Page 7 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten the support screws 12a. • Adjust the screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the...
- Page 8 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
- Page 9 Function Switches the motor on and off at the latest selected speed Decreases the suction speed. Increases the suction speed. By pressing this key it is possible to start the intensive speed from any previously selected speed. This speed has been timed at 10 min- utes.
- Page 10 MAINTENANCE Metal grease filters Filters can be washed in the dish machine. They need to be washed when FF-sign appears on the display or in any case every 2 months, or even more frequently in case of particularly inten- sive use of the hood. Alarm reset •...
- Page 11 Charcoal filter (recycling version This filter cannot be washed or regenerated. It has to be replaced when the EF appears on the display or at least once every 4 months. Activation of the alarm signal • In the recycling version hoods the filter saturation alarm has to be activated during the in- stallation or later.
